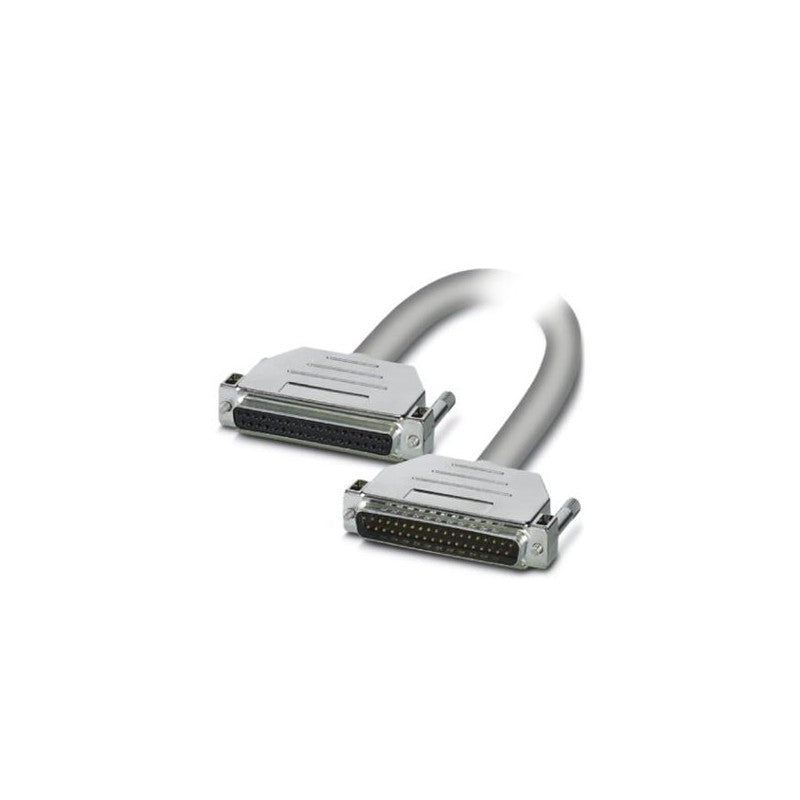

Phoenix Contact · Connection Cable
2302230 is a Phoenix Contact connection cable with Rated current Ie up to 4 A; Enclosure rating IP67 (IEC 60529); Operating temperature -25...+80 °C (IEC 60068-2-1). It is used in control panels, machine builds, spare-part replacements where the installed unit is matched to the original catalog number and a compact, documented part is required.
| Electrical | |
| Rated current Ie | up to 4 A |
|---|---|
| Rated torque | 0.2 Nm |
| I/O and communication | |
| Flame detection | IEC 60332-1-2 (raw cable) |
| Mechanical | |
| Weight | 717 g |
| Terminal wire size | Assembled shielded round cable |
| Enclosure rating | IP67 (IEC 60529) |
| Environment and compliance | |
| Operating temperature | -25...+80 °C (IEC 60068-2-1) |
| Certifications | CE, UL, cULus |
| Degree of protection | ≥ IP54 (Installation location) |
Values follow the Phoenix Contact Connection Cable specification for this catalog number; parameters not confirmed for this variant are omitted rather than estimated.
| Phoenix Contact Connection Cable variants | |||
| Catalog number | Rated current Ie | ||
|---|---|---|---|
| 2302230 (this page) | up to 4 A | ||
| 2302201 | up to 4 A | ||
| 2302214 | up to 4 A | ||
| 2302227 | up to 4 A | ||
Before selecting an alternative, confirm its dimensions, terminals and installation requirements in the manufacturer documentation.
The 2302230 is the device-level element in a Phoenix Contact connection cable installation. It receives the field signals and control supply listed above — the rated supply — and switches or conditions the load within the up to 4 A ratings shown in the Specifications table. Wiring and protective devices are sized to those same numbers, not to a generic assumption.
Typical installations place it in control panels, machine builds, spare-part replacements, where the unit is matched to the original catalog number and the enclosure provides standard panel or DIN-rail support. Record the catalog number and revision from the nameplate of the installed unit before specifying a like-for-like spare.
Phoenix Contact 2302230 — Industrial automation component supplied as a like-for-like replacement, selected by catalog number and published ratings. The figures below are taken from the specification table on this page for catalog number 2302230; record the nameplate data of the unit being replaced before selecting an equivalent.
Datasheets and compliance documents are available on request; quote the full catalog number when enquiring.
Q.Where can I find the enclosure rating data for 2302230?
It is listed in the specification table for Phoenix Contact 2302230 as IP67 (IEC 60529). Confirm this figure against the unit currently in the panel.
Q.For 2302230, what does the specification table state about weight?
The specification table lists weight = 717 g for Phoenix Contact 2302230. Use the value as the reference when sourcing a current-production equivalent.
Q.Which value is published under terminal wire size for catalog number 2302230?
For 2302230, terminal wire size is given as Assembled shielded round cable. Check the revision of the installed unit if the catalog number has been superseded.
Q.What should I include in an enquiry for 2302230?
Send the full catalog number 2302230, the required quantity and a photo of the nameplate. Stock, lead time and the applicable compliance documents can then be confirmed for Phoenix Contact 2302230.
Q.How do I confirm compatibility of 2302230 before ordering?
Match the catalog number 2302230 and the specification values listed above against the installed unit, then confirm the firmware or hardware revision where a revision-sensitive part is involved.
