Standard coded magnetic actuator · for PSEN sl-0.5p 500 N safety gate systems · passive, no electronics · 138 x 52 x 23 mm

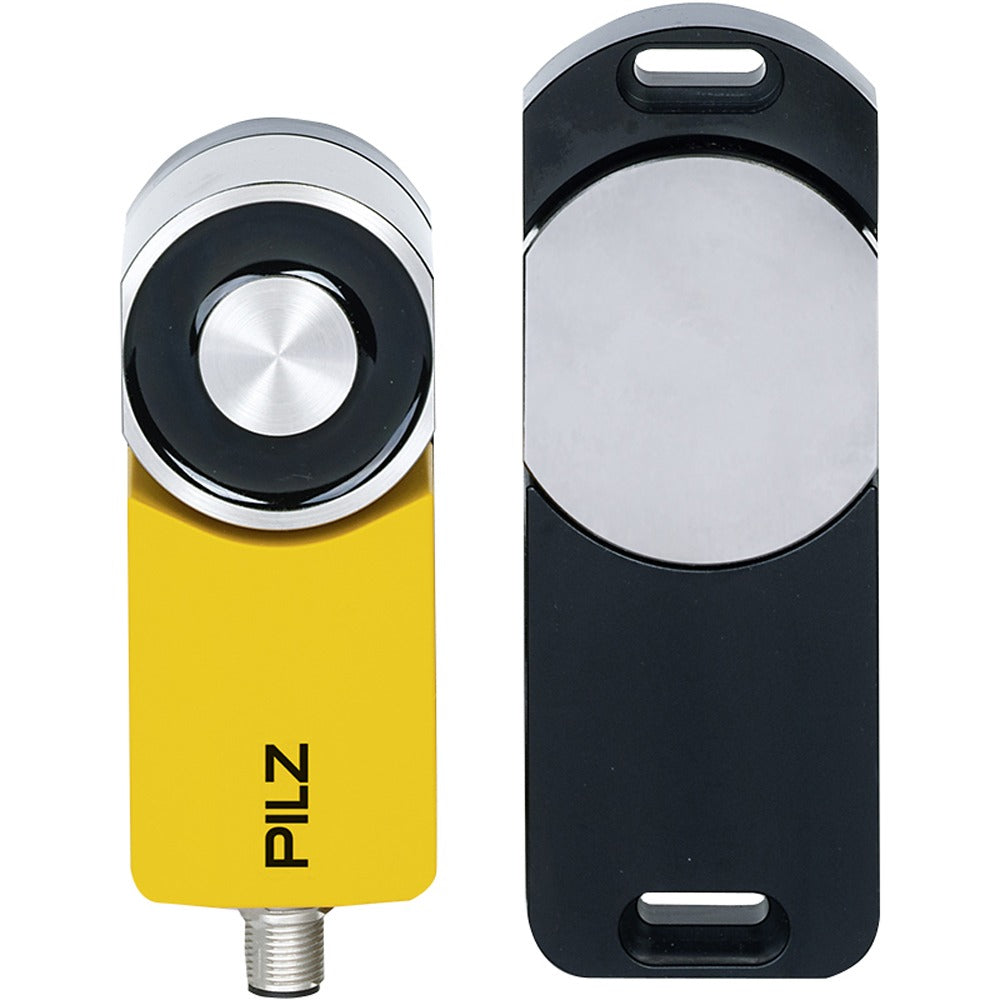

The Pilz 570520 (PSEN sl-0.5 1.1) is the standard actuator for the PSENslock 0.5 family magnetic safety gate systems. It is the coded trigger fitted to the moving safety gate; the PSEN sl-0.5p sensor detects it when the gate is closed and energises the 500 N magnetic guard locking. It is a passive mechanical/magnetic part with no electronics and no wiring, ordered separately when the sensor is purchased as a 1switch unit or as a spare / replacement actuator.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
570520
| Matching sensors | PSEN sl-0.5p 1.1 / 2.1 / 2.2 (order nos. 570500, 570501, 570502, 570510) |
|---|---|
| Free-moving variant | PSEN sl-0.5fm (order no. 570522) for greater tolerance compensation |
| Scope of delivery | 1 standard actuator; mounting hardware per device |
| Mechanical | |
|---|---|
| Type | Standard coded actuator |
| Dimensions | 138 x 52 x 23 mm (approx.) |
| Mounting | To moving gate / 45 mm profile |
| Wiring | None |
| System data | |
|---|---|
| System holding force | 500 N (in sensor) |
| Vertical offset | +/- 3 mm |
| Lateral offset | +/- 5 mm |
| Detection | By PSEN sl-0.5p sensor |
| Performance level (PL) | Up to PL e (with sensor) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL CL 3 (IEC 62061) |
| Coding (EN ISO 14119) | Coded (low) |
| Function | Passive magnetic trigger |
|---|---|
| Mechanical life | Wear-free |
| Mounting | Gate / profile |
| Note | Actuator only — sensor ordered separately |
| Dimensions | 138 x 52 x 23 mm |
|---|---|
| Material | Plastic / magnetic steel plate |
| Degree of protection | IP67 |
| Mounting | Screwed to gate |
| Ambient temperature | -10 … +55 °C |
|---|---|
| Vibration / shock | Per EN 60068-2 series |
| Use | Swing / sliding gates, covers, flaps |
| Approvals / certifications | CE · EAC (Eurasian) · TÜV · cULus Listed · UKCA |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 · EN ISO 14119 · EN 60947-5-3 |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) |
| General standards | EN 60204-1 · EN ISO 12100 |
