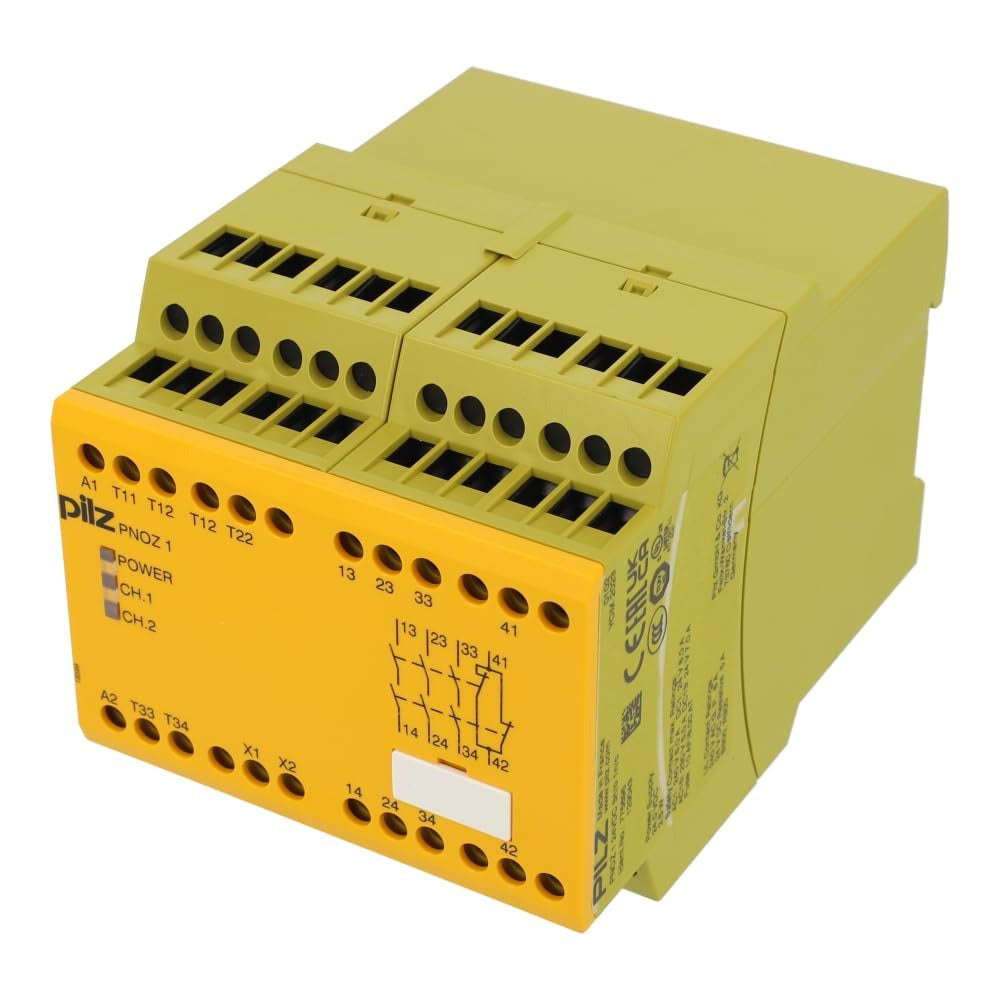

Pilz 775695 Safety Relay

SKU: 775695
(0)
$469.30
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
775695 — PNOZ 1 24 V DC safety relay, 3 N/O + 1 N/C, 90 mm width
PNOZ classic  |  standalone safety relay  |  E-stop / safety gate monitor

775695 — PNOZ 1 Safety Relay

Classic standalone safety relay · 3 safety N/O + 1 auxiliary N/C · 24 V DC · 1-/2-channel E-stop and safety-gate monitoring · 90 mm width

Safety contacts: 3 × N/O Auxiliary: 1 × N/C Supply: 24 V DC Width: 90 mm Safety: PL e / Cat. 4 / SIL CL 3 Terminals: Screw

Overview & Function

The Pilz 775695 (PNOZ 1, 24 V DC, 3 N/O + 1 N/C) is a classic standalone safety relay from the long-established PNOZ range. It safely switches off actuators when an emergency-stop pushbutton or safety gate is actuated. It supports 1- or 2-channel wiring without detection of shorts across contacts, with automatic or monitored manual start and an integrated feedback (reset) circuit. The unit is widely used for E-stop circuits, safety gate monitoring and simple machine safety applications.

Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Key Ratings at a Glance

Safety N/O contacts
3 force-guided
Auxiliary N/C contacts
1 signal
Supply voltage
24 V DC
Contact current
8 A max.
Input channels
1 / 2 selectable
Width
90 mm
Net weight
0.50 kg
Mounting
DIN rail 35 mm

I/O Channel Map & Safety Function

3
Safety N/O
Force-guided instantaneous contacts for safe actuator shutdown
1
Auxiliary N/C
Signal contact for status / fault indication
1
Input circuit
E-stop / safety gate, 1- or 2-channel wiring
1
Feedback loop
X1–X2 / T33–T34, with start button monitoring
3
LEDs
POWER, CH.1, CH.2 supply and channel status
1
Start mode
Automatic / monitored manual start selectable
Safety performance: up to PL e (EN ISO 13849-1), Category 4 and SIL CL 3 (IEC 62061 / IEC 61508), depending on wiring and connected sensors. The internal force-guided contact set is monitored for welded contacts on every on/off cycle.

Order Number Breakdown

775695

775PNOZ classic standalone relay family
695PNOZ 1, 24 V DC, 3 N/O + 1 N/C, screw terminals, 90 mm
Sibling variants 775695 = PNOZ 1 24 V DC (this unit) · 775630 = PNOZ 1 110–120 V AC · 775650 = PNOZ 1 230–240 V AC
Monitored functions Emergency-stop pushbuttons, safety gate limit switches, two-channel sensor circuits
Scope of delivery Device with integrated screw terminals, ready for DIN-rail mounting

Power Supply & I/O Data

Supply voltage UB 24 V DC
Voltage tolerance −20 % / +20 % (per EN 60204-1)
Power consumption Typ. 3.5 VA / 2 W
Duty cycle 100 %
Fusing External short-circuit protection per EN 60204-1
Safety output contacts 3 × N/O, force-guided, instantaneous
Auxiliary contact 1 × N/C, instantaneous
Utilisation category AC-15 at 230 V, max. 5 A; DC-13 at 24 V, max. 5 A
Input circuit 1-/2-channel wiring, no cross-fault detection across contacts
Feedback circuit Via T33–T34 with monitored or unmonitored start

Safety Characteristics

Performance level (PL) Up to PL e (EN ISO 13849-1)
Category Up to Category 4
SIL / SIL CL Up to SIL CL 3 (IEC 62061) / SIL 3 (IEC 61508)
Reset types Automatic / monitored manual start
Start-up current Typ. 3 A pulse, 500 ms
Response time Typ. ≤ 30 ms (contact)
Sensor types E-stop pushbutton, safety gate switch
Self-monitoring Force-guided contact test every cycle

Mechanical & Environmental Data

Dimensions W × H × D 90 × 87 × 121 mm
Net weight 0.50 kg
Mounting DIN rail (35 mm), any mounting position
Terminal type Integrated screw terminals
Degree of protection IP40 (housing), IP20 (terminals)
Ambient temperature, operation −10 … +60 °C
Ambient temperature, storage −40 … +85 °C
Relative humidity ≤ 95 %, non-condensing
Vibration / shock Per EN 60068-2-6 / EN 60068-2-27
Indicator LED: POWER, CH.1, CH.2

Compliance, Approvals & Standards

Approvals / certifications CE · cULus Listed · TÜV · EAC · CCC
Functional safety standards EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · EN 60204-1
EMC standards EN 61000-6-2 (immunity) · EN 61000-6-4 (emission)
General standards EN 60947-5-1 · VDE 0113-1
