Wide-range supply 24 – 240 V AC/DC · 3 N/O safety + 1 N/C auxiliary · 1-/2-channel E-stop / gate · 22.5 mm

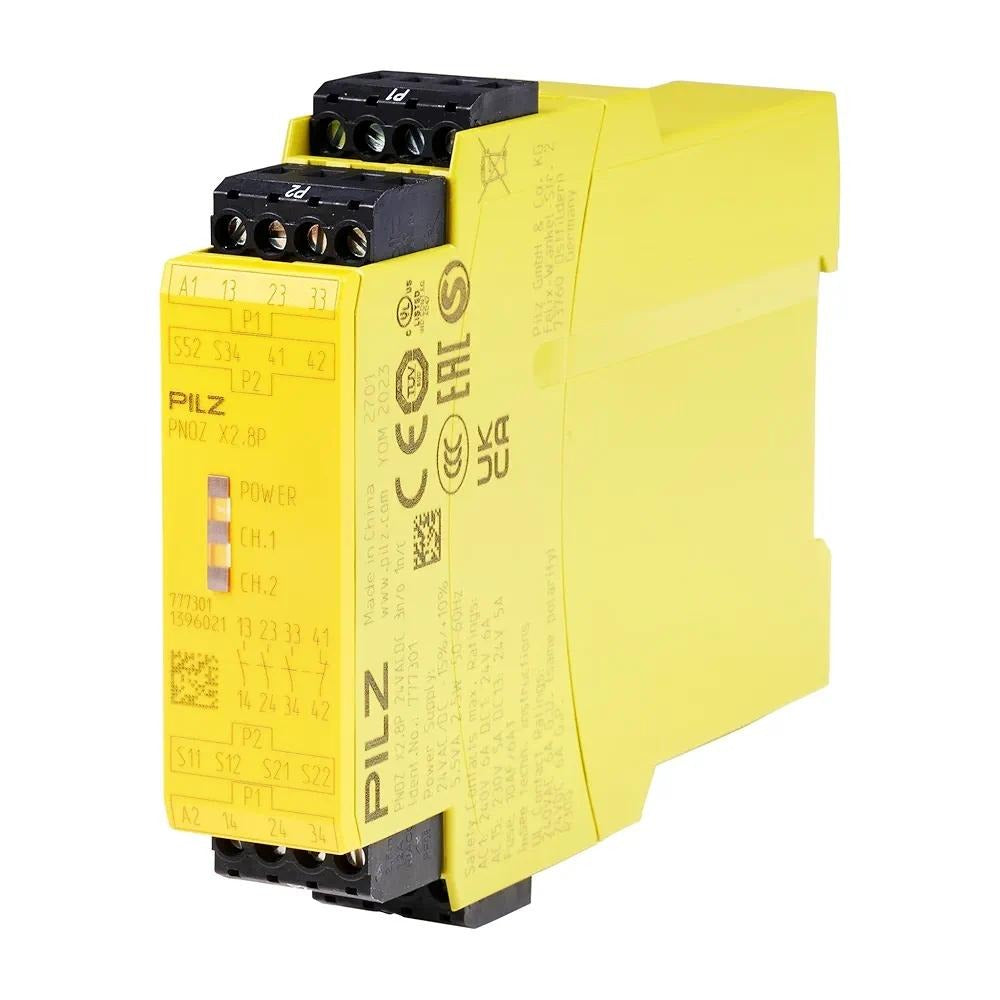

The Pilz 777302 (PNOZ X2.8P) is a wide-voltage-range PNOZ X safety relay. It accepts any supply between 24 and 240 V AC/DC, simplifying spares holding across machines with different control voltages. Three positively guided N/O safety contacts plus one N/C auxiliary monitor E-stop pushbuttons and safety gates with 1- or 2-channel wiring. The 'P' version uses plug-in screw terminals for fast wiring.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
777302
| Sibling models | 777302 = PNOZ X2.8P 24–240 V AC/DC, screw plug-in terminals (this unit) · 787302 = spring-loaded terminal version |
|---|---|
| Scope of delivery | PNOZ X2.8P safety relay, plug-in screw terminals, DIN-rail mounting, operating instructions |
| Power supply | |
|---|---|
| Supply type | AC/DC, wide-range |
| Nominal supply voltage | 24 – 240 V AC/DC |
| Voltage tolerance | −15 % / +10 % |
| Power consumption | ~4.5 VA (AC) / ~2.5 W (DC) |
| Frequency range | 50 – 60 Hz (AC) |
| Inputs & outputs | |
|---|---|
| Safe inputs | 1-/2-channel, with cross-fault detection |
| Safety outputs | 3 × N/O force-guided, 250 V AC / 6 A |
| Auxiliary output | 1 × N/C |
| Feedback loop | Y1-Y2 |
| Terminal type | Plug-in screw terminals |
| Performance level | Up to PL e (EN ISO 13849-1) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL 3 / SIL CL 3 |
| Reset types | Automatic / manual / monitored |
| Response time | Typ. ~20 ms |
|---|---|
| Diagnostic coverage | Up to 99 % |
| Sensor types | E-stop, safety gate, light curtain |
| Cross-fault monitoring | On, dual-channel |
| Dimensions W × H × D | 22.5 × 94 × 121 mm |
|---|---|
| Net weight | ~0.18 kg |
| Mounting | DIN rail 35 mm |
| Terminal type | Plug-in screw terminals |
| Degree of protection | IP20 terminals / IP40 housing |
| Ambient temperature, operation | −10 … +55 °C |
|---|---|
| Storage / transport | −25 … +70 °C |
| Relative humidity | ≤ 95 %, non-condensing |
| Vibration | 10 – 55 Hz, 0.35 mm |
| Overvoltage category | III / II, pollution degree 2 |
| Approvals / certifications | CE · cULus Listed · TÜV · EAC · CCC · UKCA |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 (SIL 3) |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) · EN 55011 |
| General standards | EN 60204-1 · EN 60947-5-1 · EN ISO 12100 |
