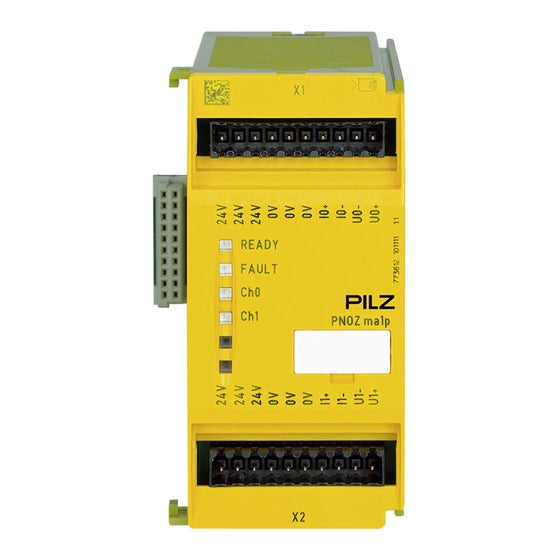

Pilz 773812 Safety Relay

SKU: 773812
(0)
$955.15
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
773812 — 773812 - PNOZ ma1p Analog Input Module
PNOZmulti classic | configurable safety system | analog input expansion module

773812 — PNOZ ma1p Analog Input Module

Expansion module · 2 safe analog inputs · ±10.24 V differential (13-bit) and 0–25.59 mA · 24 V DC · 22.5 mm

Type: analog input Safe analog inputs: 2 Voltage range: -10.24 ... +10.23 V Current range: 0 ... 25.59 mA Resolution: 13 bit Supply: 24 V DC

Overview & Function

The Pilz 773812 (PNOZ ma1p) is a safe analog input expansion module for the PNOZmulti classic configurable safety system. It provides two safe analog inputs as differential dual-pole channels, accepting ±10.24 V voltage or 0–25.59 mA current signals at 13-bit resolution. It is used to monitor analog safety devices such as pressure switches, level sensors or position transducers within configured limits.

Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Key Ratings at a Glance

Safe analog inputs
2 channels
Voltage range
-10.24...+10.23 V
Current range
0...25.59 mA
Resolution
13 bit
Input type
differential dual-pole
Supply voltage
24 V DC
Width
22.5 mm
Weight
0.20 kg

I/O Channel Map & Safety Function

2
Safe Analog IN
Differential dual-pole channels, ±10.24 V / 0–25.59 mA
13
Resolution
Bit resolution per analog channel
1
Base bus
Internal expansion bus to the PNOZmulti base unit
1
Status
LEDs for supply and channel states
Safety performance: up to PL e (EN ISO 13849-1), Category 4 and SIL CL 3 (IEC 62061) when the analog channels are evaluated against configured threshold limits in the PNOZmulti Configurator.

Order Number Breakdown

773812

773PNOZmulti classic expansion family
812PNOZ ma1p - 2 safe analog inputs, ±10.24 V / 0–25.59 mA, 13-bit
Sibling modules 773812 = PNOZ ma1p (this unit) - 773813 = related variant
Use Safe monitoring of analog sensors (pressure, level, position) against set limits
Scope of delivery Expansion module; terminal set ordered separately

Power Supply & I/O Data

Power supply
Supply type DC
Nominal supply voltage 24 V DC
Analog voltage range -10.24 ... +10.23 V
Analog current range 0 ... 25.59 mA
Inputs & outputs
Safe analog inputs 2 x, dual-pole differential
Resolution 13 bit
Input signals Voltage ±10.24 V or current 0–25.59 mA per channel
Configuration PNOZmulti Configurator (threshold evaluation)

Safety Characteristics

Performance level (PL) Up to PL e (EN ISO 13849-1)
Category Up to Category 4
SIL / SIL CL Up to SIL CL 3 (IEC 62061) / SIL 3 (IEC 61508)
PFH Configuration-dependent; see Configurator report
Operation Configured via PNOZmulti Configurator; mounted on base unit bus
Configuration position Set in the Configurator; terminator fitted to last module
Sensor / load connection Per module I/O channel map
Diagnostics LEDs for supply, input and output states

Mechanical & Environmental Data

Dimensions W x H x D 22.5 x 94 x 121 mm
Net weight approx. 0.15 ... 0.25 kg (model-dependent)
Mounting DIN rail (35 mm), snapped onto the base unit / rail
Terminal type Plug-in; screw or spring-loaded terminal set ordered separately
Degree of protection IP20 (installed in cabinet)
Ambient temperature, operation 0 ... +60 °C
Ambient temperature, storage / transport -20 ... +70 °C
Relative humidity ≤ 95 %, non-condensing
Vibration / shock Per IEC 60068-2-6 / IEC 60068-2-27
Housing material PPO / ABS, UL 94 V-0

Compliance, Approvals & Standards

Approvals / certifications CE · cULus Listed · TÜV · BG / BG-PRÜF · EAC (Eurasian) · KOSHA · KCC · UKCA
Functional safety standards EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 (SIL 3)
EMC standards EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) · EN 55011
General standards EN 60204-1 · EN ISO 12100 · IEC 60364

Warranty

12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

773812 · PNOZ ma1p · PNOZmulti classic · 2 safe analog inputs · ±10.24 V / 0–25.59 mA · 13-bit · 24 V DC · 22.5 mm · PL e / Cat. 4 · Independently supplied by SHLY-PLC
