Configurable compact safety controller · 20 safe digital inputs (up to 8 reconfigurable as auxiliary outputs) · 4 safe semiconductor outputs · expandable · 24 V DC

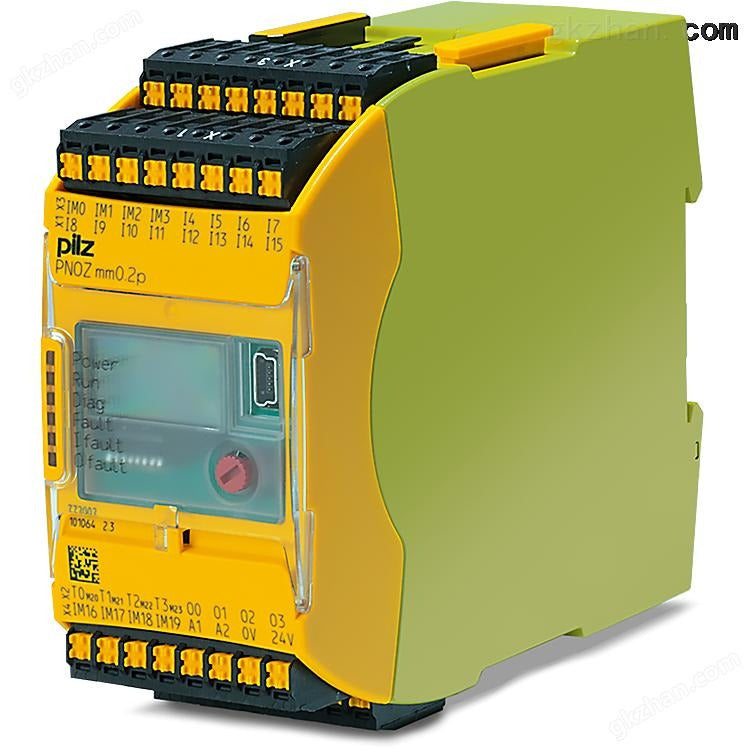

The Pilz 772002 (PNOZ mm0.2p) is the expandable base unit of the compact PNOZmulti Mini configurable safety system. It monitors emergency-stop circuits, safety gates, light curtains, two-hand controls and other safety sensors, and switches actuators safely when a hazard is detected. Up to 8 of its 20 safe digital inputs can be reconfigured as standard auxiliary outputs. The unit is configured graphically with the PNOZmulti Configurator and can be expanded via PNOZmulti Mini expansion modules (PNOZ mm0.xp).
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
772002
| Sibling base units | 772002 = PNOZ mm0.2p (expandable, this unit) - PNOZmulti Mini compact controllers |
|---|---|
| Compatible expansion modules | PNOZ mm0.xp Mini expansion modules, connected via the expansion bus; ordered separately |
| Scope of delivery | Base unit; configuration cable, removable data medium and PNOZmulti Configurator software ordered separately |
| Power supply | |
|---|---|
| Supply type | DC |
| Nominal supply voltage | 24 V DC |
| Tolerance | -15 % / +20 % |
| External PSU power, loaded | 35 W (system) / 192 W (HL outputs) |
| External PSU power, no load | 8 W |
| Residual ripple | ≤ 5 % |
| Fusing | External slow-blow fuse recommended |
| Inputs & outputs | |
|---|---|
| Safe digital inputs | 20 x DI, 24 V DC, PNP; up to 8 can be reconfigured as auxiliary outputs |
| Safe semiconductor outputs | 4 x OSSD, 24 V DC, short-circuit proof |
| Max. cable length per input | 1 km |
| Diagnostics | Display + LEDs for supply, RUN, input and output faults |
| Performance level (PL) | Up to PL e (EN ISO 13849-1) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL CL 3 (IEC 62061) / SIL 3 (IEC 61508) |
| PFH (per safety circuit) | Configuration-dependent; see Configurator report |
| Response time | Configuration-dependent |
|---|---|
| Diagnostic coverage | Up to 99 % (depending on sensor type and wiring) |
| Sensor types supported | E-stop, safety gate, light curtain, two-hand, mat, enable switch |
| Configuration tool | PNOZmulti Configurator |
| Dimensions W x H x D | 135 x 94 x 121 mm |
|---|---|
| Net weight | 0.499 kg (approx. 1.1 lb) |
| Mounting | DIN rail (35 mm), horizontal mounting position |
| Terminal type | Screw terminal and spring-loaded terminal (ordered as a set) |
| Degree of protection | IP20 (installed in cabinet) |
| Ambient temperature, operation | 0 ... +60 °C |
|---|---|
| Ambient temperature, storage / transport | -20 ... +70 °C |
| Relative humidity | ≤ 95 %, non-condensing |
| Vibration / shock | Per IEC 60068-2-6 / IEC 60068-2-27 |
| Altitude | Up to 2000 m without derating |
| Approvals / certifications | CE · cULus Listed · TÜV · BG / BG-PRÜF · EAC (Eurasian) · KOSHA · KCC · UKCA |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 (SIL 3) |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) · EN 55011 |
| General standards | EN 60204-1 · EN ISO 12100 · IEC 60364 |
