Magnetic safety gate system · 1000 N guard locking · stainless-steel base · 2 OSSD + 1 signal · M12 8-pin · IP67 · sensor only

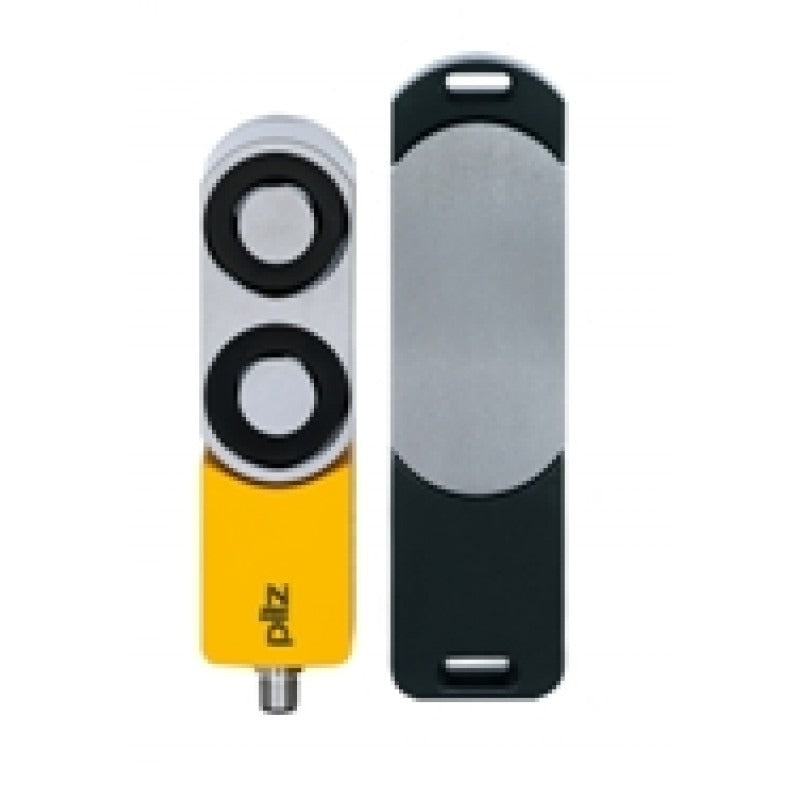

The Pilz 570640 (PSEN sl-1.0p 1.1 VA 1switch) is the stainless-steel (VA) version of the PSENslock 1.0 magnetic safety gate system, supplied as the sensor head only. It combines safe gate position monitoring with a powerful 1000 N magnetic guard locking for process protection, on an 8-pin M12 connector. The PBT housing with stainless-steel baseplate gives high robustness for packaging, food and pharmaceutical machinery, with 2 OSSD safety outputs and 1 signal output.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
570640
| Sibling models | 570600 = sl-1.0p 1.1 / sl-1.0 1unit (plastic, sensor + actuator) · 570630 = sl-1.0p 1.1 VA (plastic body, stainless base) |
|---|---|
| Required actuator | PSEN sl-1.0 actuator (standard or free-moving) |
| Scope of delivery | 1 sensor head only; actuator and M12 cable ordered separately |
| Power supply | |
|---|---|
| Nominal supply voltage | 24 V DC |
| Max. output current | 500 mA per OSSD |
| Power consumption | 7.2 W (gate locked) |
| Connection | M12, 8-pin male |
| I/O | |
|---|---|
| Safety outputs | 2 x OSSD semiconductor |
| Signal output | 1 x PNP |
| Inputs | 3 (safety + lock control) |
| Vertical / lateral offset | +/- 5 / +/- 5 mm |
| Status | LED display |
| Performance level (PL) | Up to PL e (EN ISO 13849-1) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL CL 3 (IEC 62061) |
| Coding (EN ISO 14119) | Coded |
| Holding force | 1000 N (process protection) |
|---|---|
| Series connection | With PSENslock / PSENsgate / PSENcode |
| Design | PBT housing, stainless-steel baseplate |
| Mounting | 45 mm profiles |
| Sensor dimensions | 172 x 45 x 44 mm (L x W x D) |
|---|---|
| Net weight | 1.000 kg |
| Degree of protection | IP67 |
| Housing | PBT + stainless-steel base |
| Ambient temperature, operation | -10 … +55 °C |
|---|---|
| Vibration / shock | Per EN 60068-2 series |
| Sectors | Packaging, food & beverage, pharma |
| Actuator | PSEN sl-1.0 (ordered separately) |
| Approvals / certifications | CE · EAC (Eurasian) · TÜV · cULus Listed · UKCA |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 · EN ISO 14119 · EN 60947-5-3 |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) |
| General standards | EN 60204-1 · EN ISO 12100 |
