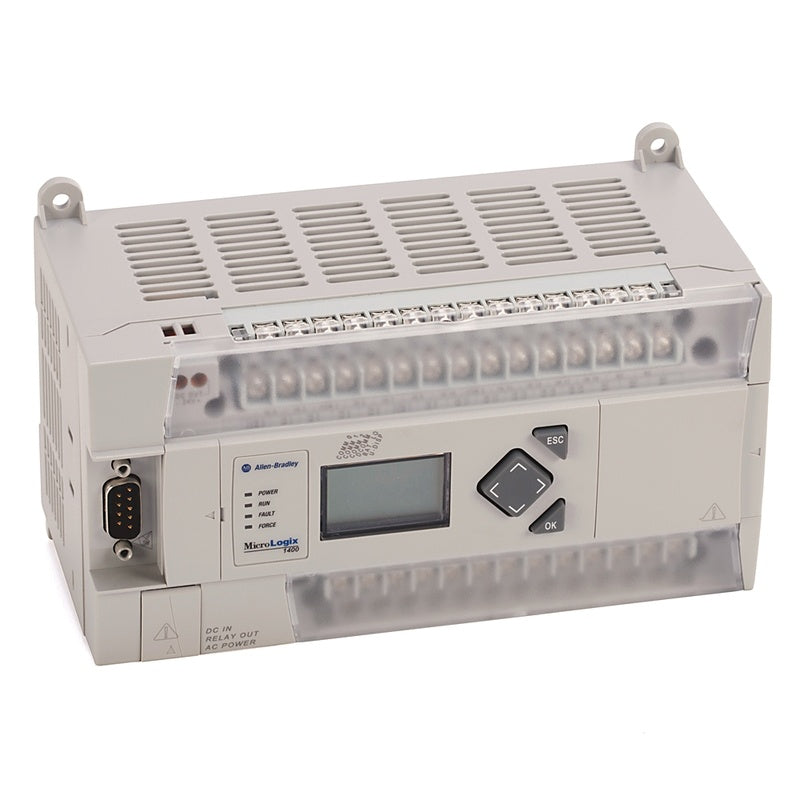

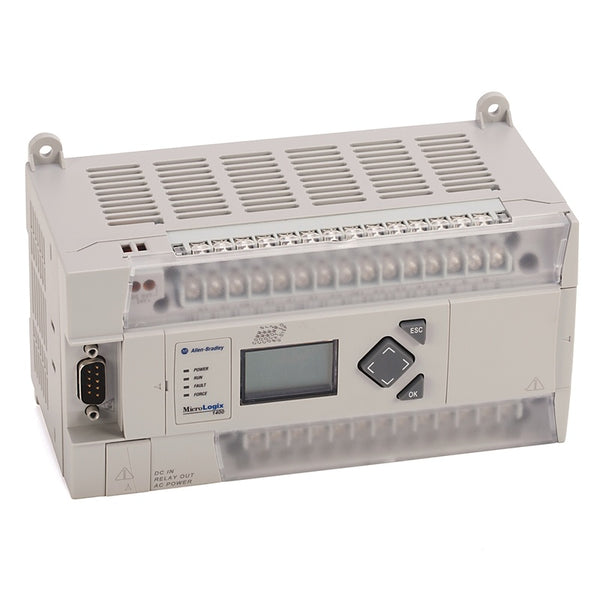

Allen-Bradley 1766-L32AWAA | Relay & Timer

MicroLogix 1400 32 Point Controller

MicroLogix 1400, 20 digital 120V ac inputs, 12 Relay outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 110/240V ac power

Specifications

• Class: Progmable Logic Controller
• Communication: DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP
• Controller: 20 digital 120V ac inputs, 12
• Depth: 87
• Embedded Analog: (4) Voltage Inputs / (2)
• Height: 90
• Input Signal: 120 V AC
• Interface: Ethernet Port, Isolated
• Memory: 20 KB
• Number Of Channels: 20 I/P, 12 O/P
• Output Signal: Relay
• Power Supply: 120/240V AC
• Product Series: C

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
