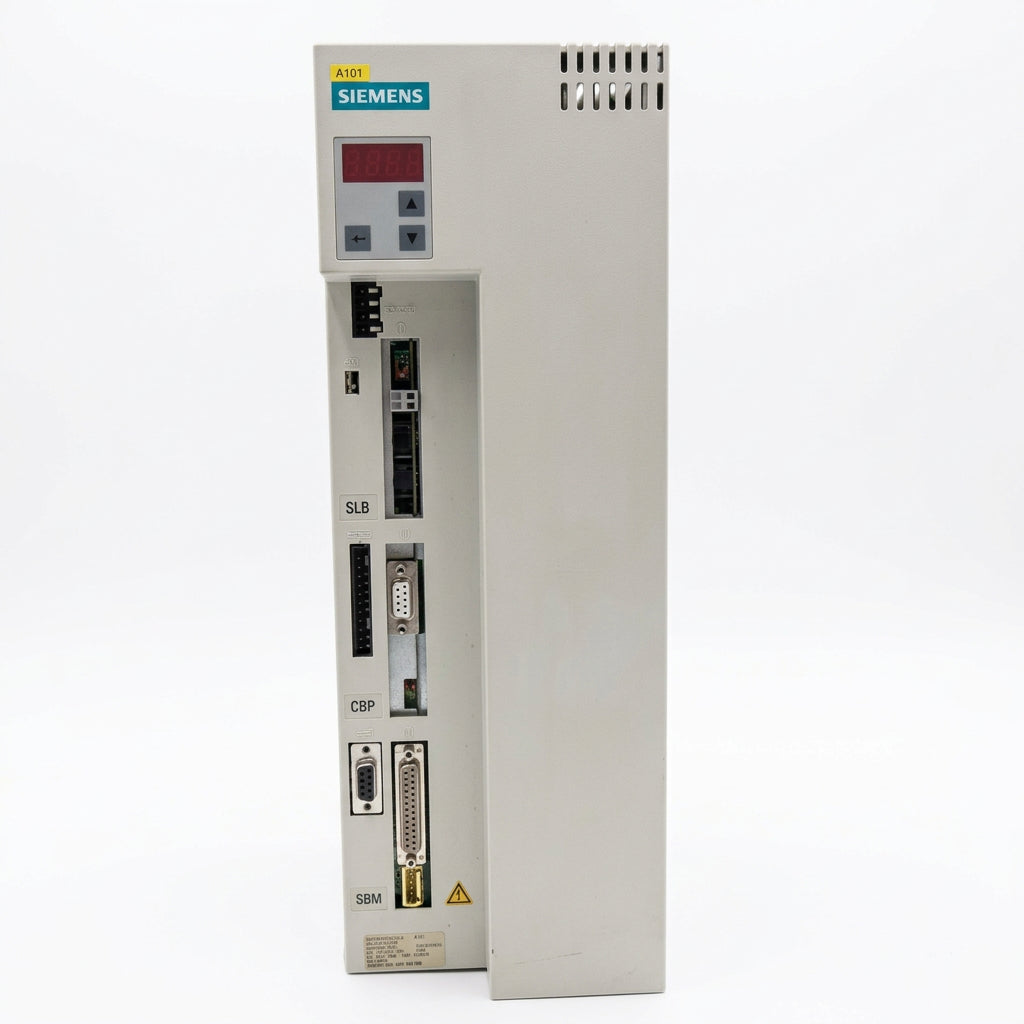

The Siemens 6SE7022-6TP50 is a SIMOVERT MASTERDRIVES Motion Control Compact-Plus PEU (Power Electronics Unit) inverter, rated 11 kW with 25.5 A output current, operating from a 510~650 V DC link. It is a booksize 3-phase inverter power stage used to control asynchronous motors in vector control and motion control systems. This product is end-of-life from the original manufacturer, supplied as a tested industrial spare part. Technical data sourced from official Siemens MASTERDRIVES catalog & datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment. Contact our team for compatibility verification.
Official Siemens MASTERDRIVES Catalog & Datasheet Parameters
| Technical Specifications | |
| Catalog Number | 6SE7022-6TP50 |
| Product Series | SIMOVERT MASTERDRIVES Motion Control |
| Module Type | PEU Power Electronics Unit, Compact-Plus booksize |
| Rated Power | 11 kW @400V (15 HP) |
| Rated Output Current | 25.5 A |
| DC Link Voltage Range | 510 ~ 650 V DC |
| Power Device | IGBT |
| Output | 3-phase variable frequency AC |
| Cooling | Forced ventilation, integral fan |
| Degree of Protection | IP20 |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +40°C (derating above 40°C) |
| Storage Temperature | -25°C ~ +70°C |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
| Agency Certifications | |
| Certifications | CE, cULus, RoHS |
6SE7022-6TP50 is the Compact-Plus booksize PEU inverter of SIMOVERT MASTERDRIVES Motion Control 6SE70 series. It works together with the matching Control Unit, rectifier, power supply and option boards inside the MASTERDRIVES system. The manufacturer has discontinued this series; modern upgrade solution is SINAMICS S120. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: A SIMOVERT MASTERDRIVES Motion Control Compact-Plus PEU inverter power unit, rated 11 kW / 25.5 A with 510~650 V DC link, IGBT booksize unit for vector and motion control.
A: Manufacturer End-of-Life, no new original production. We supply tested spare / new surplus units for maintenance replacement.
A: The modern upgrade solution is Siemens SINAMICS S120 drive system.
A: No, it must be installed together with matching control unit, rectifier and option boards inside the MASTERDRIVES rack.
