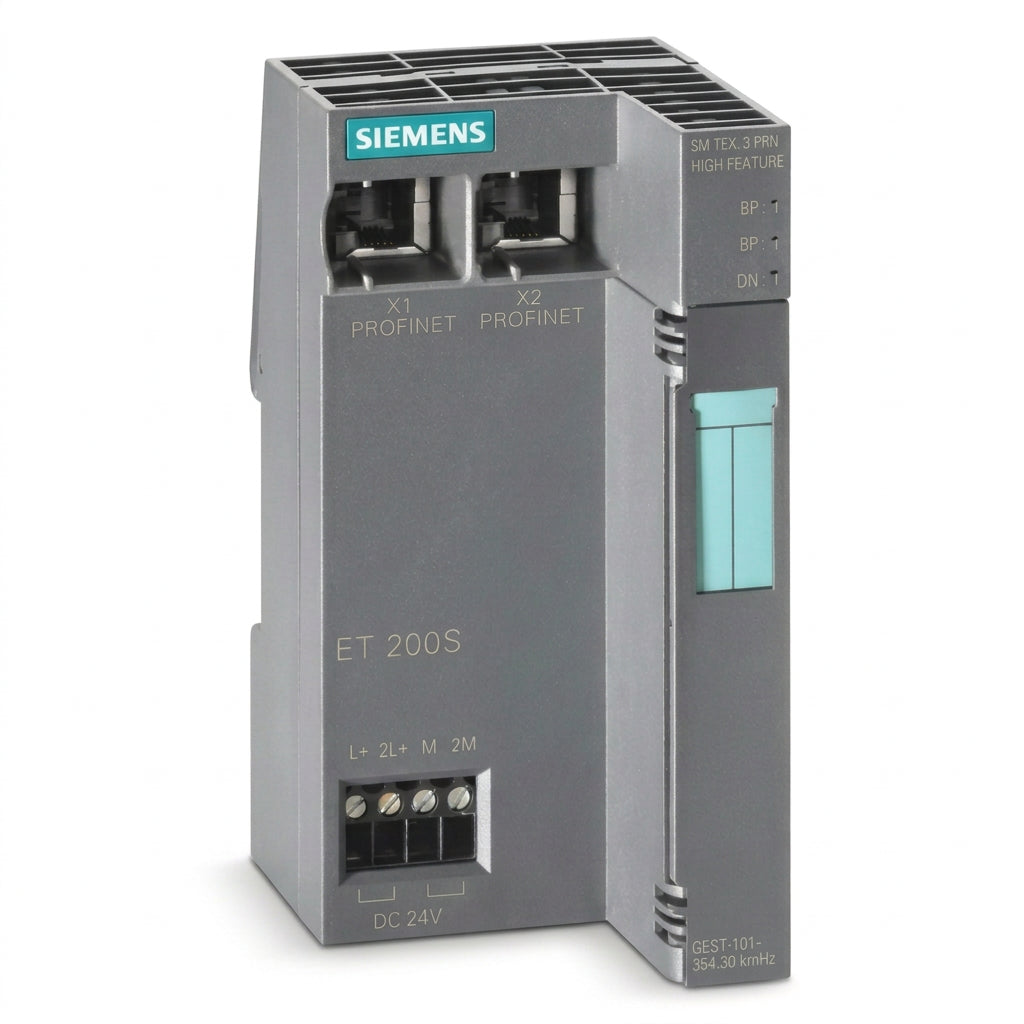

Siemens 6ES7151-3BA22-0AB0 PLC Module

SKU: 6ES7151-3BA22-0AB0
(0)
$328.67
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

Siemens 6ES7151-3BA22-0AB0 IM151-3 PN HIGH FEATURE Interface Module for ET200S

The Siemens 6ES7151-3BA22-0AB0 is IM151-3 PN HIGH FEATURE PROFINET IO interface module for SIMATIC ET200S distributed I/O station. It connects ET200S remote I/O rack to PROFINET controller, with integrated 2-port switch, supports IRT isochronous real-time, full diagnostics and interrupt functions. Technical data sourced from official Siemens datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment. Contact our team for compatibility verification.

Features

  • Order Code: 6ES7151-3BA22-0AB0
  • Product Family: SIMATIC ET 200S, IM151-3 PN HF
  • Protocol: PROFINET IO, 100BASE-TX
  • Integrated Switch: 2 × RJ45 ports, auto-negotiation / auto-crossing
  • Realtime: IRT Isochronous Real-Time communication support
  • Max I/O Modules: Up to 63 ET200S electronic modules
  • I/O Address Space: 256 bytes input / 256 bytes output
  • Interrupt Types: Diagnostic, process, module pull/plug, maintenance interrupt
  • Firmware Update: via Micro Memory Card or PROFINET IO
  • Diagnostics: Port diagnostics, channel-level diagnostics, SNMP MIB-2 supported
  • Rated Supply: 24V DC electronic supply, reverse polarity protection
  • Current Consumption: Approx. 200mA @24V DC
  • Power Dissipation: Approx. 2W
  • Mounting: Standard DIN rail mounting
  • Lifecycle: Manufacturer End-of-Life (EOL), spare replacement only
  • Typical Use: Distributed remote I/O, motion control, factory automation, process control

Specifications

Official Siemens Datasheet Parameters

Technical Specifications
Catalog Number 6ES7151-3BA22-0AB0
Product Name IM151-3 PN HIGH FEATURE
Bus Interface PROFINET IO, 2 × RJ45
Power Supply 24V DC
Current Draw ~200 mA
Max ET200S Modules 63 units
I/O Data Size 256 bytes IN / 256 bytes OUT
Backplane Bus Max Length 2 m
Environmental Ratings
Operating Temperature 0°C ~ +55°C
Storage Temperature -40°C ~ +85°C
Relative Humidity 5% ~ 95% RH, Non-Condensing
Agency Certifications
Certifications CE, cULus, RoHS

Compatibility & Cross-References

6ES7151-3BA22-0AB0 IM151-3 PN HF works with full ET200S electronic I/O modules and motor starters. Successor variant: 6ES7151-3BA23-0AB0. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Distributed remote I/O stations on PROFINET network
  • Motion control & high-speed machine automation requiring IRT
  • Packaging, material handling, conveyor systems
  • Retrofit and spare replacement for existing ET200S installations

Warranty

  • Availability: EOL Siemens product, tested surplus stock available, confirm stock before order.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Siemens part 6ES7151-3BA22-0AB0 is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is Siemens 6ES7151-3BA22-0AB0?

A: IM151-3 PN HIGH FEATURE PROFINET IO interface module for ET200S distributed I/O station, integrated dual-port switch, supports IRT real-time communication.

Q: What is difference between 6ES7151-3BA22-0AB0 and 6ES7151-3BA23-0AB0?

A: 6ES7151-3BA23-0AB0 is the updated successor revision of IM151-3 PN HF with newer firmware; function set remains mostly compatible for replacement.

Q: What does IRT mean?

A: Isochronous Real-Time, PROFINET high-speed synchronous communication for motion control applications.

Q: Can this module work with all ET200S modules?

A: Most ET200S I/O modules are compatible; some older high-feature modules have compatibility limits, check Siemens manual before configuration.
