Pilz 773536 Safety Relay

SKU: 773536
(0)
$321.52
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

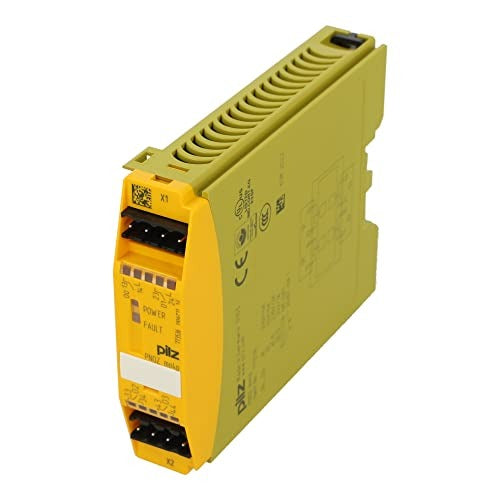

773536 — 773536 - PNOZ mo4p 4N/O Relay Output Module
PNOZmulti classic | configurable safety system | relay output expansion module

773536 — PNOZ mo4p 4N/O Relay Output Module

Expansion module · 4 force-guided safe relay outputs · up to 230 V AC / 6 A · 22.5 mm housing · PL e / Cat. 4

Type: relay output Safe relay outputs: 4 N/O Switching: 230 V AC / 6 A Width: 22.5 mm Safety: PL e / Cat. 4 / SIL CL 3 Contact: force-guided

Overview & Function

The Pilz 773536 (PNOZ mo4p 4N/O) is a relay output expansion module for the PNOZmulti classic configurable safety system. It adds four positive-guided (force-guided) N/O safety relay contacts, capable of switching higher AC/DC loads directly, to a PNOZmulti base unit. It is used where safe loads need potential-free relay contacts rather than semiconductor OSSD outputs.

Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Key Ratings at a Glance

Safe relay outputs
4 N/O
Contact rating
230 V AC / 6 A
Digital inputs
0
Width
22.5 mm
Dimensions HxWxD
94x22.5x121 mm
Weight
0.247 kg
Contact type
force-guided potential-free
Safety rating
PL e / Cat. 4

I/O Channel Map & Safety Function

4
Safe Relay
Positive-guided N/O contacts, 230 V AC / 6 A (AC15: 230 V / 3 A, 690 VA)
0
Inputs
Output-only expansion module
1
Base bus
Internal expansion bus to the PNOZmulti base unit
1
Status
LEDs for supply and output states
Safety performance: up to PL e (EN ISO 13849-1), Category 4 and SIL CL 3 (IEC 62061). Force-guided contacts provide direct contact-status feedback to the internal diagnostics.

Order Number Breakdown

773536

773PNOZmulti classic expansion family
536PNOZ mo4p 4 N/O - 4 safe force-guided relay outputs
Sibling modules 773536 = PNOZ mo4p 4 N/O (this unit) - 773537 = coated version
Contact utilisation AC15: 230 V / 3 A (690 VA); resistive load up to 6 A
Scope of delivery Expansion module; terminal set ordered separately

Power Supply & I/O Data

Power supply
Module supply Via base unit bus, 5 V DC, -2 % / +2 %
Power dissipation 2.5 W
Contact circuit voltage Up to 230 V AC / 24 V DC
Diagnostics LED status indicators
Inputs & outputs
Safe relay outputs 4 x N/O, positive-guided / force-guided, potential-free
Contact rating 230 V AC / 6 A (resistive); AC15 3 A
Digital inputs 0
Configuration PNOZmulti Configurator

Safety Characteristics

Performance level (PL) Up to PL e (EN ISO 13849-1)
Category Up to Category 4
SIL / SIL CL Up to SIL CL 3 (IEC 62061) / SIL 3 (IEC 61508)
PFH Configuration-dependent; see Configurator report
Operation Configured via PNOZmulti Configurator; mounted on base unit bus
Configuration position Set in the Configurator; terminator fitted to last module
Sensor / load connection Per module I/O channel map
Diagnostics LEDs for supply, input and output states

Mechanical & Environmental Data

Dimensions W x H x D 22.5 x 94 x 121 mm
Net weight approx. 0.15 ... 0.25 kg (model-dependent)
Mounting DIN rail (35 mm), snapped onto the base unit / rail
Terminal type Plug-in; screw or spring-loaded terminal set ordered separately
Degree of protection IP20 (installed in cabinet)
Ambient temperature, operation 0 ... +60 °C
Ambient temperature, storage / transport -20 ... +70 °C
Relative humidity ≤ 95 %, non-condensing
Vibration / shock Per IEC 60068-2-6 / IEC 60068-2-27
Housing material PPO / ABS, UL 94 V-0

Compliance, Approvals & Standards

Approvals / certifications CE · cULus Listed · TÜV · BG / BG-PRÜF · EAC (Eurasian) · KOSHA · KCC · UKCA
Functional safety standards EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 (SIL 3)
EMC standards EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) · EN 55011
General standards EN 60204-1 · EN ISO 12100 · IEC 60364

Warranty

12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

773536 · PNOZ mo4p 4 N/O · PNOZmulti classic · 4 force-guided safe relay outputs · 230 V AC / 6 A · 22.5 mm · PL e / Cat. 4 / SIL CL 3 · Independently supplied by SHLY-PLC
