Pilz · Safety Relay

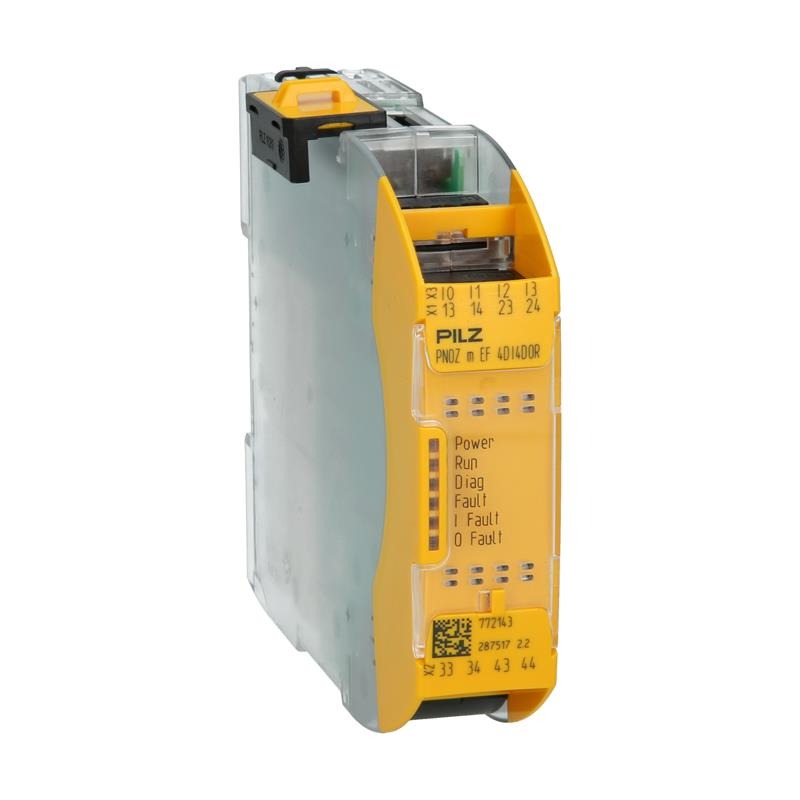

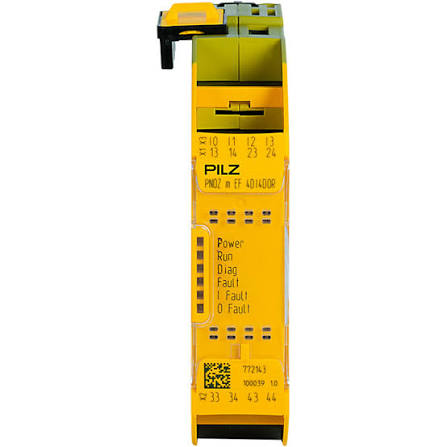

772143 is a Pilz industrial component with Enclosure rating IP20 (IEC 60529); Operating temperature 0...+55 °C (IEC 60068-2-1); Mounting DIN rail / panel. It is used in control panels, machine builds, spare-part replacements where the installed unit is matched to the original catalog number and a compact, documented part is required.
| Electrical | |
| Rated insulation voltage Ui | 690 V (IEC 60947-4-1) |
|---|---|
| Rated impulse withstand Uimp | 6 kV (IEC 60947-4-1) |
| Mechanical | |
| Dimensions (H x W x D) | 120 mm |
| Weight | 205 g |
| Mounting | DIN rail / panel |
| Enclosure rating | IP20 (IEC 60529) |
| Environment and compliance | |
| Operating temperature | 0...+55 °C (IEC 60068-2-1) |
| Storage temperature | EN 60068-2-1/-2 |
| Certifications | CE, cULus, TÃœV |
Values follow the Pilz Safety Relay specification for this catalog number; parameters not confirmed for this variant are omitted rather than estimated.
| Pilz Safety Relay variants | |||
| Catalog number | Mounting | ||
|---|---|---|---|
| 772143 (this page) | DIN rail / panel | ||
| 772140 | DIN rail / panel | ||
| 772142 | DIN rail / panel | ||
| 772100 | DIN rail / panel | ||
Before selecting an alternative, confirm its dimensions, terminals and installation requirements in the manufacturer documentation.
The 772143 is the device-level element in a Pilz industrial component installation. It receives the field signals and control supply listed above — the rated supply — and switches or conditions the load within the the rated ratings shown in the Specifications table. Wiring and protective devices are sized to those same numbers, not to a generic assumption.
Typical installations place it in control panels, machine builds, spare-part replacements, where the unit is matched to the original catalog number and the enclosure provides DIN rail / panel support. Record the catalog number and revision from the nameplate of the installed unit before specifying a like-for-like spare.
Pilz 772143 — Industrial automation component supplied as a like-for-like replacement, selected by catalog number and published ratings. The figures below are taken from the specification table on this page for catalog number 772143; verify the catalog number against your bill of materials before requesting a quotation.
Available from stock with datasheet, certificates and a quotation on request.
