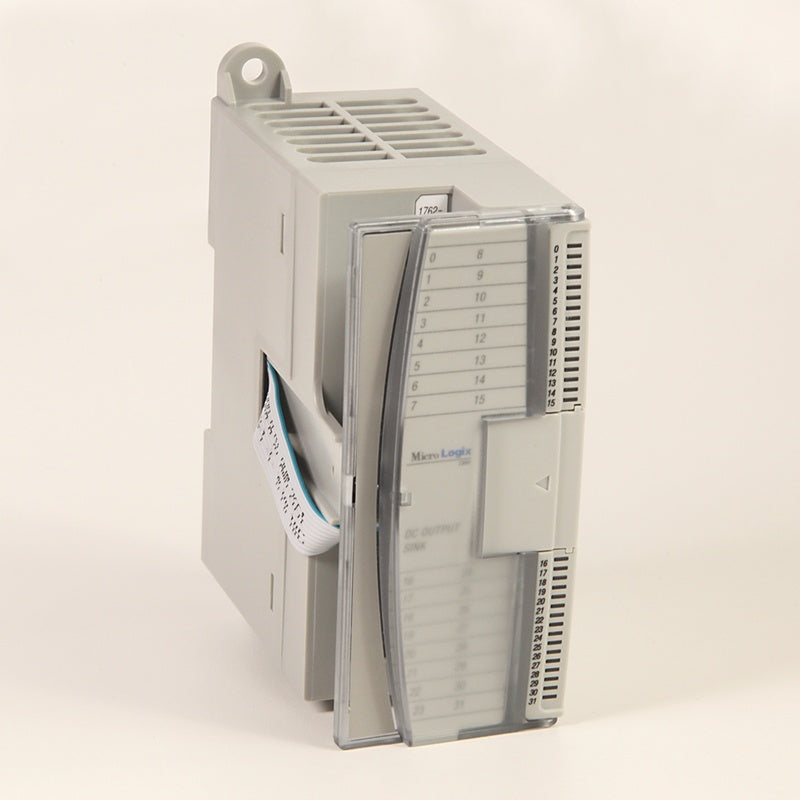

Allen-Bradley 1762-OW16 | Relay & Timer

MicroLogix 16 Point Relay Output Module

1762 MicroLogix 1200 System, 16 Point VAC/VDC Relay Output Module

Specifications

• Class: Progmable Logic Controller
• Depth: 87
• digital output modules: 16 Point VAC/VDC Relay Output
• Height: 90
• I/O Isolation: Isolated
• I/O Status Indication: LED
• Module Interfaces: relay output
• Number Of Channels: 16 point
• Output: 16 Point, Relay
• Temperature Rating: -20¡­65 ¡ãC (-4¡­149 ¡ãF)
• Altitude: 2000 m
• Bus current draw, max: 180mA @ 24V DC (4.32 W)
• Conducted RF immunity: IEC 1000-4-6: 10V @ 0.15...80MHz
• Continuous current per common, max: 8 A
• Continuous current per module, max: 16 A
• Continuous current per point, max: 2.5 A
• Digital inputs configurable: false
• Digital outputs configurable: false
• EFT/B immunity: IEC1000-4-4: 2kV @ 5kHz
• ESD immunity: IEC1000-4-2: 4kV contact, 8kV air, 4kV indirect
• Hazardous environment class: Hazardous Location, Class I, Division 2 Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213)
• Heat dissipation, max: 6.1 W
• Isolated groups: Group 1: Outputs 0...7, Group 2: Outputs 8...15
• Number of digital outputs: 16
• Off-state leakage current, max: 0 mA
• On-state current, min: 10 mA
• Operating humidity: 5...95% noncondensing
• Operating temperature: -20 to 65 ¡ãC
• Operating voltage: 5...265V AC
• Output group to backplane isolation: Verified by one of the following dielectric tests: 1836V AC @ 1s or 2596V DC @ 1s, 265V AC working voltage (IEC Class 2 reinforced insulation)
• Output group to output group isolation: Verified by one of the following dielectric tests: 1836V AC @ 1s or 2596V DC @ 1s, 265V AC working voltage (basic insulation), 150V AC working voltage (IEC Class 2 reinforced insulation)
• Power supply distance rating: 6 (The module may not be more than 6 modules away from the power supply.)
• Radiated and conducted emissions: EN50081-2: Class A
• Radiated RF immunity: IEC1000-4-3: 10 V/m, 80...1,000 MHz, 80% Alitude modulation, +900 MHz keyed carrier
• Redundancy: false
• Relay output, break: 1.5A @ 120V AC
• Relay output, break volt-ampere: 28VA @ 24V DC
• Relay output, continuous: 2.5A @ 240V AC
• Relay output, make: 7.5A @ 240V AC
• Relay output, make volt-ampere: 28VA @ 24V DC
• Shock: Operating: 30G panel mounted, 3 pulses per axis Relay ops: 7G
• Short-circuit protection, outputs available: false
• Signal delay, resistive load, max: On Delay: 10 ms Off Delay: 10 ms
• Storage temperature: -40 ¡ãC
• Suitable for safety functions: false
• Surge transient immunity: IEC1000-4-5: 2 kV common mode, 1 kV differential mode
• Time delay at signal exchange: 10 ms
• Type of digital output: Relay
• Type of electric connection: Screw connection
• Type of output voltage: AC/DC
• Vibration: Operating: 10...500 Hz, 5G, 0.030 in. max. peak-to-peak, 2 hr per axis Relay ops: 1.5G
• Voltage category: AC/DC normally open relay
• Weight: 285 g
• Width: 40.4 mm
