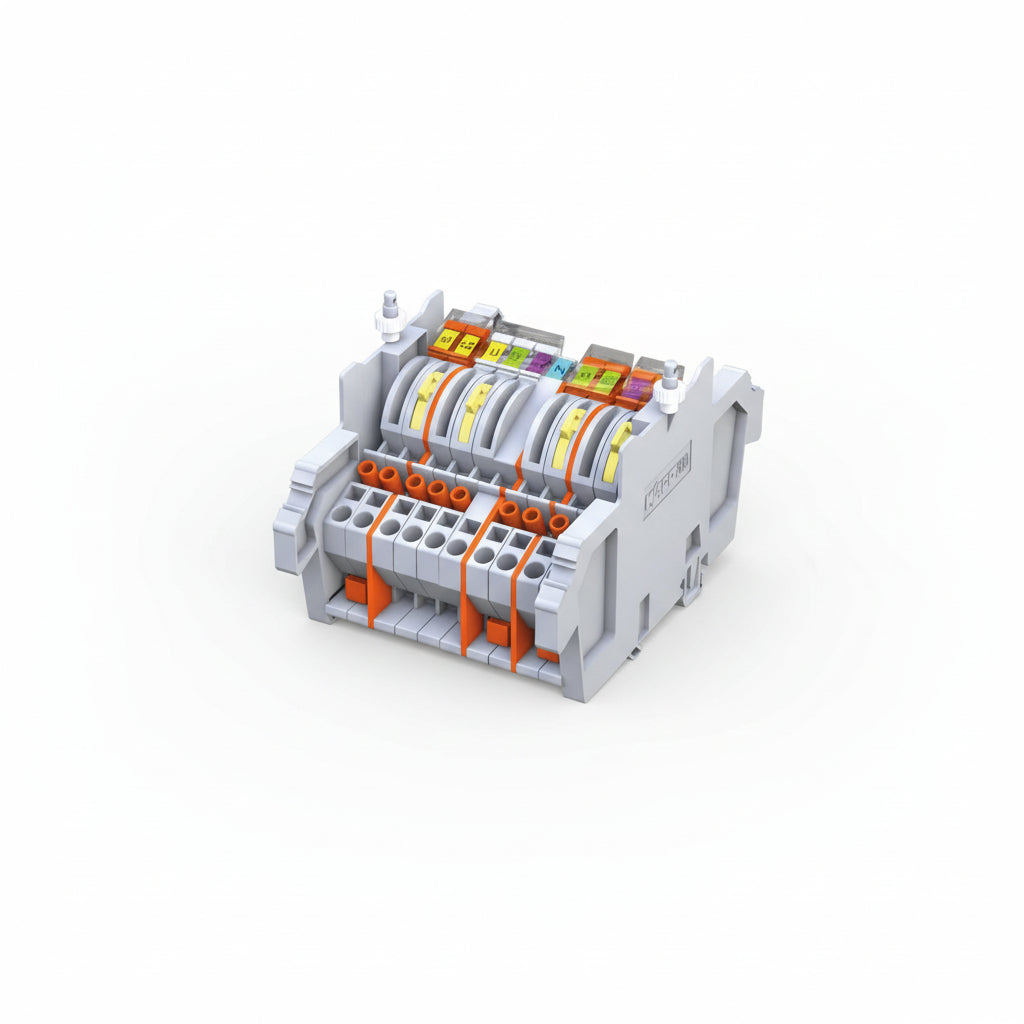

WAGO 847-102 Test Terminal Block

SKU: 847-102
(0)
$335.16
In stock
Usually ships within 72 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

The WAGO 847-102 is a test terminal block for industrial automation and control systems. It is supplied by Lianyou PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. This is a manufacturer-discontinued model; remaining stock is offered while supplies last and the current cross-reference is listed under Compatibility below.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Key Specifications
Number of poles 10
Rated current In 30 A
Rated voltage 500 V
Connection CAGE CLAMP spring, both sides
Operating temperature -50 ... +65 C
Flammability rating UL94 V0
Type Designation
Order code 847-102
WAGO LPW measurement busbar series 847
10-pole version 102
Electrical Data
Product type LPW measurement / test busbar for metering circuits
Number of poles 10
Rated current In 30 A
Rated voltage 500 V
Application Safe shorting and testing of current-transformer secondary circuits in indirect and semi-indirect metering
Voltage paths Optional protection and optional voltage-presence indication
Connection Data
Connection technology 1 / 2 Spring connection (CAGE CLAMP) / spring connection
Connection position Angled
Current and voltage paths Simple, reliable spring-clamp wiring
Mechanical Data
Width / pitch 170 mm
Length 164 mm
Height at lowest mounting position 103 mm
Mounting type Direct mounting
End plate required No
Insulation material Thermoplastic
Color Multicolor
Transparent No
Environmental
Operating temperature -50 ... +65 C
Insulation flammability rating UL94 V0
Series WAGO 847
EAN 4045454263256

Compatibility & Cross-References

  • WAGO LPW measurement busbar series: 847
  • Series: WAGO 847
  • Cross-references: send your existing part number or application and our technical team confirms fitment, protocol and wiring before you order.

Recommended cross-reference

Replacement depends on your controller platform, protocol and wiring. Send your application or photos of the installed unit and our technical team will confirm a verified current cross-reference. You can also browse our current WAGO range.

Applications

  • The WAGO 847-102 is used for organized, reliable wiring and signal distribution in control and distribution cabinets.
  • The 847-series LPW test busbar is specifically used for safe shorting and testing of current-transformer secondary circuits in metering panels.
  • Typical deployments include energy metering, switchgear and indirect/semi-indirect measurement systems.
  • It supports panel builders and maintenance teams requiring safe, tool-friendly CAGE CLAMP connections.

Ordering, Delivery & Warranty

  • Availability: In stock and ready to ship; remaining stock of this discontinued model is offered first-come, first-served.
  • Delivery: Orders placed before 14:00 ship the same business day; worldwide delivery typically takes 5-8 business days, express service is available and shipping is free on orders over $500.
  • Condition & testing: Each unit is visually inspected and functionally checked before dispatch and packaged for protective international transit.
  • Warranty: Covered by our supplier warranty. Contact our team for the current warranty terms and available stock.
Independent supplier: WAGO part 847-102 is supplied by Lianyou PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: Is the 847-102 still available, and what replaces it?

A: The 847-102 is a discontinued model and remaining stock is supplied first-come, first-served. Our technical team will confirm a verified current replacement for your platform and protocol.

Q: What condition is the 847-102 supplied in?

A: Each 847-102 is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the 847-102 ship?

A: In-stock orders placed before 14:00 ship the same business day. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the 847-102?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
