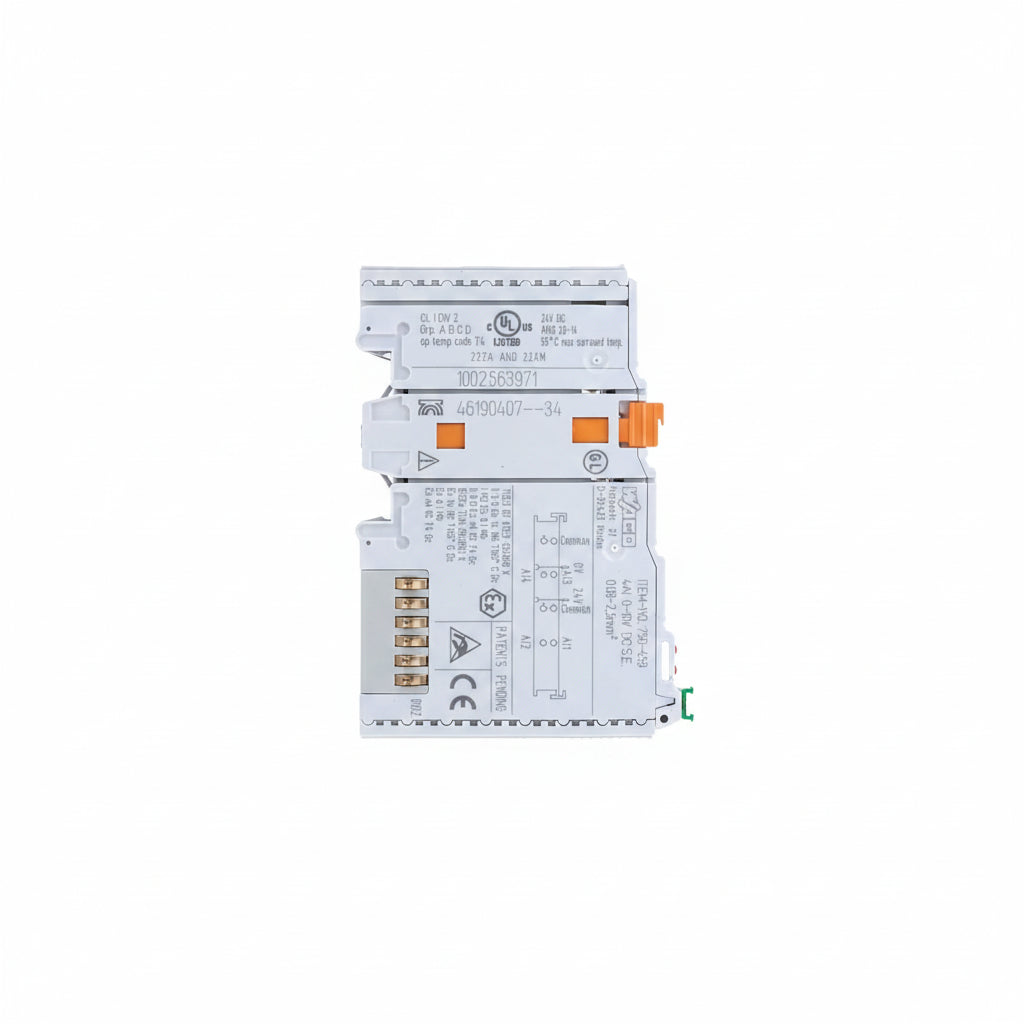

WAGO 750-459 Analog Input Module - additional view 1

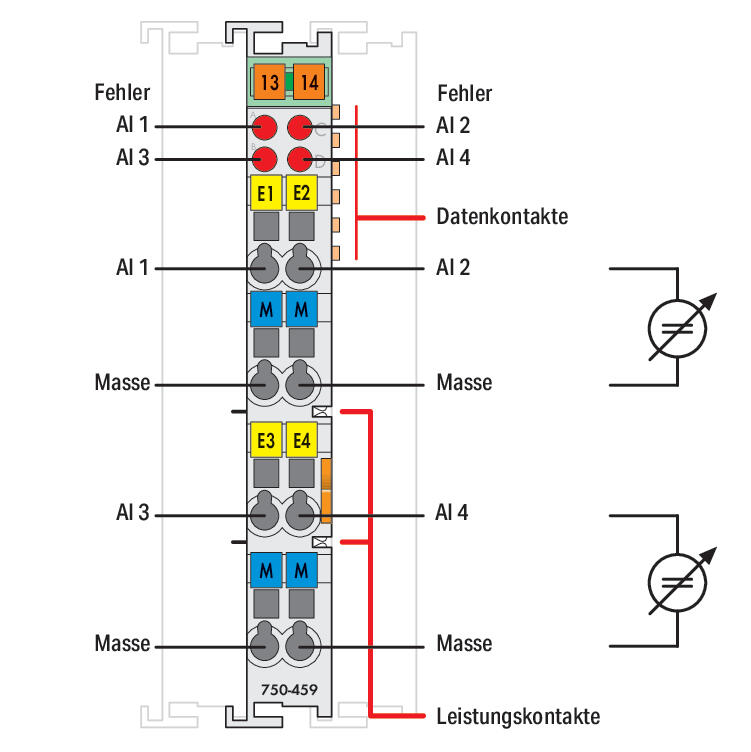

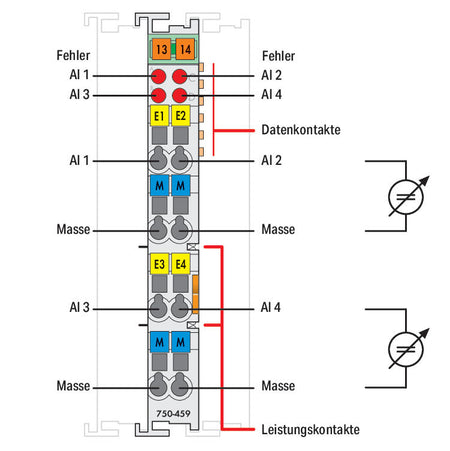

WAGO 750-459 Analog Input Module - additional view 2

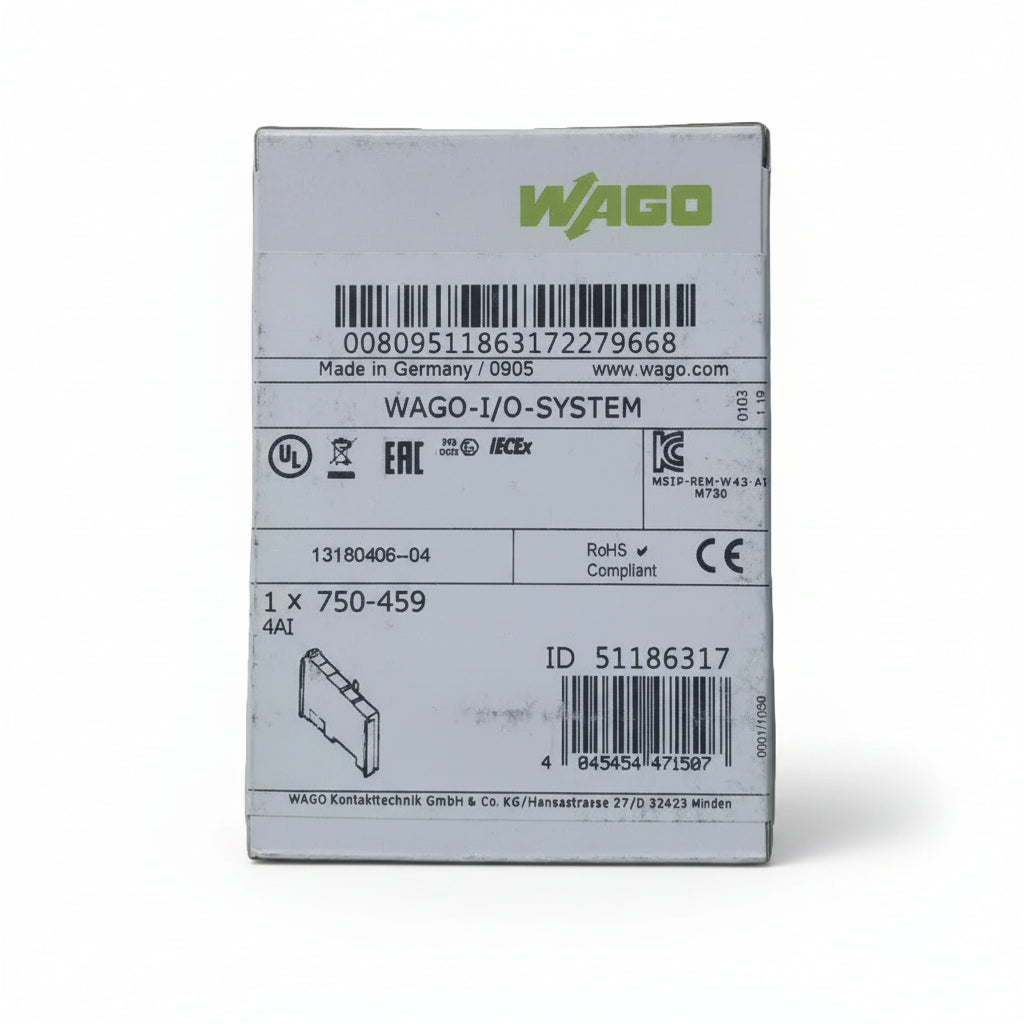

WAGO 750-459 Analog Input Module - additional view 3
WAGO 750-459 Analog Input Module - white background
WAGO 750-459 Analog Input Module - additional view 1
WAGO 750-459 Analog Input Module - additional view 2
WAGO 750-459 Analog Input Module - additional view 3

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

WAGO

WAGO 750-459 Analog Input Module

SKU: 750-459
(0)
$88.39
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

The WAGO 750-459 is a analog input module for industrial automation and control systems. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Key Specifications
Number of analog inputs 4
Number of Channels 4
Signal type Voltage
Signal type (voltage) 0 … 10 VDC
Sensor connection 4 x (2-wire)
Input voltage (max.) ±40 V
Signal characteristics Single-ended
Resolution [bit] 12Bit
Type Designation
Order code 750-459
Product family / base order code 750
Version / revision suffix 459
Power Supply
Signal type (voltage) 0 … 10 VDC
Input voltage (max.) ±40 V
Supply voltage (system) 5 VDC; via data contacts
Current consumption (system supply) 65mA
Supply voltage (field) 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
Number of incoming power jumper contacts 2
Number of outgoing power jumper contacts 2
I/O & Signals
Number of analog inputs 4
Number of Channels 4
Input voltage (max.) ±40 V
Connection technology: inputs / outputs 8 x CAGE CLAMP®
Mechanical & Environmental
Data width 4 x 16-bit data; 4 x 8-bit control/status (optional)
Measurement error, reference temperature 25°C
Temperature error max. (upper-range value) ≤± 0.01%/K
Width 12 mm / 0.472 inches
Height 100 mm / 3.937 inches
Depth 69.8 mm / 2.748 inches
Depth from upper-edge of DIN-rail 62.6 mm / 2.465 inches
Mounting type DIN-35 rail
Compliance, Approvals & Standards
Product approvals CE, UKCA, UL/cUL, RoHS
EMC EN 61000-6-x / EN 55011 (industrial environment)
Safety standard IEC/EN 61131 / 61800 / 60947 (product-specific)

Compatibility & Cross-References

  • Signal type: Voltage
  • Signal type (voltage): 0 … 10 VDC
  • Signal characteristics: Single-ended
  • Cross-references: send your existing part number or application and our technical team confirms fitment, protocol and wiring before you order.

Applications

  • The WAGO 750-459 is used to acquire or output analog process signals from sensors, transmitters and transducers.
  • Typical applications include level, pressure, temperature and flow monitoring in process automation.
  • It is integrated into control cabinets for data acquisition and closed-loop control tasks.
  • It also serves as a replacement I/O module in installed WAGO 750/753 systems.

Ordering, Delivery & Warranty

  • Availability: Worldwide shipping.
  • Delivery: Orders are processed within 2-4 business days after payment confirmation; worldwide delivery typically takes 5-8 business days, express service is available and shipping is free on orders over $500.
  • Condition & testing: Each unit is visually inspected and functionally checked before dispatch and packaged for protective international transit.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: WAGO part 750-459 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the 750-459 supplied in?

A: Each 750-459 is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the 750-459 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the 750-459?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
