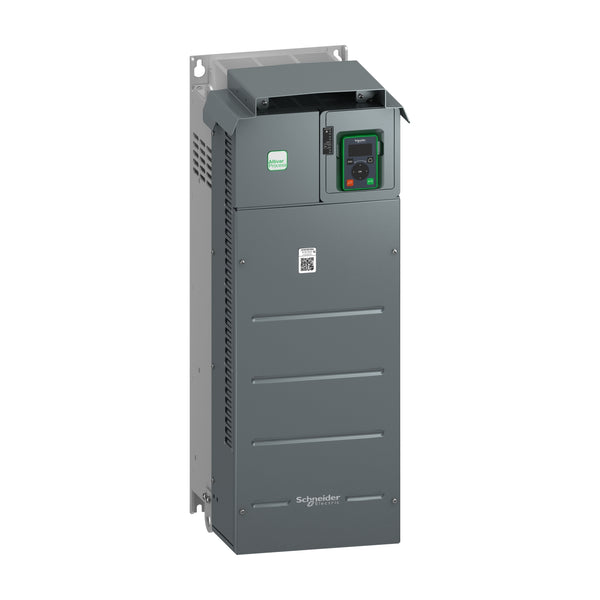

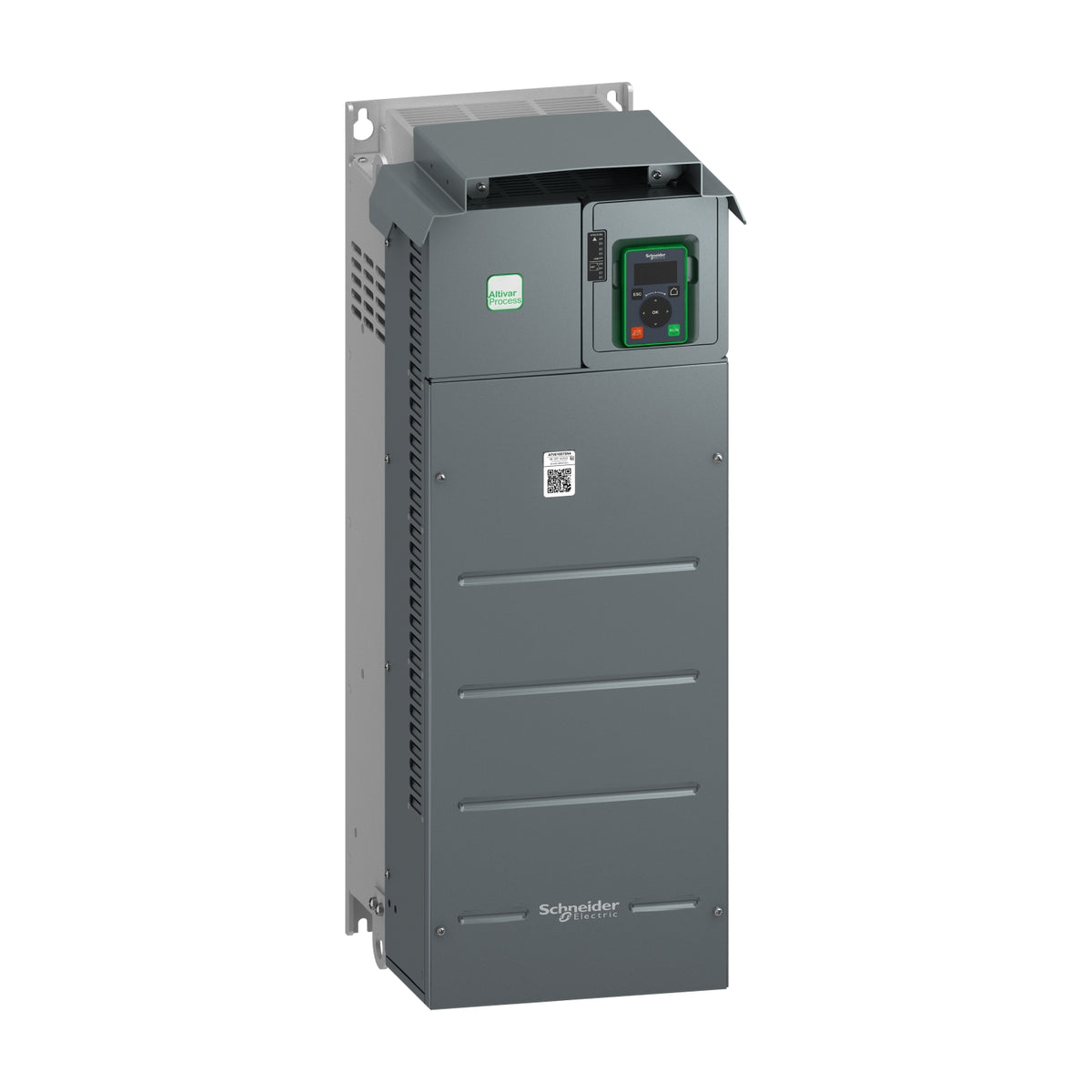

Schneider Electric ATV610D75N4 — technical reference listing by SHLY-PLC
The Schneider Electric ATV610D75N4 is a altivar ac drive supplied by SHLY-PLC as a tested spare and replacement component for industrial automation, electrical distribution and process-control systems. It is intended for maintenance, retrofit and urgent-breakdown orders; please confirm fitment against your machine, circuit diagram or existing part number before ordering.
| Product status | New - tested and inspected by SHLY-PLC |
|---|---|
| Manufacturer | Schneider Electric |
| Order number / SKU | ATV610D75N4 |
| Product family / series | Altivar AC drive |
| Range of product | Easy Altivar 610 |
| Product or component type | Variable speed drive |
| Device short name | ATV610 |
| Product specific application | Pumps and fans |
| Motor power kW | 75 kW |
| Motor power hp | 100 hp |
| [Us] rated supply voltage | 380...480 V AC - 15...10 % |
| Network number of phases | 3 phases |
| Supply frequency | 50/60 Hz +/- 5 % |
| Nominal output current | 142.5 A at 4 kHz |
| Output frequency range | 0.1...500 Hz |
| EMC filter | Integrated |
| Communication port protocol | Modbus |
| I/O configuration | 4 DI, 1 DO, 2 AI, 1 AO, 1 relay |
| STO safe torque off | Yes (dual channel) |
| IP degree of protection | IP20 |
| Mounting mode | Wall mount |
| Approvals / standards | IEC/EN 61800-5-1, IEC/EN 61800-3, UL, CSA, CE |
| Marking | CE, UL, CSA |
| Ambient air temperature for operation | -15...50 deg C (without derating) |
| Product destination | 3-phase asynchronous and synchronous motors |
Parameters compiled from the manufacturer's public product documentation. Full electrical ratings, dimensions and approvals are available on the official manufacturer datasheet or on request before ordering. 12-month seller warranty provided by SHLY-PLC.
To confirm fitment, share your machine model, tag number, circuit-diagram reference or existing device label. Cross-references are matched by function, electrical interface, rated current/voltage and mounting rather than by brand name alone.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
Shipping: Orders are processed within 1–2 business days after payment confirmation. US & Canada dedicated line.
A: Every ATV610D75N4 supplied by SHLY-PLC is covered by our 12-month seller warranty. Contact our team for RMA and return instructions.
A: In-stock units are dispatched within 1–2 business days. Standard delivery 5–8 business days; express 2–4 business days to the US and Canada.
A: SHLY-PLC is an independent supplier of tested spare and replacement automation parts. We confirm compatibility by your machine, tag number or existing part number before dispatch.
A: If the exact variant is obsolete, our team will propose the current-production equivalent or a compatible alternative before your order is confirmed.
Standard (US & Canada, tracked courier): delivered in 5–8 business days. In-stock items are processed within 2–4 business days. USD 25 flat rate on orders under $500.00; free on orders of $500.00 and above.
Express (DHL Express / FedEx International): upgraded expedited delivery in 2–4 business days. The Express surcharge is calculated at checkout based on destination and order weight.
Non-Stock / On-Order items ship on request: dispatch time is confirmed before your order — see our Shipping Policy. Shipping charges and available services are displayed at checkout. See the Shipping Policy for details.
Every product is covered by a 12-month seller warranty provided by SHLY-PLC, effective from the date of delivery, against defects in materials and workmanship under normal use.
This warranty does not cover damage from misuse, improper installation, power surges, neglect, unauthorized repair, or normal wear and tear. See our Return Policy for warranty-claim instructions.
