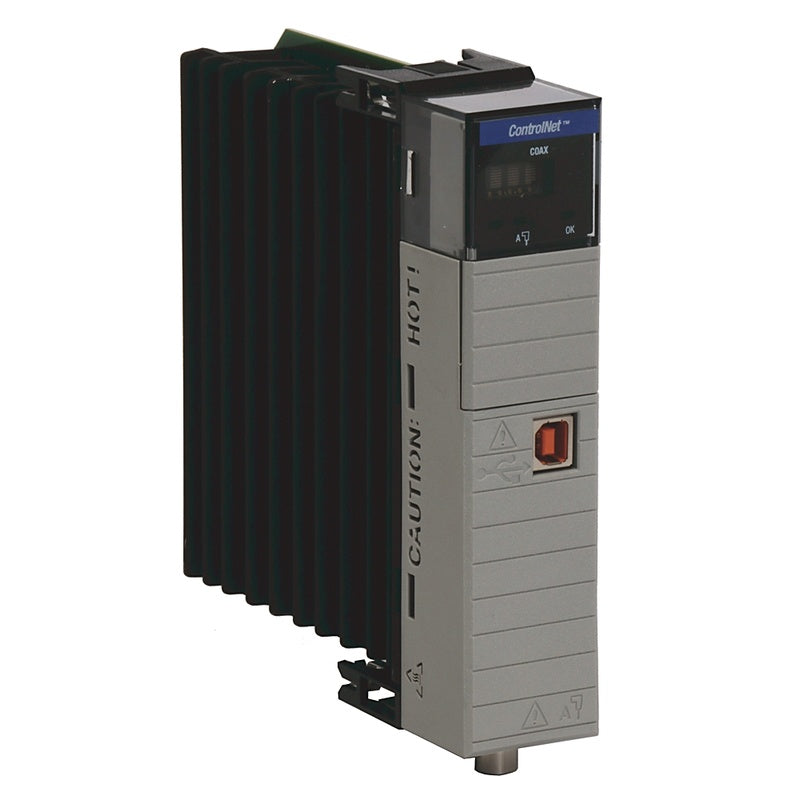

Allen-Bradley 1756-CN2 | Communication & I/O Module

SKU: 1756-CN2
(1)
$450.00
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

ControlLogix Communication Module

ControlNet Interface Module (100 connections)

Specifications

  • Communication: ControlNet
  • Interface: 1 ControlNet BNC
  • Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
  • Connections supported, max: 131 maximum
  • ControlNet cable: 1786-RG6 quad shield RG6 coaxial cable
  • ControlNet port: 1 ControlNet BNC
  • Current draw: 1100mA @ 5.1V DC, 3mA @ 24V DC
  • EFT/B immunity: ¡À3kV @ 5kHz on ControlNet ports
  • Emissions: CISPR 11: Class A
  • Enclosure type rating: None (open-style)
  • ESD immunity: 6 kV contact discharges, 8 kV air discharges
  • IO link master: false
  • Isolation voltage: Standard: 30V (continuous), basic insulation type, ControlNet network to, backplane, Redundant: 30V (continuous), basic insulation type, ControlNet A/B to, backplane, and ControlNet A to ControlNet B, USB to backplane and USB to ControlNet, No isolation b
  • Logix communication connections: 128
  • Module location: Chassis based, any slot
  • Number of nodes, max: 99 nodes
  • Operating temperature: 0 to 60 ¡ãC
  • Power dissipation: 5.6 W
  • Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
  • Radio standard Bluetooth: false
  • Radio standard GPRS: false
  • Radio standard GSM: false
  • Radio standard UMTS: false
  • Radio standard Wi-Fi 802.11: false
  • Redundancy: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 30 G, Nonoperating: 30 G
  • Slot width: 1
  • Storage temperature: -40 to 85 ¡ãC
  • Supporting protocol for ASI: false
  • Supporting protocol for AS-Interface Safety at Work: false
  • Supporting protocol for CAN: false
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for DeviceNet: false
  • Supporting protocol for DeviceNet Safety: false
  • Supporting protocol for EtherNet/IP: false
  • Supporting protocol for Foundation Fieldbus: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for INTERBUS-Safety: false
  • Supporting protocol for KNX: false
  • Supporting protocol for LON: false
  • Supporting protocol for Modbus: false
  • Supporting protocol for other bus systems: true
  • Supporting protocol for PROFIBUS: false
  • Supporting protocol for PROFINET CBA: false
  • Supporting protocol for PROFINET IO: false
  • Supporting protocol for PROFIsafe: false
  • Supporting protocol for SafetyBUS p: false
  • Supporting protocol for SERCOS: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for TCP/IP: false
  • Surge transient immunity: ¡À2 kV line-earth (CM) on ControlNet ports
  • Surrounding air temperature, max: 60 ¡ãC
  • Thermal dissipation: 19.1 btu/h
  • Transmission rate: 5000 kbps
  • Vibration: 2 G @ 10...500 Hz
  • Weight, approx: 0.26 kg
  • Wiring category: 1 - on ControlNet ports, 3 - on USB ports
  • With optical interface: false
  • With potential separation: false
  • Product Series: C
