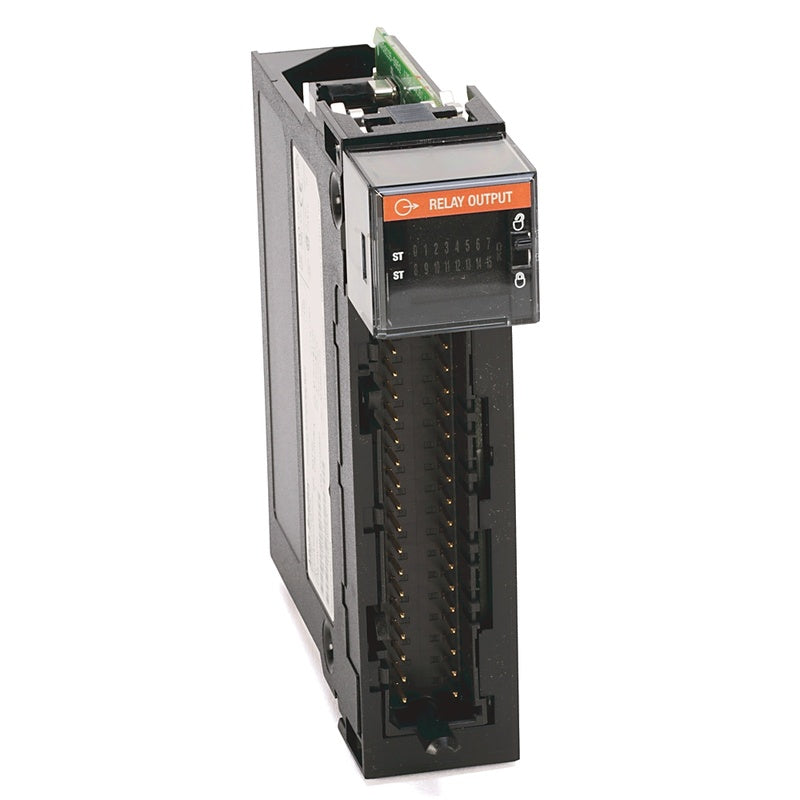

Allen-Bradley 1756-OW16I | Relay & Timer

ControlLogix 16 Pt Digital Relay Module

N.O. Isolated Relay Output 16 Pts (36 Pin)

Specifications

• Isolation: 250 V continuous between outputs
• Bounce time, mean: 1.2 ¦Ìs
• Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
• Current draw: 150mA @ 5.1V, 150mA @ 24V
• Digital inputs configurable: false
• Digital outputs configurable: false
• EFT/B immunity: ¡À4kV @ 5kHz on signal ports
• Emissions: IEC 61000-6-4
• Enclosure type: None (open-style)
• ESD immunity: 6 kV contact discharges, 8 kV air discharges
• Expected contact life: 300 kHz, resistive, 100 kHz, inductive
• Fusing: Not protected. A fused IFM can be used to help protect outputs. See publication 1492-TD008. However, the ControlLogix, system has been agency certified using only the ControlLogix RTBs, that is, 1756-TBCH, 1756-TBNH, 1756-TBSH, and, 1756-TBS6H. Any applic
• Initial contact resistance, max: 100 m? @ 6V @ 1A
• Isolation voltage: 250V (continuous), basic insulation type, outputs-to-backplane, and output-to-output
• Load current per point, min: 10 mA
• Module keying: Electronic, software configurable
• Nonoperating temperature: -40 ¡ãC
• North American temperature code: T4A
• Off-state leakage current per point, max: 1.5 mA
• Operating temperature: 0 to 60 ¡ãC
• Operating voltage: 5...125V DC @ 10...240V AC
• Oscillatory surge withstand: IEEE C37.90.1: 3kV
• Output delay time: OFF to ON: 10 ms maximum, ON to OFF: 10 ms maximum
• Outputs: 16 N.O. individually isolated
• Output voltage: 1A @ 5...30V DC 0.5A @ 48V DC 0.22A @ 125V DC 1.5A @ 120V AC, 50/60 Hz 0.75A @ 240V AC, 50/60 Hz
• Pilot duty: C300, R150
• Power dissipation, max: 4.5 W @ 60 ¡ãC (140 ¡ãF)
• Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
• Redundancy: false
• Relative humidity: 5...95% noncondensing
• RTB keying: User-defined mechanical
• Scheduled outputs: Synchronization within 16.7 s max, reference to the coordinated system time
• Shock: Operating: 30 G, Non operating: 50 G
• Short-circuit protection, outputs available: false
• Slot width: 1
• States in fault mode per point: Hold last state, On or Off (Off is default)
• States in program mode per point: Hold last state, On or Off (Off is default)
• Suitable for safety functions: false
• Surge transient immunity: ¡À1 kV line-line (DM) and ¡À2 kV line-earth (CM) on signal ports
• Surrounding air temperature, max: 60 ¡ãC
• Switching frequency, max: 1 ops/3 s (0.3 Hz at rated load)
• Thermal dissipation: 15.35 btu/h
• Total backplane power: 4.4 W
• Type of digital output: Relay
• Type of electric connection: Screw connection
• Type of voltage (input voltage): DC
• Vibration: 2 G @ 10...500 Hz
• Voltage type of supply voltage: DC
• Wire category: Wire category: 1
• Product Series: A
