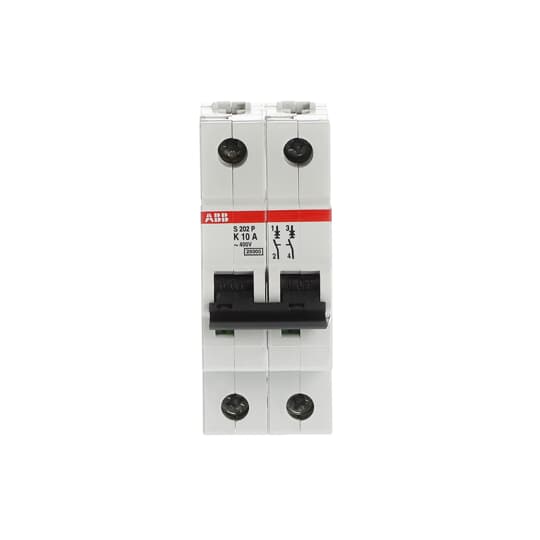

ABB S202P-K10 Miniature Circuit Breaker - Industrial Automation Part
ABB S202P-K10 Miniature Circuit Breaker - Industrial Automation Part

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB S202P-K42 2P K42A 25kA MCB

SKU: 2CDS282001R0427
(0)
$56.85
Only 10 units left
Condition
Free standard shipping on orders of $500 and above
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
ABB
S202P-K42
Miniature Circuit Breaker · System pro M compact
⚡ Key Ratings at a Glance
Rated Current
42 A
Poles
2P
Breaking Capacity
25 kA
Characteristic
Type K
Voltage
400V AC
Series
S200P
Width
35 mm
Weight
0.25 kg
📋 Technical Specifications
Product Type Miniature Circuit Breaker
Product ID (SKU) 2CDS282001R0427
Model S202P-K42
Series ABB S200P
Rated Current (In) 42 A
Tripping Characteristic Type K
Number of Poles 2P
Breaking Capacity (Icn) 25 kA
Rated Voltage 400V AC
Frequency 50/60 Hz
Width 35 mm
Weight 0.25 kg
Mounting DIN Rail (TH35-15 / TH35-7.5)
Protection Rating IP20 (IP40 with cover)
Operating Temperature -25°C to +55°C
Standards IEC/EN 60898-1, IEC/EN 60947-2
🔧 Applications & Features
Type K tripping characteristic – trips at 8-14× In, optimized for motor protection and inductive loads.
Typical Applications:
  • Motor protection, inductive loads, industrial machinery, transformer-fed circuits
  • Industrial automation and control panels
  • Commercial and residential distribution boards
  • Motor protection and power distribution
System pro M compact® — ABB's comprehensive range of modular DIN rail products. Features thermal-magnetic tripping for overload and short-circuit protection, energy limiting class 3, and compatibility with a wide range of accessories. Compact design saves installation space.
✓ Compliance & Approvals
  • IEC/EN 60898-1, IEC/EN 60947-2
  • RoHS compliant (EU Directive 2011/65/EU)
  • REACH compliant
  • CE marked
  • IEC/EN certified
ABB System pro M compact® | SHLY-PLC, an independent supplier | New · In Stock. SHLY-PLC is not affiliated with, sponsored or endorsed by ABB.

Frequently Asked Questions

Q: What is the warranty for ABB S202P-K42?

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Q: How fast can you ship S202P-K42?

A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available.

Q: Is S202P-K42 compatible with ABB systems?

A: Yes, S202P-K42 is designed for full compatibility with ABB ecosystem. Contact our technical team for integration support.

Standard (US & Canada, tracked courier): delivered in 5–8 business days. In-stock items are processed within 2–4 business days. USD 25 flat rate on orders under $500.00; free on orders of $500.00 and above.

Express (DHL Express / FedEx International): upgraded expedited delivery in 2–4 business days. The Express surcharge is calculated at checkout based on destination and order weight.

Non-Stock / On-Order items ship on request: dispatch time is confirmed before your order — see our Shipping Policy. Shipping charges and available services are displayed at checkout. See the Shipping Policy for details.

Every product is covered by a 12-month seller warranty provided by SHLY-PLC, effective from the date of delivery, against defects in materials and workmanship under normal use.

This warranty does not cover damage from misuse, improper installation, power surges, neglect, unauthorized repair, or normal wear and tear. See our Return Policy for warranty-claim instructions.
★★★★★

No reviews yet. Be the first to review this product!
