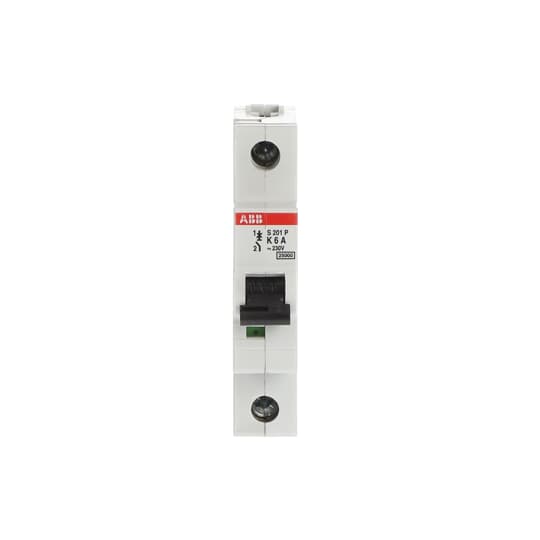

2CDS281001R0377 ABB - S201P-K6 - industrial automation part - image 1
2CDS281001R0377 ABB - S201P-K6 - industrial automation part - image 1

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB S201P-D37 1P D37A 25kA MCB

SKU: 2CDS281001R0377
(0)
$44.19
Only 10 units left
Condition
Free standard shipping on orders of $500 and above
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
ABB
S201P-D37
Miniature Circuit Breaker · System pro M compact
⚡ Key Ratings at a Glance
Rated Current
37 A
Poles
1P
Breaking Capacity
25 kA
Characteristic
Type D
Voltage
230/400V AC
Series
S200P
Width
17.5 mm
Weight
0.125 kg
📋 Technical Specifications
Product Type Miniature Circuit Breaker
Product ID (SKU) 2CDS281001R0377
Model S201P-D37
Series ABB S200P
Rated Current (In) 37 A
Tripping Characteristic Type D
Number of Poles 1P
Breaking Capacity (Icn) 25 kA
Rated Voltage 230/400V AC
Frequency 50/60 Hz
Width 17.5 mm
Weight 0.125 kg
Mounting DIN Rail (TH35-15 / TH35-7.5)
Protection Rating IP20 (IP40 with cover)
Operating Temperature -25°C to +55°C
Standards IEC/EN 60898-1, IEC/EN 60947-2
🔧 Applications & Features
Type D tripping characteristic – trips at 10-20× In, designed for high inrush loads such as transformers and motors.
Typical Applications:
  • High inrush loads, transformer protection, welding equipment, large motor circuits
  • Industrial automation and control panels
  • Commercial and residential distribution boards
  • Motor protection and power distribution
System pro M compact® — ABB's comprehensive range of modular DIN rail products. Features thermal-magnetic tripping for overload and short-circuit protection, energy limiting class 3, and compatibility with a wide range of accessories. Compact design saves installation space.
✓ Compliance & Approvals
  • IEC/EN 60898-1, IEC/EN 60947-2
  • RoHS compliant (EU Directive 2011/65/EU)
  • REACH compliant
  • CE marked
  • IEC/EN certified
ABB System pro M compact® | SHLY-PLC, an independent supplier | New · In Stock. SHLY-PLC is not affiliated with, sponsored or endorsed by ABB.
