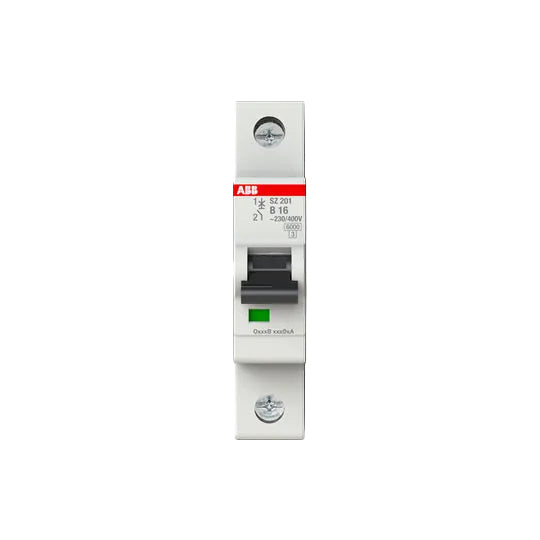

ABB SZ201-B16 Miniature Circuit Breaker 1P 16A B Curve

SKU: 2CDS251025R1165
(0)
$16.55
Only 10 units left
Condition
Free standard shipping on orders of $500 and above
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
ABB SZ200 Series

SZ201-B16

Miniature Circuit Breaker — Single Pole, 16A Rated

Current
16A
Poles
1P
Breaking
4.5kA
Order Code
2CDS251025R1165
Trip Curve
B curve
3-5× In instantaneous trip
Rated Voltage
230/400V AC

Application: General purpose, resistive loads. Ideal for 1p circuits requiring reliable overcurrent and short-circuit protection per IEC/EN 60898-1.

Technical Specifications
Series ABB SZ200
Model SZ201-B16
Order Code (SKU) 2CDS251025R1165
Number of Poles 1P
Rated Current (In) 16 A
Tripping Characteristic B curve — 3-5× In instantaneous trip
Rated Short-Circuit Breaking Capacity (Icn) 4.5kA at 230/400V
Rated Voltage (Ue) 230/400V AC
Reference Temperature 30 °C
Degree of Protection IP20 (installed) / IP40 (mounting)
Mounting DIN rail (TH35)
Electrical Life 4000 cycles
Mechanical Life 20000 cycles
Standard IEC/EN 60898-1
Operating Temperature -5 °C to +40 °C

Typical Applications

Residential lighting circuits
General socket outlets
Resistive heating loads
Small appliance protection

Key Features

  • Precision B-curve tripping for optimal circuit protection
  • 4.5kA short-circuit breaking capacity for reliable fault protection
  • Compact DIN rail mounting for efficient panel space utilization
  • Visually accessible trip indicator for quick status identification
  • Double insulation (Class II) for enhanced safety
  • Compatible with ABB accessory range (auxiliary contacts, shunt trips)

Compliance & Certifications

✓ IEC/EN 60898-1 ✓ CE Marked ✓ RoHS Compliant ✓ UL Listed (where applicable)

Order Code: 2CDS251025R1165 | Model: SZ201-B16
