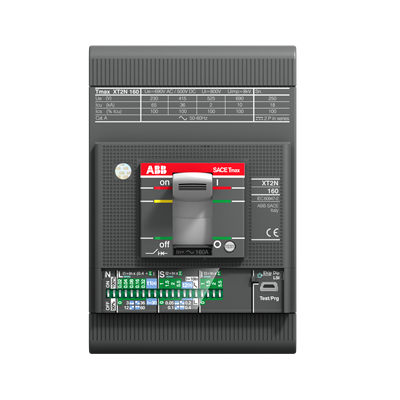

The XT2N 160 Ekip Dip is a three-pole molded case circuit breaker (MCCB) from the ABB SACE Tmax XT family, providing overcurrent, short-circuit and fault protection for low-voltage power distribution and motor circuits. Its solid-state electronic trip unit delivers accurate, adjustable protection in a compact frame.
The breaker has a frame size of 160 A with a rated current (In) of 100 A and rated operational voltage of 690 V AC. Breaking capacity is 36 kA at 380-415 V AC (Icu = Ics) and 65 kA at 220-240 V AC. The Ekip Dip LS/I trip unit provides adjustable long-time (overload) and short-time (short-circuit) protection plus earth fault indication logic. Mechanical durability is 25,000 operations and electrical durability 8,000 operations.
Supplied with front bolt terminals (F-F connection) and built to IEC 60947-2, the XT2N 160 weighs 1.4 kg and is used in distribution boards, machinery supply panels and motor control centers requiring 100 A three-phase protection with high breaking capacity.
| Product Series | ABB SACE Tmax XT |
| Model | XT2N 160 Ekip Dip LS/I In=100A 3p F F (order code 1SDA067057R1) |
| Product Type | Molded case circuit breaker (MCCB) |
| Number of Poles | 3 |
| Frame Current (Iu) | 160 A |
| Rated Current (In) | 100 A |
| Rated Operational Voltage (Ue) | 690 V AC |
| Breaking Capacity (Icu = Ics) | 36 kA at 380-415 V AC; 65 kA at 220-240 V AC |
| Trip Unit | Ekip Dip LS/I solid-state electronic release |
| Protection Functions | Long-time (L), short-time (S), earth fault indication (I) |
| Mechanical Durability | 25,000 operations |
| Electrical Durability | 8,000 operations |
| Terminals | Front bolt terminals (F-F) |
| Standards | IEC 60947-2 |
| Degree of Protection | IP20 |
| Net Weight | 1.4 kg |
