OMRON

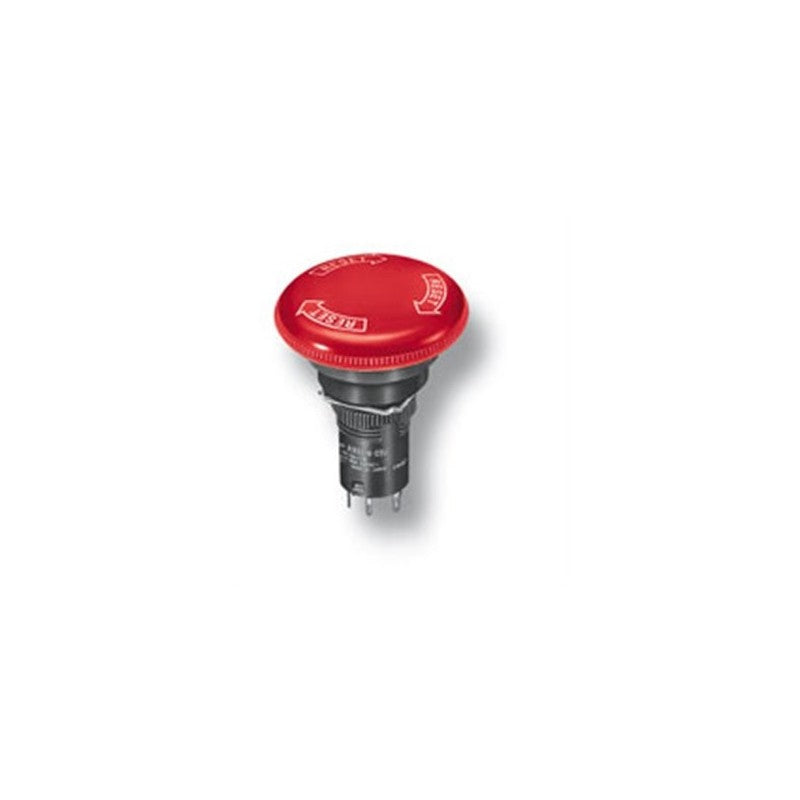

A165E-S-01
A165E-S-01 is an OMRON industrial automation product. The specifications below are taken from OMRON's official product data for this series; no values have been added from third-party sources.
Order numberA165E-S-01
OMRON serieshttps://www.ia.omron.com/products/family/1104/specification.html
WeightApprox. 16 g (in case of 2NC(2) Switches)
How it works
Weight is Approx. 16 g (in case of 2NC(2) Switches).
Specifications
Rated voltageResistive load
125 VAC 250 VAC 30 VDC5 A 3 A 3 A
125 VAC 250 VAC 30 VDC1 A 0.5 A 1 A
250 VAC 30 VDC3 A 3 A
250 VAC 30 VDC0.5 A 1 A
CQC (CCC)GB/T14048.5
TypeEmergency Stop Switch
Electrical10 operations/minute max.
Insulation resistance100 MΩ min. (at 500 VDC)
Between terminals of different polarity2,000 VAC 50/60 Hz for 1 min
Between each terminal and ground2,000 VAC 50/60 Hz for 1 min
Electrical100,000 operations min.
Electric shock protection classClass II
PTI (tracking characteristic)175
Degree of contamination3 (EN60947-5-1)
WeightApprox. 16 g (in case of 2NC(2) Switches)
Ambient operating temperature-10 to 55°C (with no icing or condensation)
Ambient operating humidity35% to 85%
Ambient storage temperature-25 to 65°C (with no icing or condensation)
Order number
A165E-S-01 — OMRON official product data
Official source
https://www.ia.omron.com/products/family/1104/specification.html
FAQ
What is the weight of the A165E-S-01?
Approx. 16 g (in case of 2NC(2) Switches).
What is the OMRON order number for this product?
A165E-S-01.
Where do the specifications come from?
OMRON official product data for this series.
