Schneider Electric · TeSys contactor

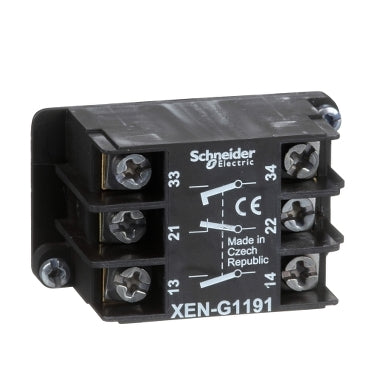

XENG1191 is a Schneider Electric industrial component with Rated operational voltage 600 V AC; Operating temperature -25...+60 °C; Mounting 35 mm DIN rail or plate. It is used in control panels, machine builds, spare-part replacements where the installed unit is matched to the original catalog number and a compact, documented part is required.
| Electrical | |
| Rated operational voltage | 600 V AC |
|---|---|
| Rated insulation voltage Ui | 690 V conforming to IEC 60947-4-1 |
| Rated impulse withstand Uimp | 6 kV conforming to IEC 60947 |
| Mechanical | |
| Mounting | 35 mm DIN rail or plate |
| Environment and compliance | |
| Operating temperature | -25...+60 °C |
| Certifications | CE, UL, CSA, CCC, EAC, Marine |
Values follow the Schneider Electric TeSys contactor specification for this catalog number; parameters not confirmed for this variant are omitted rather than estimated.
| Schneider Electric TeSys contactor variants | |||
| Catalog number | Rated operational voltage | Mounting | |
|---|---|---|---|
| XENG1191 (this page) | 600 V AC | 35 mm DIN rail or plate | |
| XACA9413 | <= 690 V AC 25...400 Hz | 35 mm DIN rail or plate | |
| XACA9415 | <= 690 V AC 25...400 Hz | 35 mm DIN rail or plate | |
| XAL-D102 | <= 690 V AC 25...400 Hz | 35 mm DIN rail or plate | |
All variants share the same TeSys contactor footprint and terminal layout; the columns above show where they differ. Selecting a different catalog number changes the electrical interface, not the mounting.
The XENG1191 is the device-level element in a Schneider Electric industrial component installation. It receives the field signals and control supply listed above — 600 V AC — and switches or conditions the load within the 600 V AC ratings shown in the Specifications table. Wiring and protective devices are sized to those same numbers, not to a generic assumption.
Typical installations place it in control panels, machine builds, spare-part replacements, where the unit is matched to the original catalog number and the enclosure provides 35 mm DIN rail or plate support. Record the catalog number and revision from the nameplate of the installed unit before specifying a like-for-like spare.
Q.What supply does this device require?
It requires 600 V AC. Size the supply source to the same rating shown in the Specifications table.
Q.What are the key electrical ratings?
The confirmed ratings include 600 V AC and CE, UL, CSA, CCC, EAC, Marine marking. Cross-check them against the installed unit's nameplate.
Q.How is this device mounted?
It mounts by 35 mm DIN rail or plate. Confirm the cutout or rail before ordering a like-for-like spare.
Q.What is the operating temperature range?
The confirmed operating range is -25...+60 °C. Panels running beyond it need derated sizing.
Q.What replaces a unit that is no longer in production?
For a like-for-like spare, record the catalog number and revision from the nameplate; a current-production equivalent is identified by matching function and ratings.
