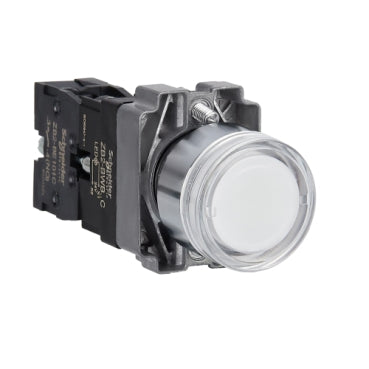

Schneider Electric · Push Button / Contact Block
XB2BW31B1C is a Schneider Electric industrial component with Rated operational voltage Up to 600 V AC / 250 V DC; Enclosure rating IP66 (IEC 60529); Operating temperature -40...70 °C. It is used in control panels, machine builds, spare-part replacements where the installed unit is matched to the original catalog number and a compact, documented part is required.
| Electrical | |
| Rated operational voltage | Up to 600 V AC / 250 V DC |
|---|---|
| Mechanical | |
| Mounting | DIN rail / panel |
| Terminal type | screw clamp / Faston |
| Enclosure rating | IP66 (IEC 60529) |
| Environment and compliance | |
| Operating temperature | -40...70 °C |
| Storage temperature | -40...70 °C |
| Certifications | CE, UL listed, CSA, BV, DNV |
| Degree of protection | IP66 (IEC 60529), IP67, IP69 |
Values follow the Schneider Electric Push Button / Contact Block specification for this catalog number; parameters not confirmed for this variant are omitted rather than estimated.
| Schneider Electric Push Button / Contact Block variants | |||
| Catalog number | Rated operational voltage | Mounting | |
|---|---|---|---|
| XB2BW31B1C (this page) | Up to 600 V AC / 250 V DC | DIN rail / panel | |
| XB2BW31M1C | Up to 600 V AC / 250 V DC | DIN rail / panel | |
| XB2BW33B1C | Up to 600 V AC / 250 V DC | DIN rail / panel | |
| XB2BW33M1C | Up to 600 V AC / 250 V DC | DIN rail / panel | |
All variants share the same Push Button / Contact Block footprint and terminal layout; the columns above show where they differ. Selecting a different catalog number changes the electrical interface, not the mounting.
The XB2BW31B1C is the device-level element in a Schneider Electric industrial component installation. It receives the field signals and control supply listed above — Up to 600 V AC / 250 V DC — and switches or conditions the load within the Up to 600 V AC / 250 V DC ratings shown in the Specifications table. Wiring and protective devices are sized to those same numbers, not to a generic assumption.
Typical installations place it in control panels, machine builds, spare-part replacements, where the unit is matched to the original catalog number and the enclosure provides DIN rail / panel support. Record the catalog number and revision from the nameplate of the installed unit before specifying a like-for-like spare.
Q.What supply does this device require?
It requires Up to 600 V AC / 250 V DC. Size the supply source to the same rating shown in the Specifications table.
Q.What are the key electrical ratings?
The confirmed ratings include Up to 600 V AC / 250 V DC and CE, UL listed, CSA, BV, DNV marking. Cross-check them against the installed unit's nameplate.
Q.How is this device mounted?
It mounts by DIN rail / panel. Confirm the cutout or rail before ordering a like-for-like spare.
Q.What is the operating temperature range?
The confirmed operating range is -40...70 °C. Panels running beyond it need derated sizing.
Q.What replaces a unit that is no longer in production?
For a like-for-like spare, record the catalog number and revision from the nameplate; a current-production equivalent is identified by matching function and ratings.
