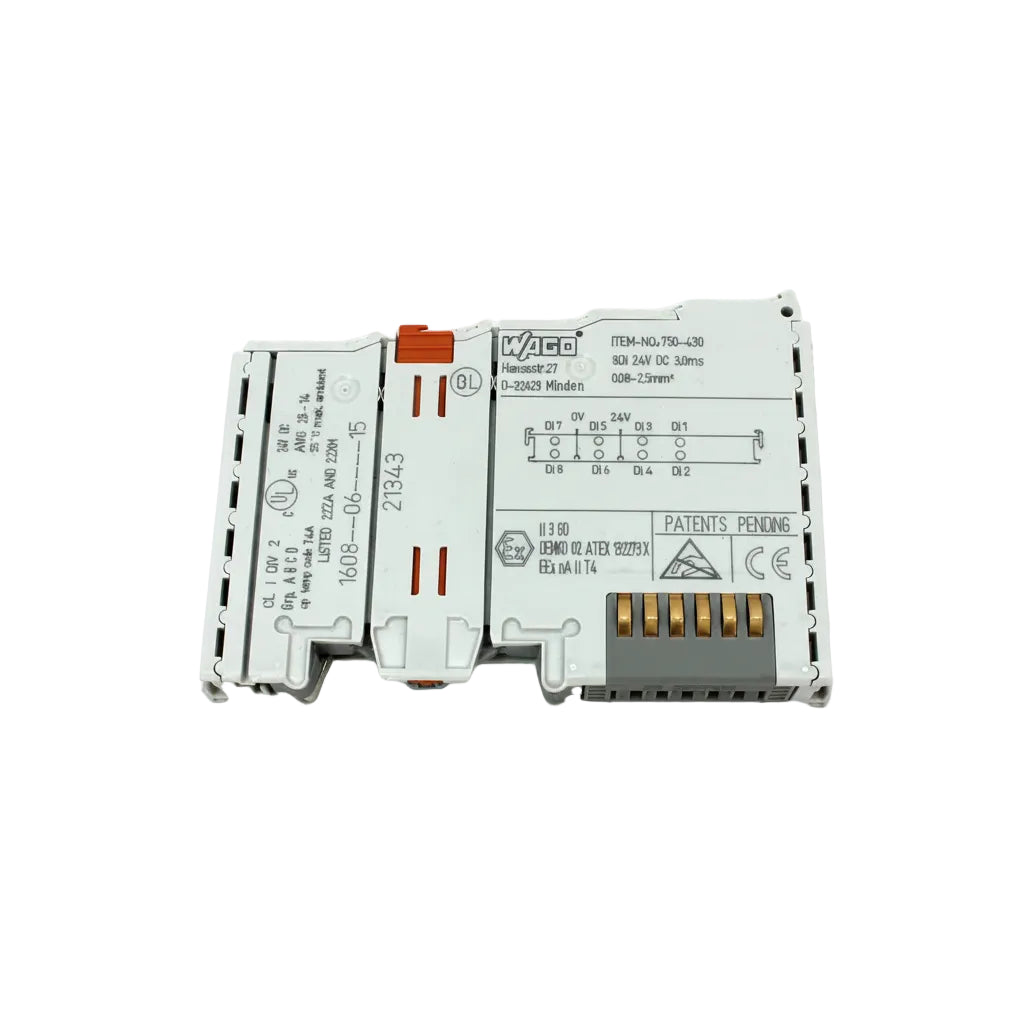

The WAGO 750-430 is a digital input module for industrial automation and control systems. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Key Specifications | |
| Number of digital inputs | 8 |
| Number of Channels | 8 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |
| Sensor connection | 8 x (1-wire) |
| Input characteristic | high-side switching |
| Input filter | 3ms |
| Input current per channel for signal (1) typ. | 2.8mA |
| Type Designation | |
| Order code | 750-430 |
| Product family / base order code | 750 |
| Version / revision suffix | 430 |
| Power Supply | |
| Signal type (voltage) | 24 VDC |
| Input current per channel for signal (1) typ. | 2.8mA |
| Voltage range for signal (0) | −3 … +5 VDC |
| Voltage range for signal (1) | 15 … 30 VDC |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (system supply) | 17mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Number of incoming power jumper contacts | 2 |
| I/O & Signals | |
| Number of digital inputs | 8 |
| Number of Channels | 8 |
| Input characteristic | high-side switching |
| Input filter | 3ms |
| Input current per channel for signal (1) typ. | 2.8mA |
| Input data width (internal) max. | 8Bit |

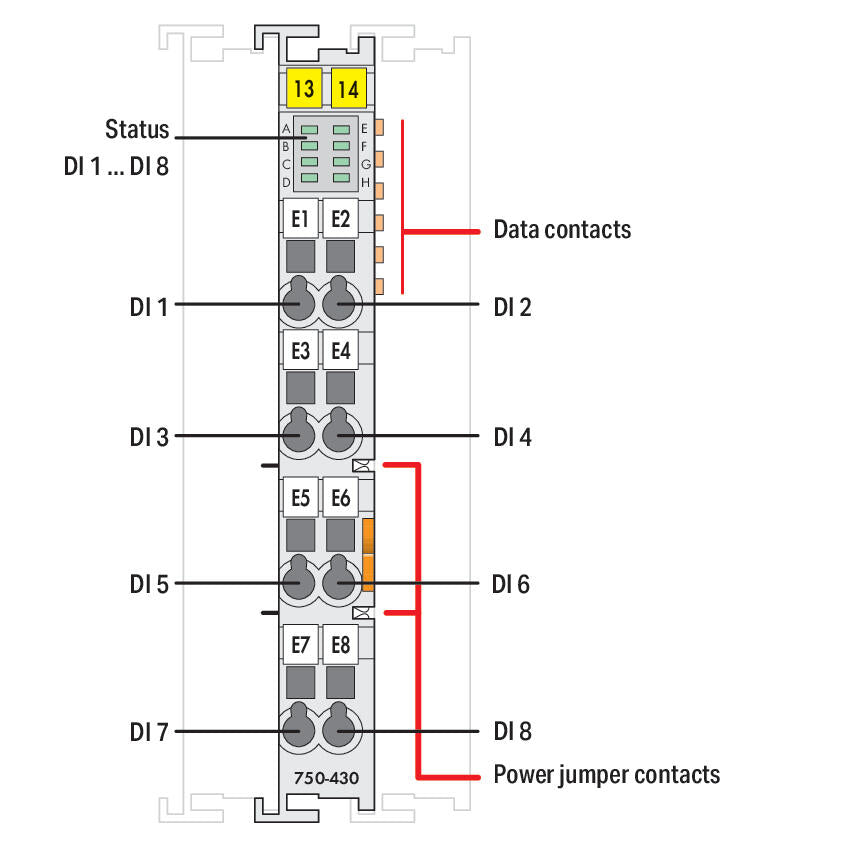

| Connection technology: inputs / outputs | 8 x CAGE CLAMP® (inputs) |
| Mechanical & Environmental | |
| Input data width (internal) max. | 8Bit |
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 67.8 mm / 2.669 inches |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
| Mounting type | DIN-35 rail |
| Weight | 47g |
| Ambient temperature (operation) | 0 … +55 °C |
| Compliance, Approvals & Standards | |
| Product approvals | CE, UKCA, UL/cUL, RoHS |
| EMC | EN 61000-6-x / EN 55011 (industrial environment) |
| Safety standard | IEC/EN 61131 / 61800 / 60947 (product-specific) |
