WAGO

WAGO 222-412 Splicing Connector

SKU: 222-412
(0)
$7.75
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

The WAGO 222-412 is a terminal block for industrial automation and control systems. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Key Specifications
Clamping units 2
Total number of potentials 1
Connection technology CAGE CLAMP®
Actuation type Lever
Note (actuation) Do not leave the 222 Series levers in the open position for extended periods. High spring forces may impair the ability to connect conductors at the maximum cross-section.
Connectable conductor materials Copper
Solid conductor 0.08 … 2.5 mm² / 28 … 12 AWG
Stranded conductor 0.08 … 2.5 mm² / 28 … 12 AWG
Type Designation
Order code 222-412
Product family / base order code 222
Version / revision suffix 412
Mechanical & Environmental

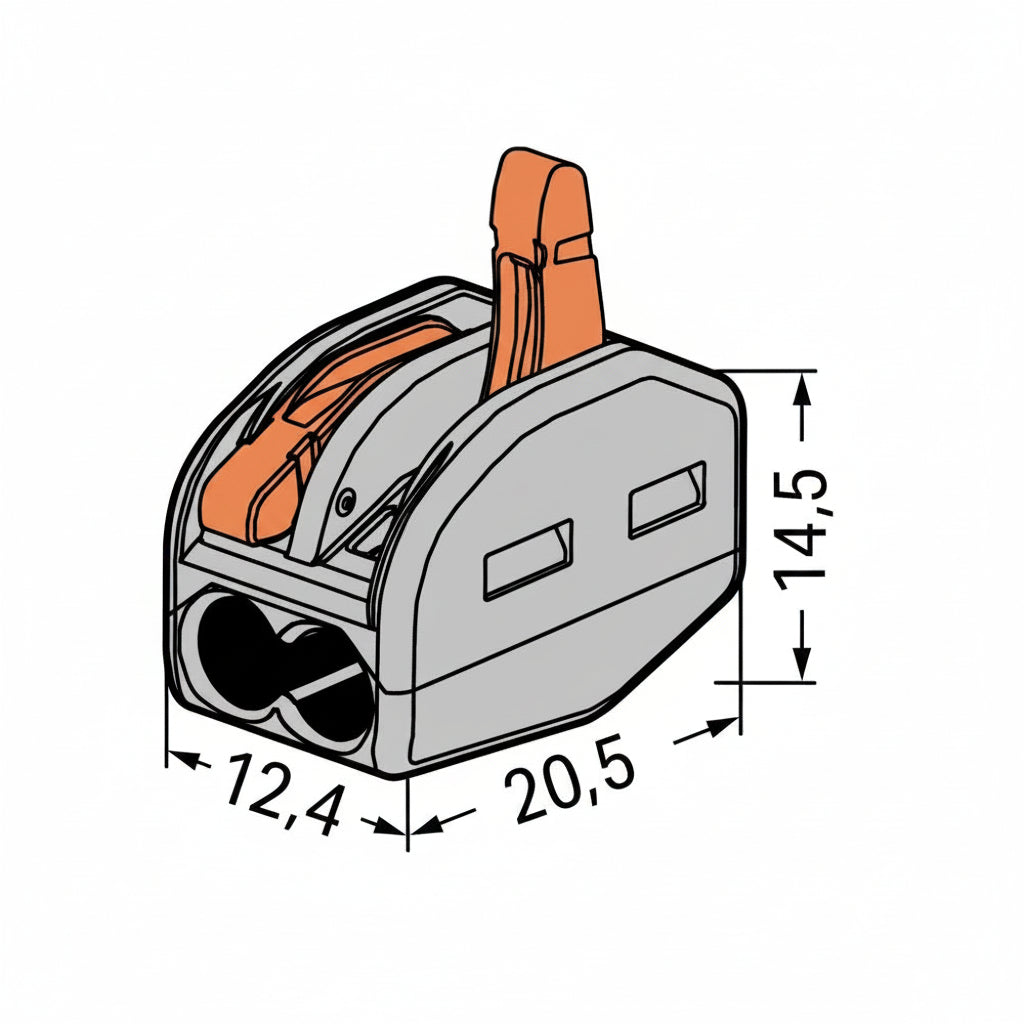

Width 12.4 mm / 0.488 inches
Height 14.5 mm / 0.571 inches
Depth 20.5 mm / 0.807 inches
Weight 3.1g
Ambient temperature (operation) +40 °C
Continuous operating temperature 85 °C
Compliance, Approvals & Standards
Product approvals CE, UKCA, UL/cUL, RoHS
EMC EN 61000-6-x / EN 55011 (industrial environment)
Safety standard IEC/EN 61131 / 61800 / 60947 (product-specific)

Compatibility & Cross-References

  • Cross-references: send your existing part number or application and our technical team confirms fitment, protocol and wiring before you order.

Applications

  • The WAGO 222-412 is used for organized, reliable wiring and signal distribution in control and distribution cabinets.
  • The 847-series LPW test busbar is specifically used for safe shorting and testing of current-transformer secondary circuits in metering panels.
  • Typical deployments include energy metering, switchgear and indirect/semi-indirect measurement systems.
  • It supports panel builders and maintenance teams requiring safe, tool-friendly CAGE CLAMP connections.
