Schneider Electric VW3M3302 | Variable Frequency Drive

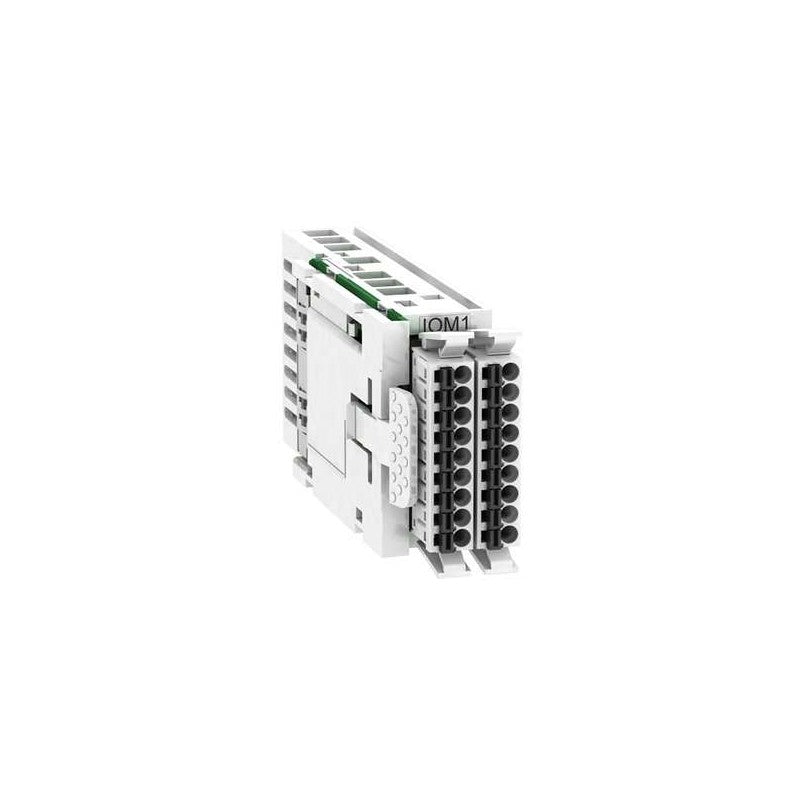

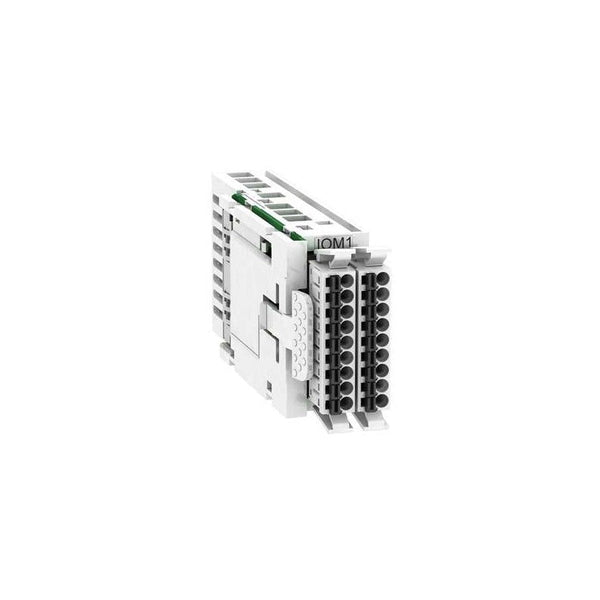

VW3M3302 Schneider Electric - Schneider Electric VW3M3302 I/O Module for Lexium 32M. Additional I/O module for Lexium 32M servo drives, providing 4 discrete inputs, 2 discrete outputs, 2 analog inputs, and 2 analog outputs with spring terminals.

• Brand: Schneider Electric
• Category: I/O Module
• Product Type: Additional I/O Module
• Series: Lexium 32M
• Product Compatibility: Lexium 32M servo drives
• Discrete Inputs: 4 (3...5 V / 15...30 V, 2.5 mA)
• Discrete Outputs: 2 (≤ 30 V, ≤ 100 mA)
• Analog Inputs: 2 (-10...+10 V, 20 kΩ, 14-bit resolution)
• Analog Outputs: 2 (-10...+10 V, 0...20 mA, 470 Ω, 12-bit resolution)
• Response Time: 0.25 ms
• Protection Type: Reverse polarity protection (input), Short-circuit protection (output)
• Terminal Type: Spring terminal
• Weight: 0.45 kg
• Country of Origin: DE
• Green Premium: Yes
• RoHS Status: Exempt

Additional I/O expansion for Lexium 32M servo drives in motion control applications requiring mixed digital and analog signals.
