Siemens A9530-C50-04-86 SIMATIC OP27 Mainboard (6AV3627-1LK00-1AX0)

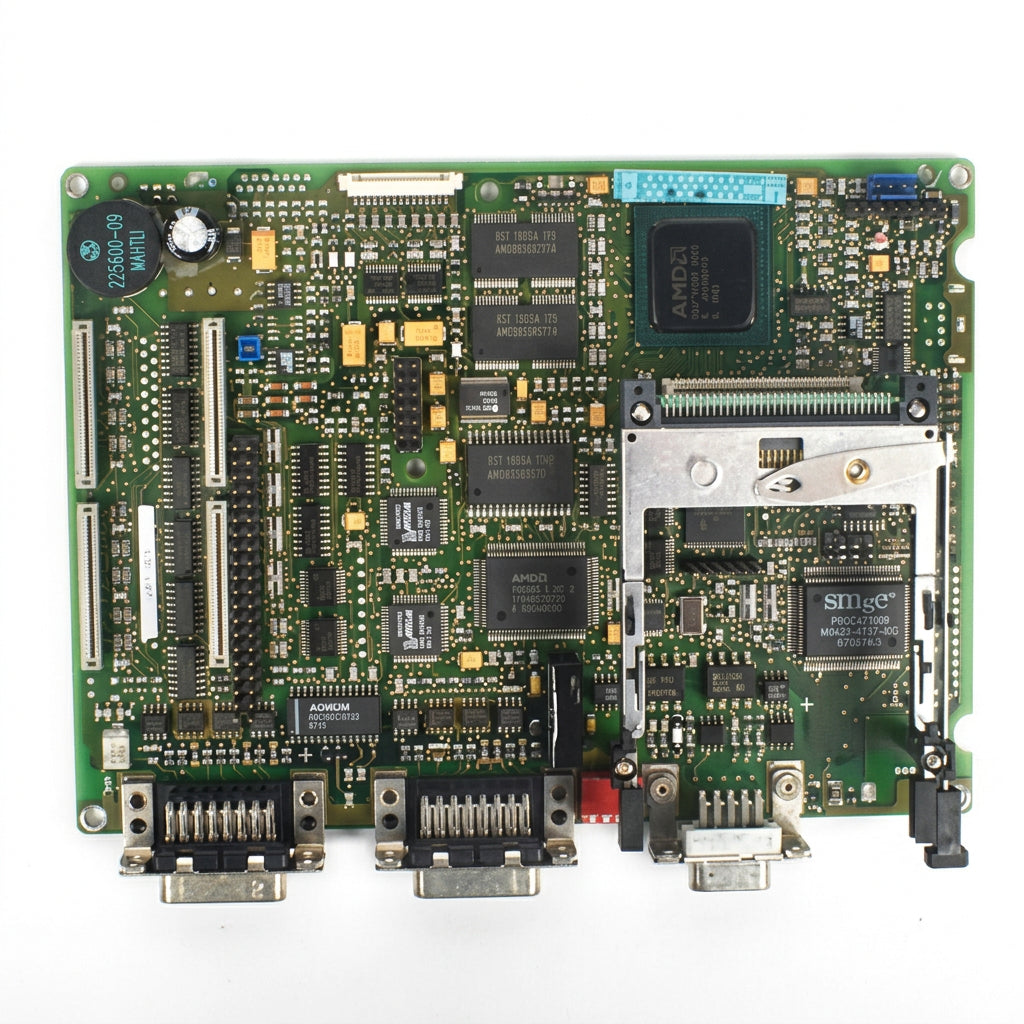

The Siemens A9530-C50-04-86 is the mainboard / PC board of the SIMATIC OP27 operator panel, matching panel references 6AV3627-1JK00-1AX0 (OP27) and 6AV3627-1LK00-1AX0 (OP27 high-resolution). It is an internal control board (PCB, 94V-0, M307), assembly 200003900/A00, supplied as a spare part for the repair/rebuild of OP27 panels. Technical data sourced from spare-part listings; the SIMATIC OP27 series is discontinued by the manufacturer. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit is visually inspected and functionally checked before shipment.

Key Features

  • Model: A9530-C50-04-86 — SIMATIC OP27 mainboard
  • Matching panel: 6AV3627-1JK00-1AX0 / 6AV3627-1LK00-1AX0 (OP27)
  • Type: Industrial PCB / control module (assembly 200003900/A00)
  • Lifecycle: Discontinued by manufacturer (SIMATIC OP27 series)

Technical Specifications

Siemens SIMATIC OP27 mainboard — reference data (spare-part source)

Technical Specifications
Product / Family Siemens SIMATIC OP27 operator panel · mainboard
Board Reference A9530-C50-04-86 · assembly 200003900/A00
Matching Panel 6AV3627-1JK00-1AX0 (OP27) · 6AV3627-1LK00-1AX0 (OP27 HiRes)
Component Type Industrial PCB / electronic control module (94V-0, M307)
Panel Display (OP27) 5.7 in STN mono CSTN, 320×240 px, CCFL backlight
Interfaces (OP27) RS-232 · RS-485 (MPI / PROFIBUS)
Front Protection (OP27) IP65 / NEMA 4x (front face)
Lifecycle Discontinued by manufacturer (SIMATIC OP27 series)
Model note: A9530-C50-04-86 is the internal mainboard / PC board of the Siemens SIMATIC OP27 operator panel (panel refs 6AV3627-1JK00-1AX0 / 6AV3627-1LK00-1AX0). It is a spare-part board for panel repair, not a complete HMI. The OP27 series is obsolete — no official Siemens online product page or datasheet exists; reference data above is compiled from spare-part sources.

Compatibility & Cross-References

Repair/replacement board for SIMATIC OP27 operator panels (6AV3627-1JK00-1AX0, 6AV3627-1LK00-1AX0). Verify your panel reference and board revision before ordering. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Repair / rebuild of Siemens SIMATIC OP27 operator panels
  • Spare-part replacement for legacy HMI panel maintenance
  • Legacy machine HMI support in industrial plants

Warranty & Shipping

  • Availability: Stock and condition vary; contact us for real-time stock status and tested condition.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery about 5-8 business days, express available, free shipping over $500.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Siemens part A9530-C50-04-86 is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is the A9530-C50-04-86?

A: A Siemens SIMATIC OP27 operator-panel mainboard (internal PC board).

Q: Which panel does it belong to?

A: OP27, refs 6AV3627-1JK00-1AX0 / 6AV3627-1LK00-1AX0.

Q: Is it a complete HMI?

A: No — it is the internal mainboard, a spare part for panel repair.

Q: Is it still produced?

A: No — the SIMATIC OP27 series is discontinued by the manufacturer.
