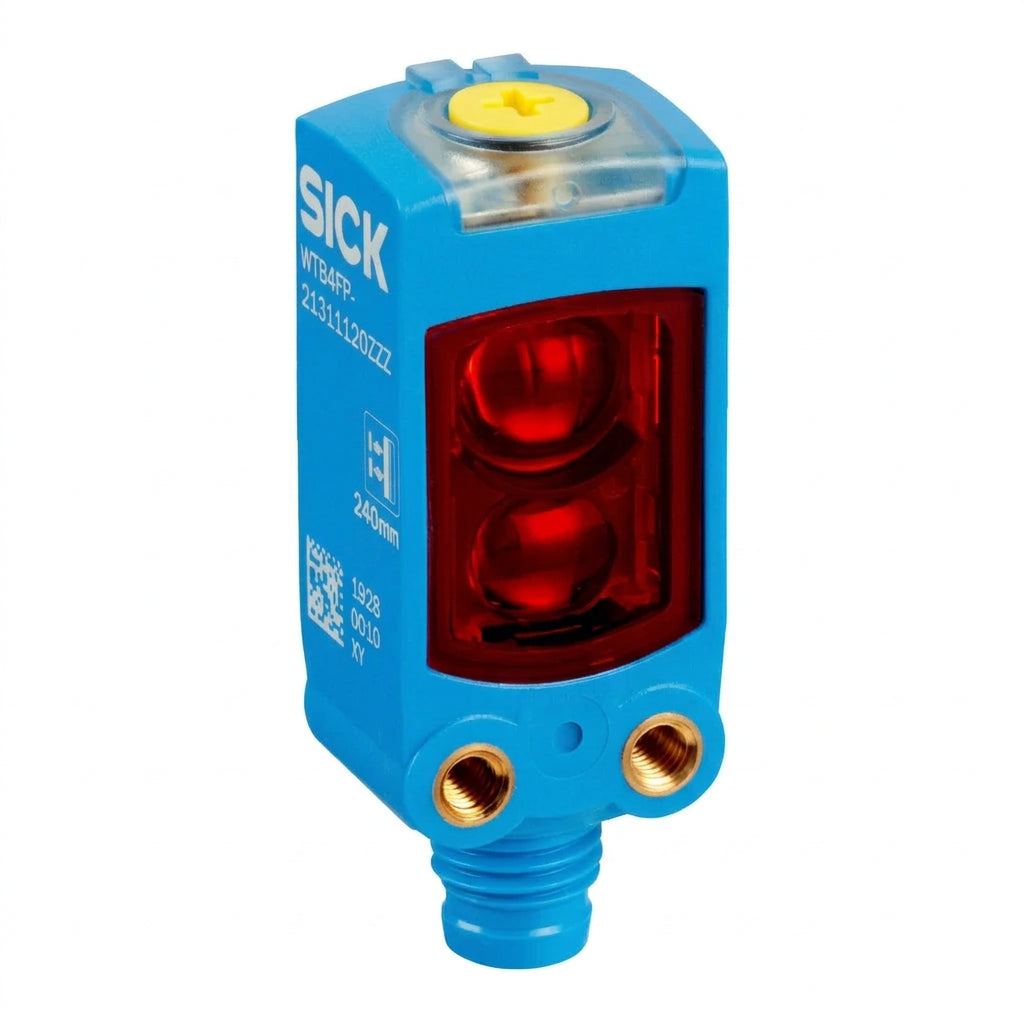

| Brand | SICK |
| Manufacturer Type (Model) | WTB4FP-21311120ZZZ |
| SICK Part No. | 1222999 |
| Series / Family | W4F miniature photoelectric sensors |
| Product Type | Photoelectric proximity sensor |
| Detection Principle | Background suppression |
| Condition | New |
| Sensing range min. / max. | 4 mm / 220 mm (reference object: 90 % white, DIN 5033) |
| Adjustable suppression threshold | 15 mm ... 220 mm |
| Preset sensing range | 120 mm |
| Recommended range (best performance) | 40 mm ... 140 mm |
| Smallest detectable object (typ.) | 0.2 mm at 130 mm (90 % remission) |
| Light source | PinPoint LED, visible red light |
| Wavelength | 635 nm |
| Light spot | Point-shaped, Ø 4.2 mm at 130 mm |
| Squint angle | < ±1.5° at +23 °C |
| LED service life / photobiological class | 100,000 h at +25 °C; risk group free (EN/IEC 62471) |
| Adjustment | Teach-Turn setting with BluePilot range indicator |
| Digital outputs | 1 |
| Output type | Push-pull: PNP/NPN (selectable polarity); light / dark switching |
| Output current, max. | ≤ 100 mA |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Residual ripple | ≤ 5 Vpp |
| Current consumption | ≤ 25 mA, no load, at UB = 24 V |
| Usage category | DC-12 / DC-13 (EN 60947-5-2) |
| Protection class | III |
| Output protection | Reverse-polarity, overcurrent and short-circuit protected |
| Response time | ≤ 500 µs |
| Repeatability | 150 µs |
| Switching frequency | 1,000 Hz (light/dark ratio 1:1) |
| Indicators | Blue BluePilot (range); green (power); yellow (received light / output status) |
| Safety parameters | MTTFD 642 years; DCavg 0 %; TM 20 years (EN ISO 13849); utilization rate 60 % |
| Housing | Rectangular, flat; VISTAL® plastic; front screen PMMA |
| Dimensions (W × H × D) | 16 mm × 40.1 mm × 12.1 mm |
| Connection | Male connector M8, 3-pin; pin 4 (black) = digital output Q |
| Weight (approx.) | 30 g |
| Mounting | M3 mounting holes; max. fixing torque 0.4 N·m; wall / side mounting |
| Enclosure rating | IP66, IP67 (EN 60529) |
| Operating ambient temperature | –40 °C ... +60 °C |
| Storage temperature | –40 °C ... +75 °C |
| Ambient light immunity | ≤ 50,000 lx (artificial light / sunlight) |
| Air humidity | 35 % ... 95 % relative humidity, non-condensing |
| Shock / vibration | 30 g, 11 ms (EN 60068-2-27); 10 Hz ... 1,000 Hz (EN 60068-2-6) |
| EMC / cleaning resistance | EN 60947-5-2; resistant to ECOLAB cleaning agents |
| Standards / approvals | CE; UL (File No. NRKH.E181493); RoHS compliant |
| Classifications | eCl@ss 27270904; ETIM EC002719; UNSPSC 39121528 |
Source: SICK product data sheet WTB4FP-21311120ZZZ (Part no. 1222999), W4F miniature photoelectric sensors. Recommended mounting bracket: BEF-W4-A (SICK part no. 2051628).
Type: SICK WTB4FP-21311120ZZZ | SICK Part No.: 1222999 | Category: Photoelectric Sensor
MOQ: 1 piece. Please submit model, quantity and destination for a quotation.
Q: What detection principle does the WTB4FP-21311120ZZZ use?
A: It is a background-suppression photoelectric proximity sensor. Objects within the teach-adjusted range are detected while brighter backgrounds behind the set threshold are suppressed behind the set threshold.
Q: How is the detection range set?
A: Use the Teach-Turn potentiometer together with the blue BluePilot indicator. The suppression threshold can be set from 15 mm to 220 mm; the sensor is preset at 120 mm and the best-performance window is 40 mm to 140 mm for a 90 % white reference object.
Q: How is the sensor connected?
A: Via a male M8 3-pin connector; pin 4 (black wire) carries the digital push-pull output Q. Supply range is 10 V DC to 30 V DC with reverse-polarity, overcurrent and short-circuit protection on the output.
