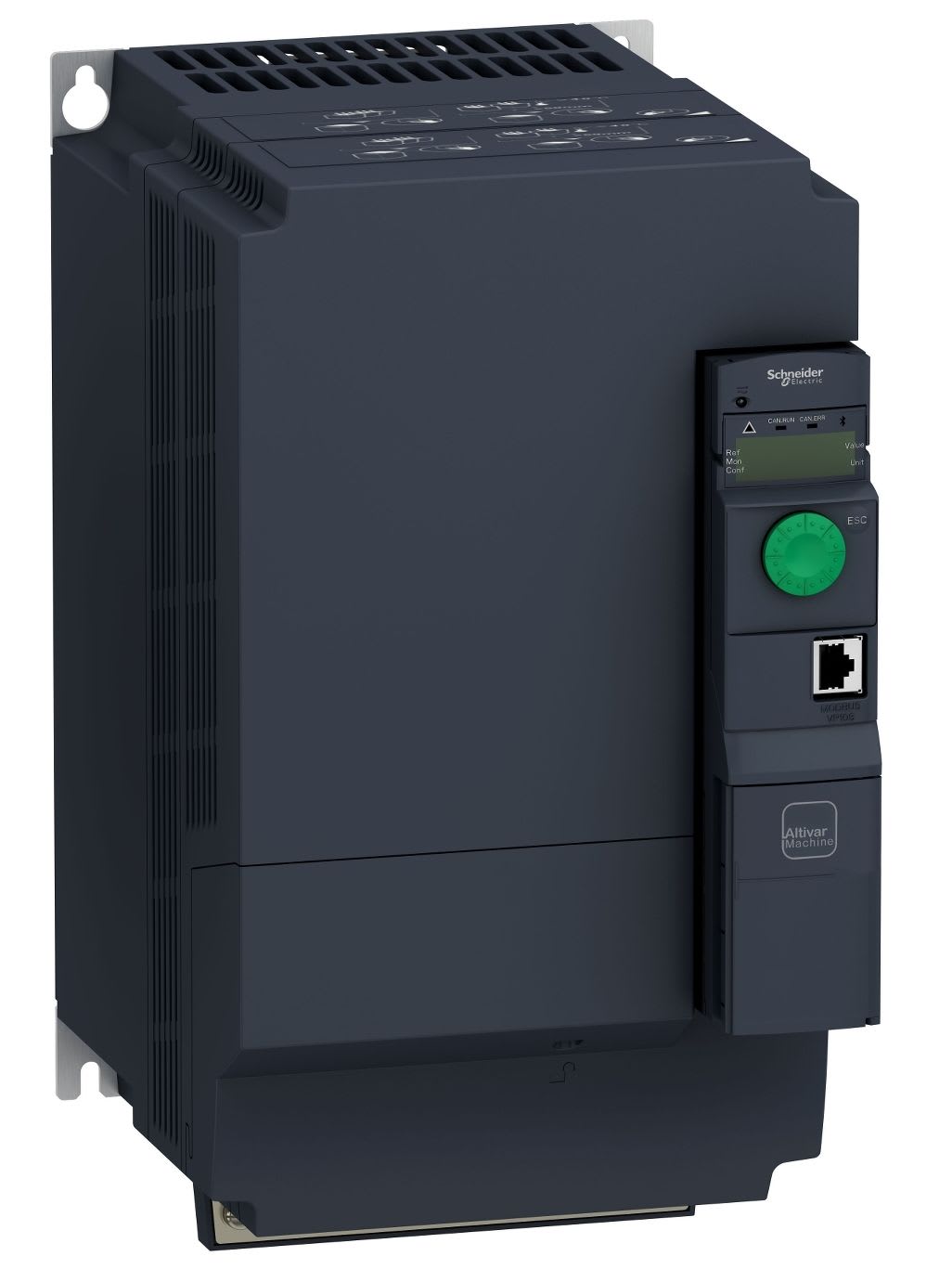

Schneider Electric ATV320D11NB4B VFD Drive

SKU: ATV320D11NB4B
(0)
$1,682.26
Available
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

ATV320D11NB4B Altivar Variable Speed Drive | Schneider Electric

The Schneider Electric ATV320D11NB4B is an altivar variable speed drive. The listed technical data shows a supply of 200...240 V - 15...10 %, communication via Modbus serial, rated IP20, based on the manufacturer's datasheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • [Us] rated supply voltage: 200...240 V - 15...10 %.
  • Communication Port Protocol: Modbus serial.
  • Motor power kW: 1.5 kW heavy duty.
  • IP degree of protection: IP20.
  • Net Weight: 3.5 lb(US) (1.6 kg).
  • Product Certifications: CE.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
Type Designation
Analogue input type AI1 voltage 0...10 V DC 30 kOhm 10 bits
Analogue output type Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits
Discrete input type STO safe torque off, 24 V DC1.5 kOhm
Discrete output type Open collector DQ+ 0…1 kHz 30 V DC 100 mA
Product Certifications CE
Relay output type Configurable relay logic R1A 1 NO 100000 cycles
Power Supply
[Us] rated supply voltage 200...240 V - 15...10 %
Maximum Input Current per Phase 17.8 A
Maximum output frequency 0.599 kHz
Motor power kW 1.5 kW heavy duty
Nominal switching frequency 4 kHz
Inputs & Outputs
Communication Port Protocol Modbus serial
nominal output current 8.0 A
Mechanical
Depth 6.2 in (158.0 mm)
Height 5.6 in (142.0 mm)
IP degree of protection IP20
Net Weight 3.5 lb(US) (1.6 kg)
Environmental
EMC filter Class C2 EMC filter integrated
Compliance, Approvals & Standards
Standards IEC 61800-5-1

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the Schneider Electric ATV320D11NB4B altivar variable speed drive, share your existing part number or project requirements and our team will cross-reference comparable in-stock Schneider Electric units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Conveyor, fan and pump control where adjustable motor speed and energy savings are required.
  • Material-handling, packaging and processing machinery needing smooth acceleration and torque control.
  • Retrofits and spares for existing drive-controlled production lines and machine tools.
  • Industrial automation panels requiring reliable variable-speed motor operation.

Warranty

  • Availability: ATV320D11NB4B is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Schneider Electric part ATV320D11NB4B is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the ATV320D11NB4B supplied in?

A: Each ATV320D11NB4B is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the ATV320D11NB4B ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the ATV320D11NB4B?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
