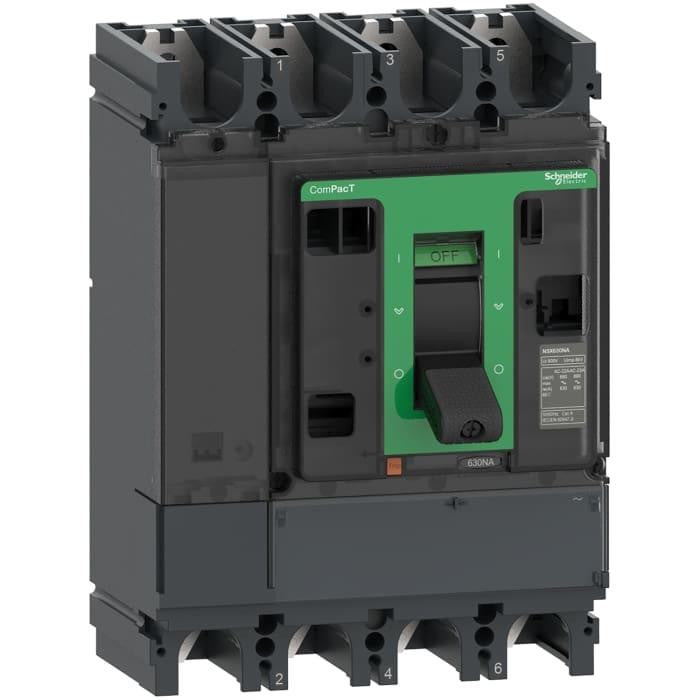

Schneider Electric C404400S ComPacT NSX400NA Switch Disconnector 4P 400A

SKU: C404400S
(0)
$859.88
In stock (91 units)
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

Schneider Electric C404400S ComPacT NSX400NA Switch Disconnector, 4P, 400A

The Schneider Electric C404400S is a ComPacT NSX400NA switch disconnector, 4 poles, fixed, with a conventional free-air thermal current of 400 A. It is used to control and isolate electrical distribution circuits and requires an upstream protection. Technical data sourced from the official Schneider Electric datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit is visually inspected and functionally checked before shipment.

Key Features

  • Model: C404400S — ComPacT NSX400NA switch disconnector
  • Poles: 4P (4 poles), fixed, backplate mounting
  • Rating: Ith 400 A @ 50 °C · AC-22A / AC-23A · Ue 690 V AC
  • Application: control and isolation of distribution circuits (requires upstream protection)
  • Lifecycle: Active (in production)

Technical Specifications

Official Schneider Electric Product Data — C404400S

Technical Specifications
Product / Range ComPacT NSX · NSX400NA switch disconnector
Poles 4P
[Ith] Conventional Free-Air Thermal Current 400 A at 50 °C
[Ie] Rated Operational Current AC-22A: 400 A · AC-23A: 400 A (220…690 V AC 50/60 Hz)
[Ue] Rated Operational Voltage 690 V AC 50/60 Hz
[Ui] Rated Insulation Voltage 800 V AC
[Icw] Short-Time Withstand Current 5 kA (1 s) · 5 kA (3 s) · 1.93 kA (20 s)
[Icm] Short-Circuit Making Capacity 330 kA (with upstream protection CB) · 7.1 kA (alone)
Mounting / Connection Fixed, backplate; front connections, pitch 45 mm
Mechanical Durability 15000 cycles
Dimensions (W×H×D) 185 × 255 × 110 mm
Net Weight 6.8 kg
Protection / Environment IP40 · IK07 · operating -25…70 °C, storage -50…85 °C
Standards EN/IEC 60947-1, EN/IEC 60947-3, CCC, EAC, marine
Availability Status Active (in production)

Compatibility & Cross-References

ComPacT NSX range; requires upstream protection circuit breaker. Compatible with standard ComPacT NSX accessories, auxiliaries, control mechanisms and PowerTag wireless sensors. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Control and isolation of electrical distribution circuits
  • Panel disconnection for safe maintenance (AC-22A / AC-23A)
  • Industrial and commercial switchboards

Warranty & Shipping

  • Availability: Stock and condition vary; contact us for real-time stock status and tested condition.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery about 5-8 business days, express available, free shipping over $500.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Schneider Electric part C404400S is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is the C404400S?

A: A Schneider Electric ComPacT NSX400NA switch disconnector, 4P, 400 A, fixed.

Q: Is it still available?

A: Yes — active ComPacT NSX switch disconnector.

Q: Does it provide overcurrent protection?

A: No — it is a switch disconnector and requires an upstream protection circuit breaker.

Q: What is the rated voltage?

A: Ue 690 V AC; Ui 800 V.
