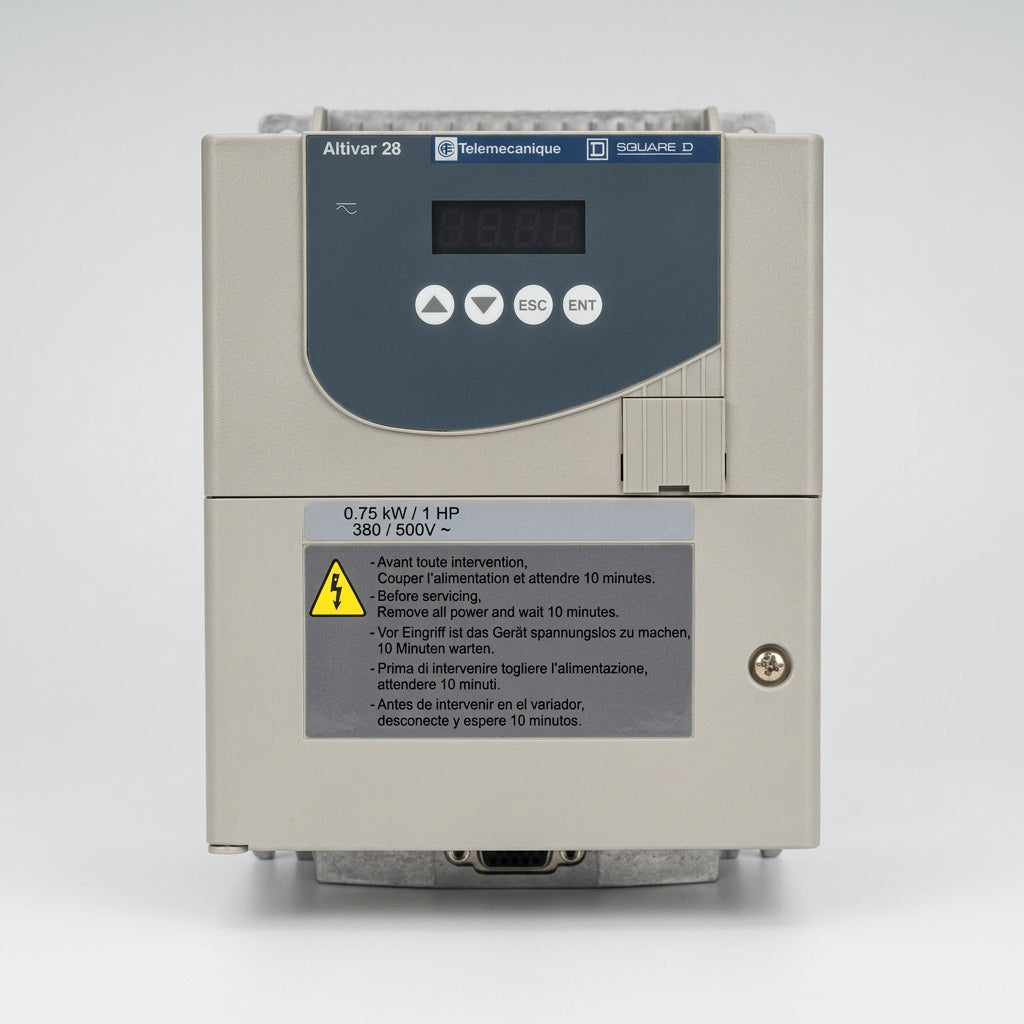

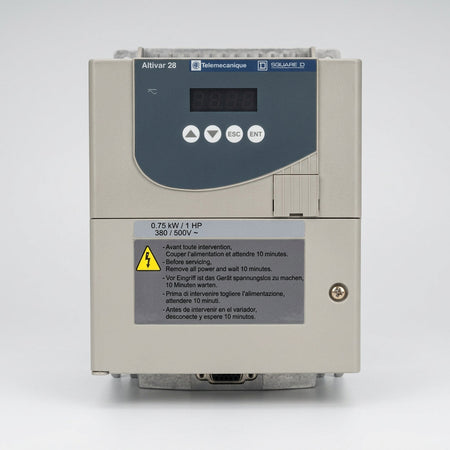

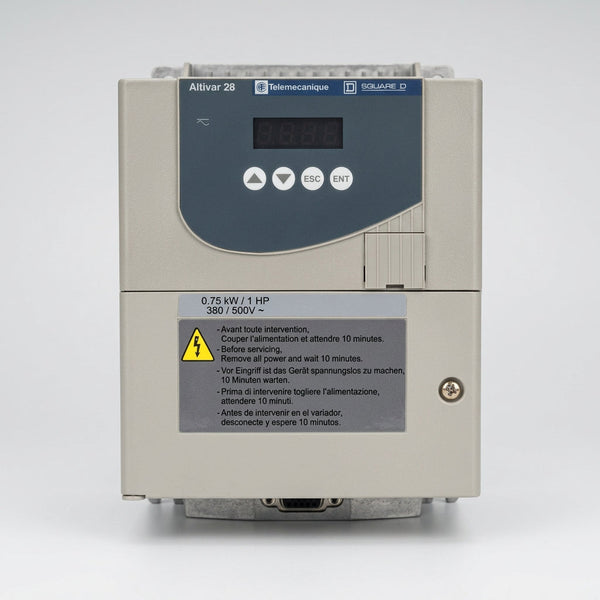

Schneider Electric ATV28HU18N4U Altivar 28 VFD 0.75kW
Schneider Electric ATV28HU18N4U Altivar 28 VFD 0.75kW

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Schneider Electric

Schneider Electric ATV28HU18N4U VFD Drive

SKU: ATV28HU18N4U
(0)
$998.56
In stock (50 units)
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

Schneider Electric ATV28HU18N4U Altivar 28 VFD, 0.75kW, 400-500V 3-Phase

The Schneider Electric ATV28HU18N4U is an Altivar 28 (ATV28) variable-speed drive, rated 0.75 kW (1 hp) on a 400…500 V three-phase supply, with an output current of 2.3 A. The ATV28 range is a legacy AC drive (output frequency 0.5…400 Hz, 150% nominal transient current for 60 s). It is a discontinued / obsolete series. Specifications are sourced from official Altivar 28 series literature and authorized reseller technical data. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit is visually inspected and functionally checked before shipment.

Key Features

  • Model: ATV28HU18N4U — Altivar 28 AC drive
  • Motor Power: 0.75 kW (1 hp)
  • Supply: 400…500 V AC three-phase, 50/60 Hz
  • Output: 0.5…400 Hz · 2.3 A · 150% transient for 60 s
  • Lifecycle: Obsolete — replaced by ATV320

Technical Specifications

Official Altivar 28 series literature + authorized reseller technical data — ATV28HU18N4U

Technical Specifications
Product / Range Altivar 28 (ATV28) · variable-speed AC drive
Motor Power 0.75 kW (1 hp)
Supply Voltage 400…500 V AC (400/460 V) · three-phase · 50/60 Hz
Input Current 3.6 A at 400 V · 3.2 A at 460 V
Nominal Output Current 2.3 A
Output Frequency 0.5…400 Hz (ATV28 series)
Transient Current 150% of nominal for 60 s (ATV28 series)
Analogue Output 0…20 mA / 4…20 mA programmable (ATV28 series)
Protection Drive and motor thermal protection (ATV28 series)
Availability Status Obsolete — discontinued by Schneider Electric
Model note: ATV28HU18N4U is an Altivar 28 variable-speed AC drive, 0.75 kW (1 hp), 400…500 V three-phase (N4 = 400/460/500 V class). The U suffix denotes the UK / regional version. This is a variable-speed drive, not a soft starter. The ATV28 series is a legacy 0.75…15 kW drive (output 0.5…400 Hz, 150% transient for 60 s).
Recommended replacement: Schneider Electric designates the Altivar 320 (ATV320) Machine drives series as the current successor to the obsolete ATV28 range. For the 0.75 kW / 1 hp, 400 V class, the equivalent current drive is ATV320U07N4B (0.75 kW, 380…500 V three-phase, book format). Contact us for ATV320 migration support.

Compatibility & Cross-References

Altivar 28 series (ATV28HU/M2, N4, M3, 0.75…15 kW drives). This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Speed control of small three-phase asynchronous motors up to 0.75 kW
  • Pumps, fans, conveyors and light machine drives
  • Spare/obsolete replacement for installed ATV28 installations

Warranty & Shipping

  • Availability: Stock and condition vary; contact us for real-time stock status and tested condition.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery about 5-8 business days, express available, free shipping over $500.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Schneider Electric part ATV28HU18N4U is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is the ATV28HU18N4U?

A: A Schneider Electric Altivar 28 variable-speed AC drive, 0.75 kW (1 hp), 400…500 V three-phase.

Q: Is it still in production?

A: No — the ATV28 series is obsolete; successor is the Altivar 320 (ATV320) range.

Q: Is it a VSD or soft starter?

A: A variable-speed drive.

Q: What is the supply?

A: 400…500 V AC three-phase, 50/60 Hz.
