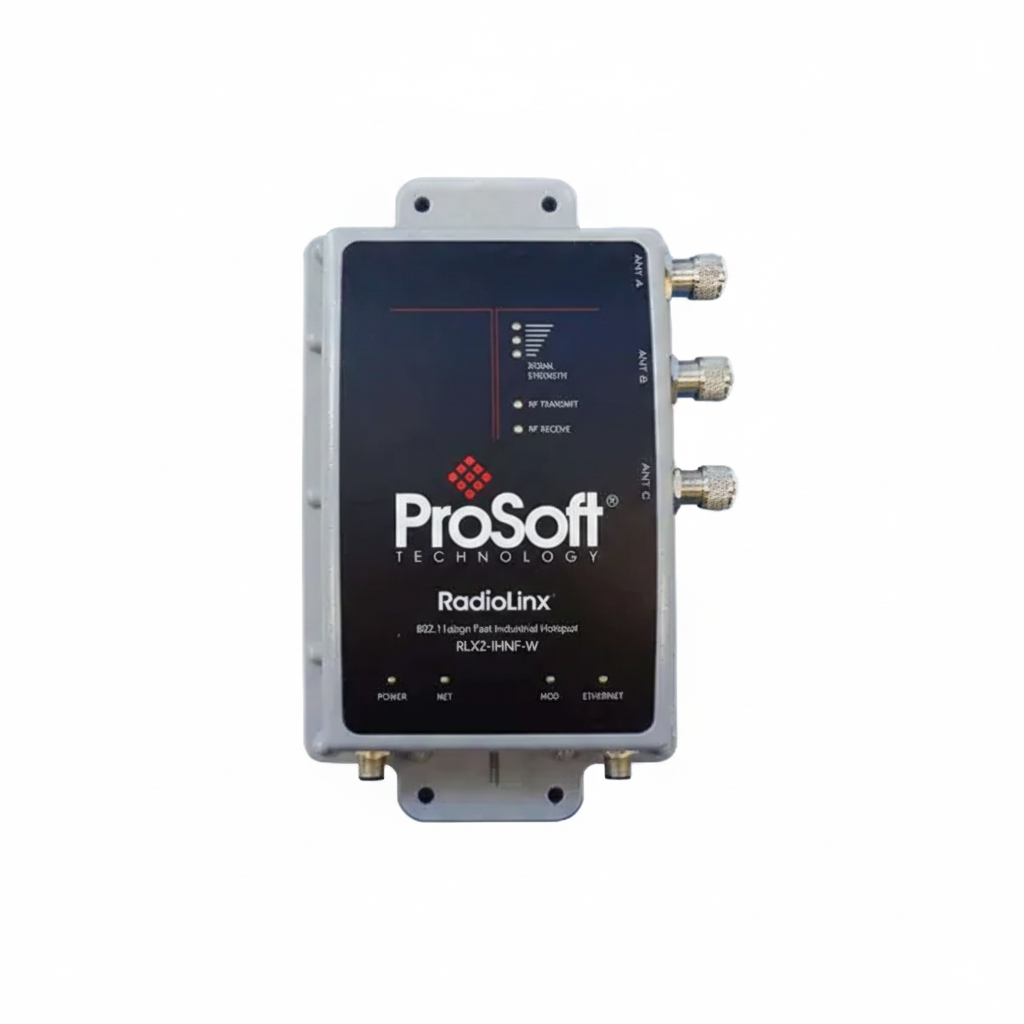

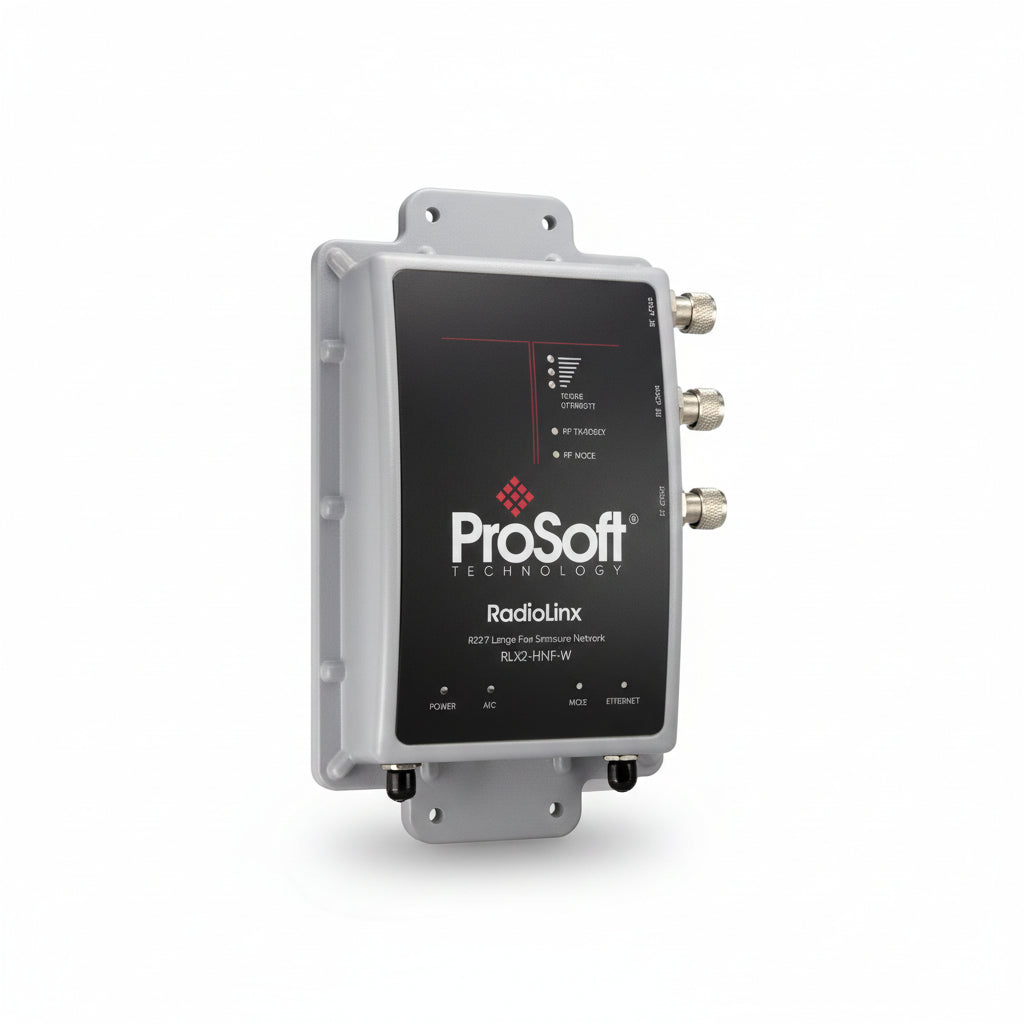

The ProSoft RLX2-IHNF-W is a wireless module for industrial automation and control systems. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Key Specifications | |
| Frequency band (Varies by country) | 2.412 GHz to 2.462 GHz (FCC)2.412 GHz to 2.472 GHz (ETSI/NTRA) |
| Wireless standards | 802.11n, 802.11a, 802.11g802.11h (DFS), 802.11i (Security), 802.11e (QoS)802.1Q (VLAN), 802.3af (PoE), IGMPv2 |
| Channel data rates 802.11n | MCS0 through MCS15,1 Channel or 2 Channels with 1 Stream or 2 Streams |
| Security | WPA2 Enterprise – 802.11i AES w/RADIUS [PEAP, TTLS, TLS, EAP]WPA2 Personal – 802.11i AES w/ Passphrase Legacy WPA TKIP, WEP supportMAC ID filter |
| Enclosure | Die-cast aluminum with pole mount |
| Dimensions (H x W x D) | 11.5 x 7.0 x 2.75 in29.2 x 17.8 x 7.0 cm |
| Shock | IEC 60068 2-27 (20G, 3-Axis) |
| Vibration | IEC 60068 2-6 (5G, 10 to 150 Hz) |
| Type Designation | |
| Order code | RLX2-IHNF-W |
| Product family / base order code | RLX2 |
| Order code segment — model / options | IHNF |
| Version / revision suffix | W |
| Power Supply | |
| External Power | 10 to 24 VDC |
| Power over Ethernet | 802.3af compliant |
| Peak Power Consumption | < 9W (Series B), < 10W (Series C), < 6W (Series D) |
| Ports & Connections | |
| Channel data rates 802.11n | MCS0 through MCS15,1 Channel or 2 Channels with 1 Stream or 2 Streams |
| Ethernet Port | (1) water/dust tight10/100/1000 Base-T connector, shielded RJ45 IEEE 802.3, 802.3u, 802.3x, 802.3af, Passive PoENot 802.3at/PoE+ compatible |
| Antenna Port | (3) N connectors |
| Power over Ethernet | 802.3af compliant |
| Features & Protocols | |
| Channel data rates 802.11n | MCS0 through MCS15,1 Channel or 2 Channels with 1 Stream or 2 Streams |
| Mechanical & Environmental | |
| Enclosure | Die-cast aluminum with pole mount |
| Dimensions (H x W x D) | 11.5 x 7.0 x 2.75 in29.2 x 17.8 x 7.0 cm |
| Shock | IEC 60068 2-27 (20G, 3-Axis) |
| Vibration | IEC 60068 2-6 (5G, 10 to 150 Hz) |
| Weight | 3.9 lbs (1.6 kg) less cables and pole mounting bracket |
| Operating Temperature | -40°F to 167°F (-40°C to 75°C)-40°F to +158°F (-40°C to +70°C), RLX2-IHNF-W Series B, C and D only |
| Humidity | Up to 100% RH |
| Compliance, Approvals & Standards | |
| Product approvals | CE, UKCA, UL/cUL, RoHS |
| EMC | EN 61000-6-x / EN 55011 (industrial environment) |
| Safety standard | IEC/EN 61131 / 61800 / 60947 (product-specific) |
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Each RLX2-IHNF-W is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.
A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.
A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
