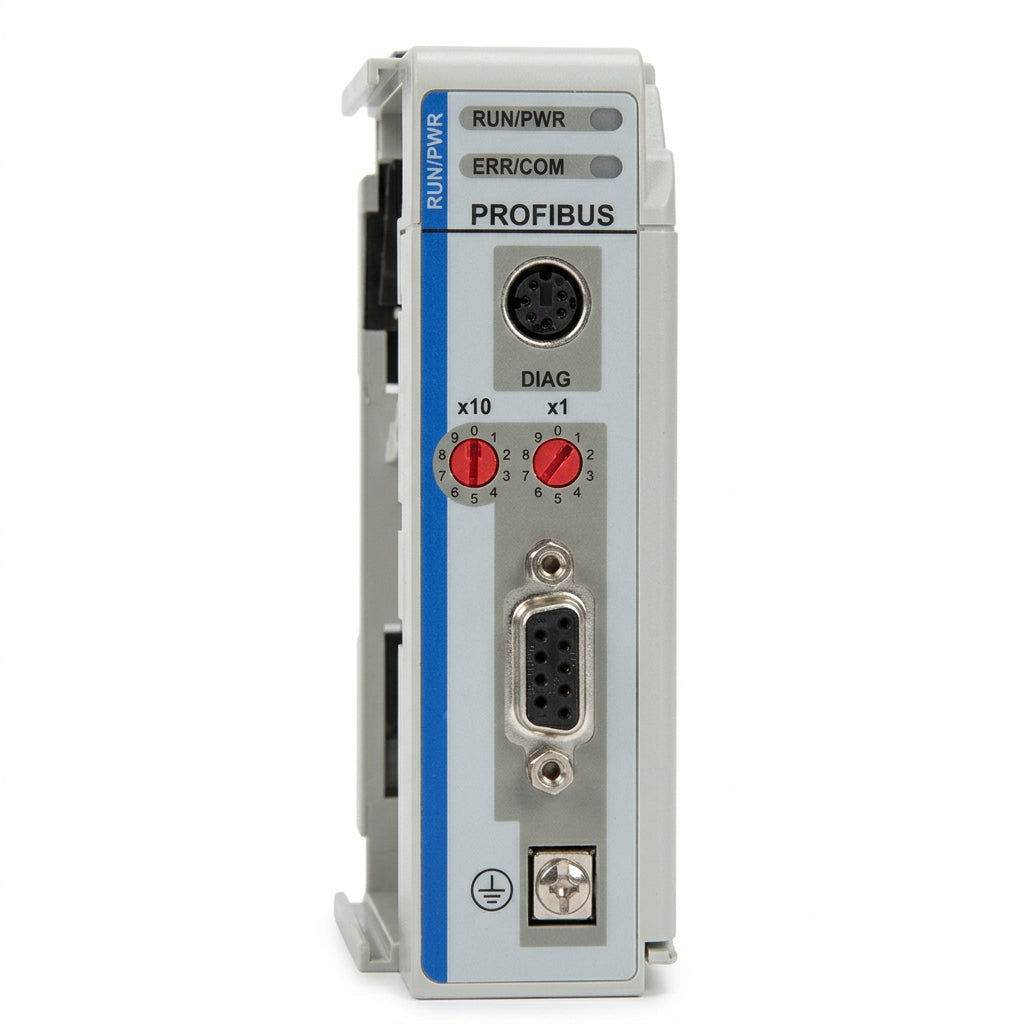

ProSoft Technology PS69-DPS Communication Module

SKU: PS69-DPS
(0)
$525.00
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

PS69-DPS ProSoft PROFIBUS DP V0/V1 Slave Module for CompactLogix

The ProSoft Technology PS69-DPS is a single-slot 1769 backplane PROFIBUS DP slave communication module for Rockwell CompactLogix & MicroLogix 1500 controllers. It implements PROFIBUS DP V0/V1 slave functionality for cyclic I/O exchange and acyclic messaging, recognized as a standard I/O module inside RSLogix 5000 / Studio5000. Technical data sourced from official ProSoft datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: PS69-DPS
  • Product Family: PS69 CompactLogix InRAx Series
  • Primary Function: PROFIBUS DP V0/V1 Slave interface module for 1769 backplane
  • Supported Controllers: CompactLogix & MicroLogix 1500 LRP (excludes 1769-L16x / L18x / QBFC1B)
  • PROFIBUS Interface: 9-pin D-Sub RS485 isolated port, rotary switches for station address
  • Data Exchange: Cyclic I/O control + DPV1 acyclic messaging, diagnostics via CIP ladder message blocks
  • Configuration: Native RSLogix5000 setup or download config from PROFIBUS master; official GSD file provided
  • Backplane: Single slot 1769 CompactLogix chassis mounting
  • LED Status: Power, Module Status, PROFIBUS Communication, Fault indicator LEDs
  • Lifecycle: Discontinued OEM production, aftermarket spare part only; recommended replacement ILX69-PBS
  • Typical Use: Integrate CompactLogix PLC into Siemens PROFIBUS DP master networks, factory process control retrofit

Specifications

Official Datasheet Technical Parameters

Technical Specifications
Catalog Number PS69-DPS
Hardware Type 1769 Single-slot PROFIBUS DP Slave Module
Backplane Power +5VDC from CompactLogix backplane, 260mA max
PROFIBUS Port 9-pin D-Sub RS485, galvanically isolated
Supported Baud Rates 9.6k ~ 12Mbps PROFIBUS standard baudrates
Protocol PROFIBUS DP V0 / DP V1 Slave
Configuration File Official GSD file available
Environmental Ratings
Operating Temperature 0°C ~ +60°C (32°F ~ +140°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing

Compatibility & Cross-References

The PS69-DPS is ProSoft 1769 PROFIBUS DP slave module for CompactLogix. It enables Rockwell controllers to act as a PROFIBUS DP slave device to communicate with Siemens or other PROFIBUS DP master PLCs. Station address is set via rotary switches on front panel. GSD file import required on PROFIBUS master configuration tool. Recommended replacement part ILX69-PBS. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Connect CompactLogix PLC to Siemens PROFIBUS DP automation network
  • Process plant retrofit, mixed Rockwell & Siemens control system integration
  • Packaging, material handling, water treatment PROFIBUS I/O interconnection
  • Legacy PROFIBUS system spare replacement, cyclic I/O + DPV1 alarm/diagnostic messaging

Warranty

  • Availability: PS69-DPS discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part PS69-DPS is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is PS69-DPS?

A: PS69-DPS is ProSoft single-slot 1769 PROFIBUS DP V0/V1 slave communication module for Rockwell CompactLogix and MicroLogix 1500 controllers.

Q: How to set PROFIBUS station address?

A: Set node address by front panel rotary switches, import GSD file into PROFIBUS master configuration software.

Q: What is the recommended replacement?

A: ILX69-PBS is the recommended replacement model for PS69-DPS.
