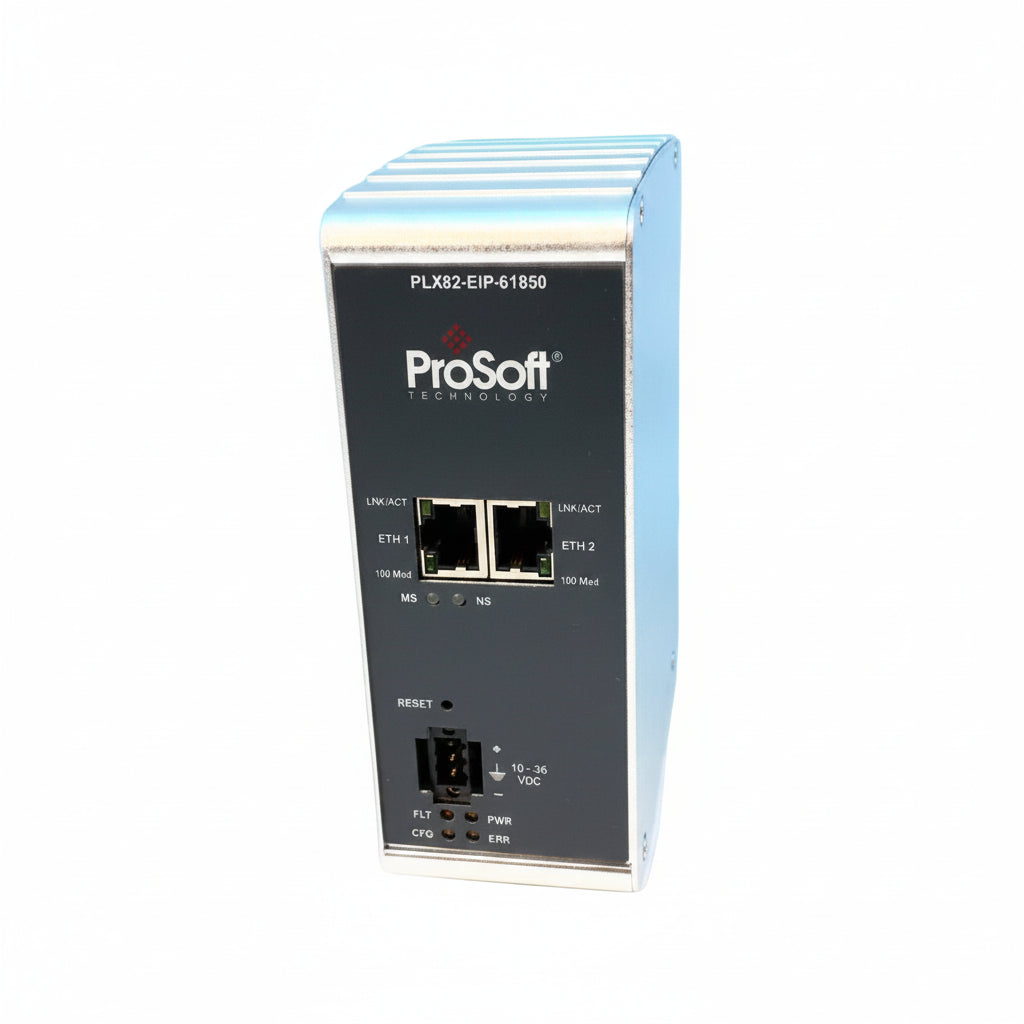

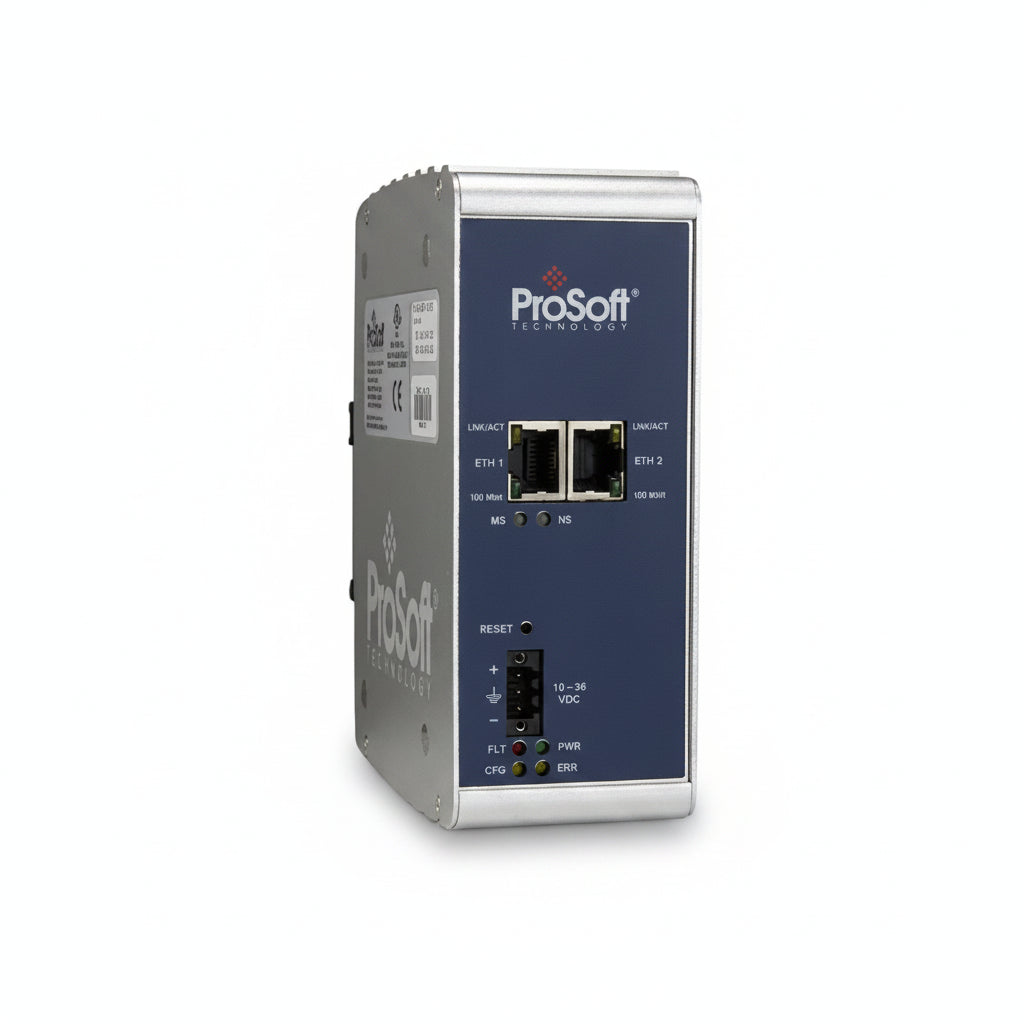

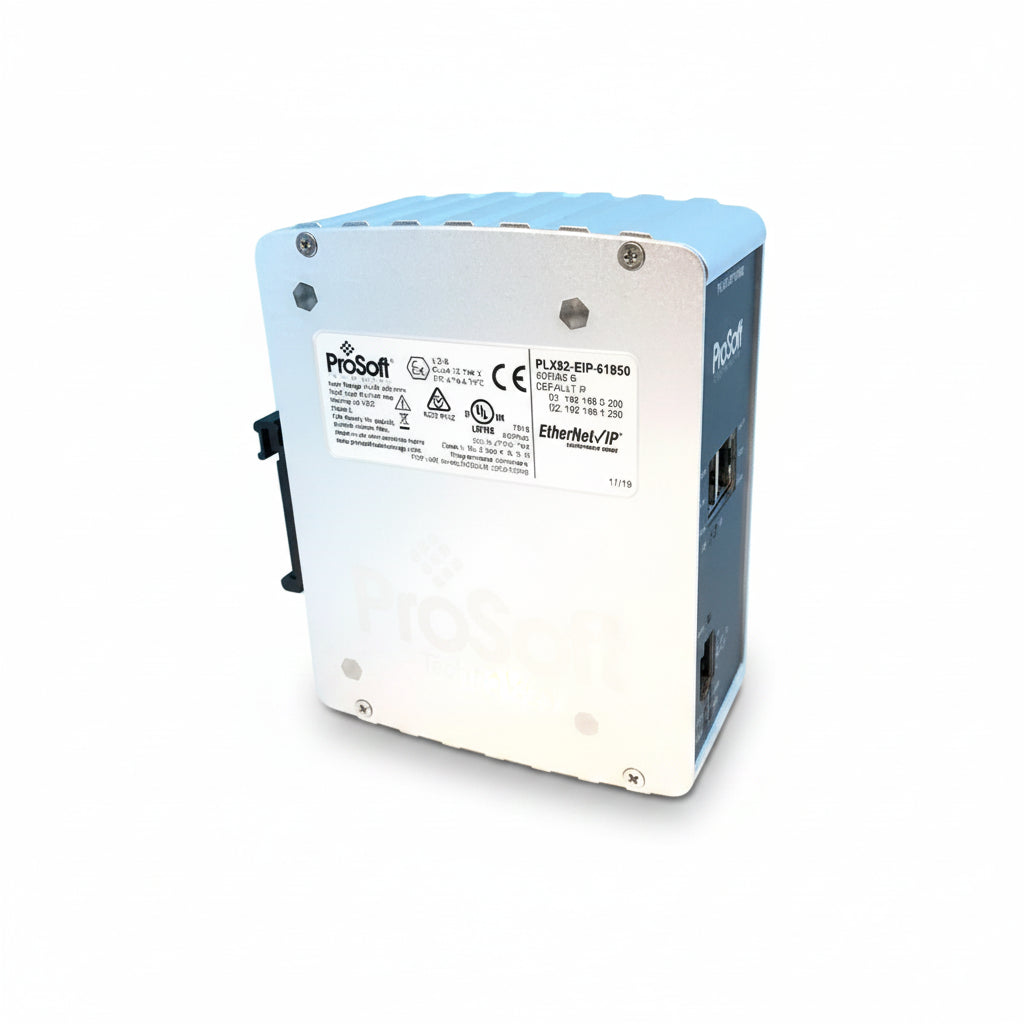

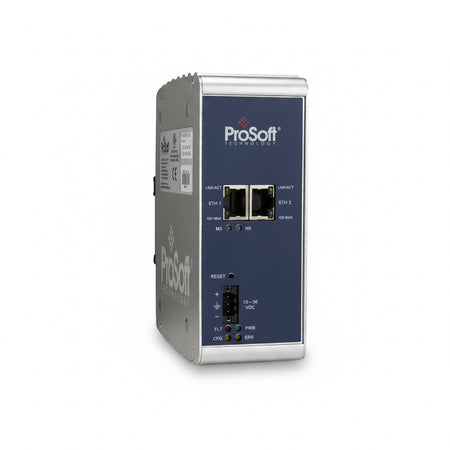

The ProSoft PLX82-EIP-61850 is a gateway for industrial automation and control systems. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Key Specifications | |
| SCSMs supported | SCSM: IEC 61850 8.1(MMS) used |
| Reporting | Buffered Report Control Block (BRCB)Unbuffered Report Control Block (URCB) |
| GOOSE | Direct-with-Normal-Security SBO-with-Normal-Security Direct-with-Enhanced-SecuritySBO-with-Enhanced-Security |
| Logical Nodes | IEC 61850 Logical Nodes, including Logical Nodes for Hydro Power Plants and Logical Nodes for Wind Power Plants |
| Configurable Parameters | MMS Command Delay |
| Status Data | Status available per node Report and GOOSE status available High-level status data available from Ethernet/IP Client through the Ethernet/IP Server (for example PLC or PAC) |
| Configurable Parameters | SNTP/NTP server synchronization rate in minutesSNTP/NTP server address |
| Class 1 MessagingClass 3 Messaging | I/O connections for real-time data transfer PLC messaging support |
| Type Designation | |
| Order code | PLX82-EIP-61850 |
| Product family / base order code | PLX82 |
| Order code segment — model / options | EIP |
| Version / revision suffix | 61850 |
| Power Supply | |
| Power Supply | 24 VDC nominal 10 to 36 VDC power input allowed Positive, Negative, GND Terminals2.5 mm screwdriver blade |
| Current Load | 200 mA max @ 24 VDC 150 mA max @ 32 VDC450 mA max @ 10 VDC |
| Ports & Connections | |
| SCSMs supported | SCSM: IEC 61850 8.1(MMS) used |
| Reporting | Buffered Report Control Block (BRCB)Unbuffered Report Control Block (URCB) |
| Mechanical & Environmental | |
| Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, with no condensation |
| DimensionsH x W x D | 11.99 x 5.1 x 10.62 cm4.72 x 2.0 x 4.18 in |
| Shock | IEC 60068-2-27; 15G @ 11ms (Operational) IEC 60068-2-27; 30G @ 18ms (Non-Operational) |
| Vibration | IEC 60068-2-6; 5G, 10 to 150 Hz |
| Compliance, Approvals & Standards | |
| Product approvals | CE, UKCA, UL/cUL, RoHS |
| EMC | EN 61000-6-x / EN 55011 (industrial environment) |
| Safety standard | IEC/EN 61131 / 61800 / 60947 (product-specific) |
