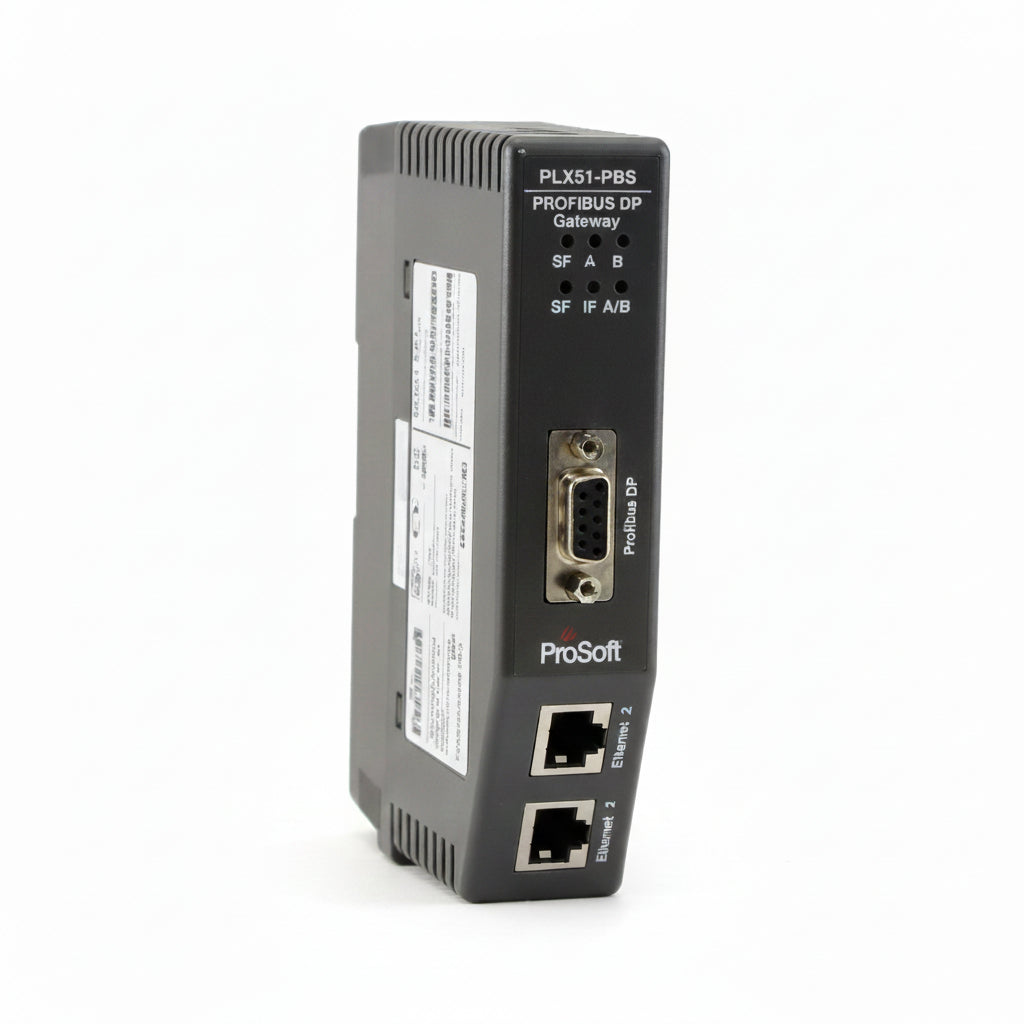

ProSoft PLX51-PBS Gateway - white background

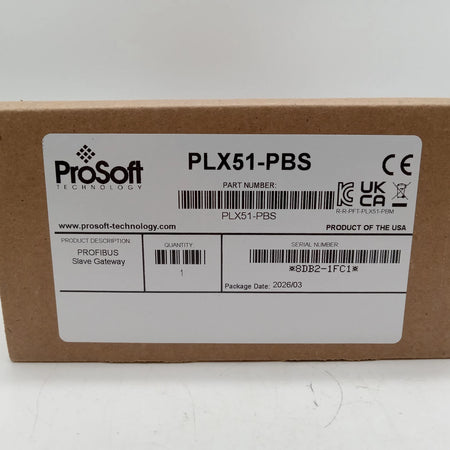

ProSoft PLX51-PBS Gateway - additional view 1
ProSoft PLX51-PBS Gateway - white background

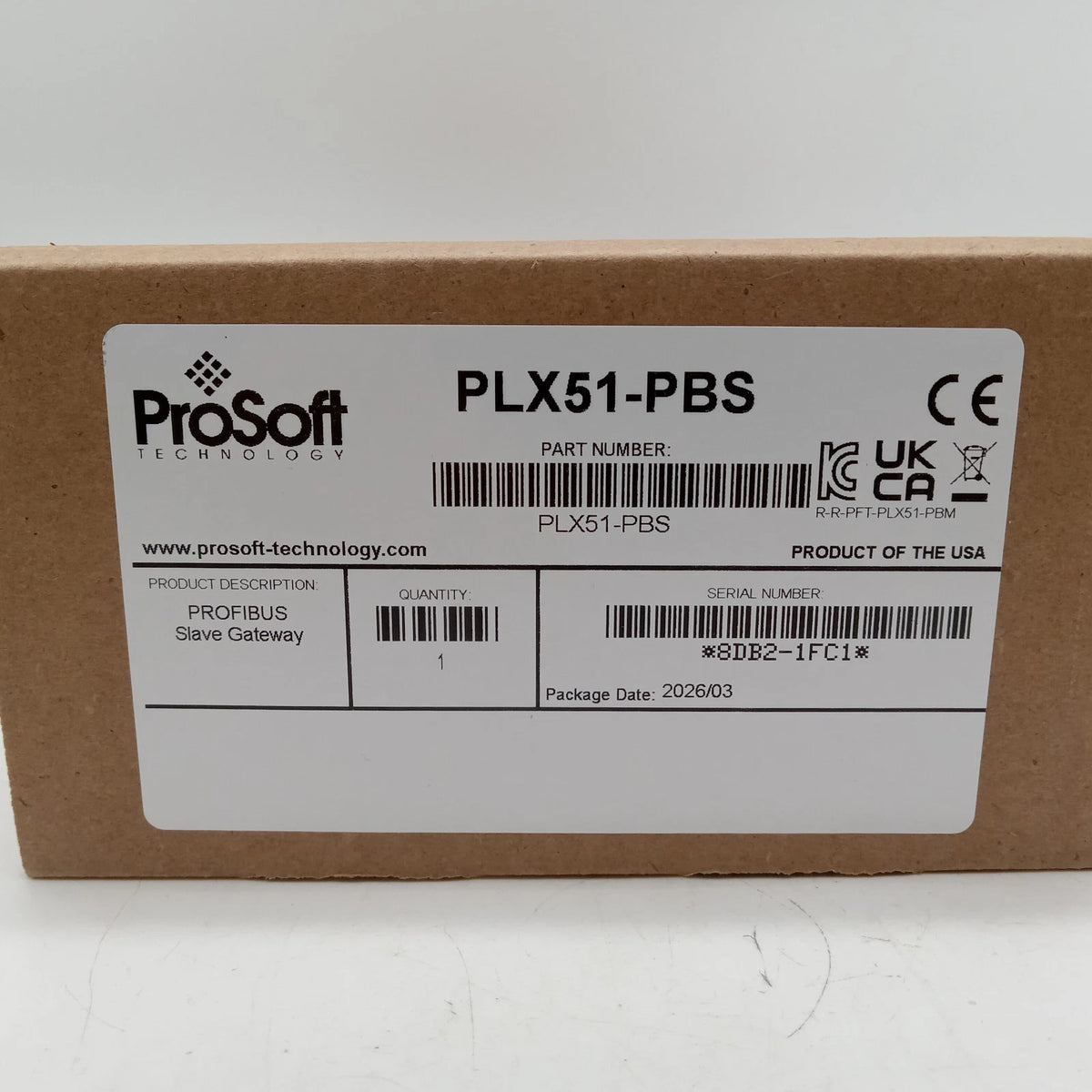

ProSoft PLX51-PBS Gateway - additional view 1

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ProSoft Technology

ProSoft Technology PLX51-PBS Gateway

SKU: PLX51-PBS
(0)
$873.98
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

The ProSoft PLX51-PBS is a gateway for industrial automation and control systems. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Key Specifications
Connector RJ45
Conductors CAT5 STP/UTP
ARP Connections Max 40
TCP Connections Max 40
CIP Connections Max 10
Duplex Mode Full / Half / Auto Negotiate
Auto MDIX Yes
Mode Client or Server
Type Designation
Order code PLX51-PBS
Product family / base order code PLX51
Version / revision suffix PBS
Power Supply
Power Requirements Input: 10 to 36V DC
Power Consumption 85mA @ 24V => 2.04W
Power Connector 3-way terminal
Ports & Connections
ARP Connections Max 40
TCP Connections Max 40
CIP Connections Max 10
Support DPV0 or DPV1
Earth Connection Yes, terminal based
Features & Protocols
Duplex Mode Full / Half / Auto Negotiate
Mode Client or Server
Mode Master or Slave
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Protocol PROFIBUS DP Slave
Mechanical & Environmental
Enclosure Rating IP20, NEMA/UL Open Type
Temperature -20 to 70 °C
Dimensions (H x W x D) 5.86 x 1.33 x 4.56 in149 x 34 x 116 mm
Compliance, Approvals & Standards
Product approvals CE, UKCA, UL/cUL, RoHS
EMC EN 61000-6-x / EN 55011 (industrial environment)
Safety standard IEC/EN 61131 / 61800 / 60947 (product-specific)

Compatibility & Cross-References

  • Connector: RJ45
  • Power Connector: 3-way terminal
  • Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
  • Protocol: PROFIBUS DP Slave
  • Cross-references: send your existing part number or application and our technical team confirms fitment, protocol and wiring before you order.

Applications

  • The ProSoft PLX51-PBS is widely used to connect field I/O and serial devices to Ethernet and fieldbus control networks.
  • Typical uses include protocol linking, device-level data acquisition and SCADA/HMI integration.
  • It is deployed on conveyor lines, process skids and remote I/O stations where line topology reduces switching hardware.
  • Engineers also specify it for machine retrofits and as a network interface between legacy and modern controls.

Ordering, Delivery & Warranty

  • Availability: Worldwide shipping.
  • Delivery: Orders are processed within 2-4 business days after payment confirmation; worldwide delivery typically takes 5-8 business days, express service is available and shipping is free on orders over $500.
  • Condition & testing: Each unit is visually inspected and functionally checked before dispatch and packaged for protective international transit.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft part PLX51-PBS is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the PLX51-PBS supplied in?

A: Each PLX51-PBS is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the PLX51-PBS ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the PLX51-PBS?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
