The ProSoft PLX35-NB2 is a gateway for industrial automation and control systems. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Key Specifications | |

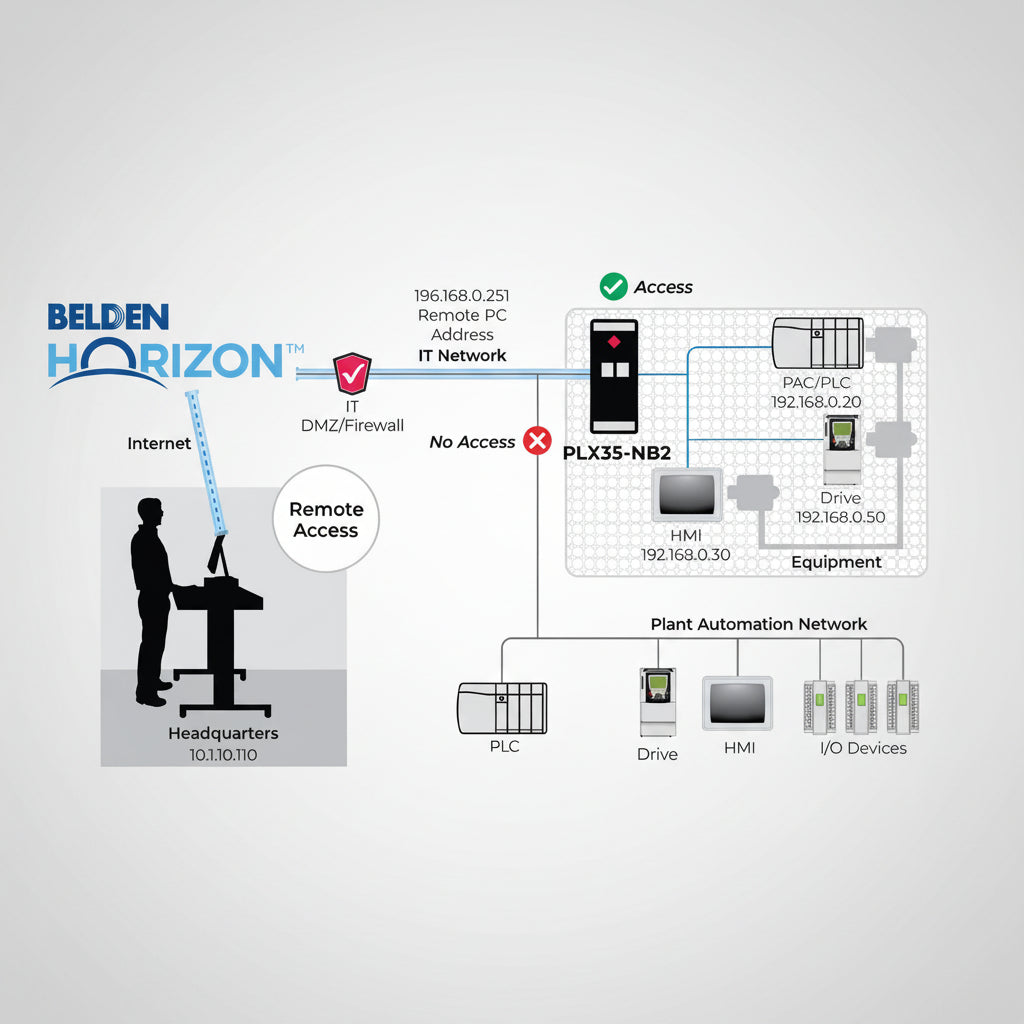

| VPN | VPN connection established through Belden Horizon |
| EtherNet/IP | Supports local control of VPN access through MSG instruction. |
| Ports | HTTP and HTTPS ports 443 and 8080 |
| File Relay | Transfer files across segmented networks |
| Enclosure | Extruded aluminum with DIN clip |
| Dimensions (H x W x D) | 5.52 x 2.06 x 4.37 in14.01 x 5.24 x 11.09 cm |
| Shock | IEC 60068-2-27; 20G @ 11ms (Operational)IEC 60068-2-27; 30G @ 11ms (Non-Operational) |
| Vibration | IEC 60068-2-6; 10G, 10 to 150 Hz |
| Type Designation | |
| Order code | PLX35-NB2 |
| Product family / base order code | PLX35 |
| Version / revision suffix | NB2 |
| Power Supply | |
| External Power | 10 to 30 VDC |
| Peak Power Consumption | < 6W |
| Ports & Connections | |
| EtherNet/IP | Supports local control of VPN access through MSG instruction. |
| Ports | HTTP and HTTPS ports 443 and 8080 |
| Ethernet Port | (2) 10/100 Base-T, RJ45 connector |
| Mechanical & Environmental | |
| Enclosure | Extruded aluminum with DIN clip |
| Dimensions (H x W x D) | 5.52 x 2.06 x 4.37 in14.01 x 5.24 x 11.09 cm |
| Shock | IEC 60068-2-27; 20G @ 11ms (Operational)IEC 60068-2-27; 30G @ 11ms (Non-Operational) |
| Vibration | IEC 60068-2-6; 10G, 10 to 150 Hz |
| Operating Temperature | IEC 60068; -22°F to +158°F (-30°C to +70°C) |
| Humidity | IEC 60068-30; 5% to 95%, with no condensation |
| Compliance, Approvals & Standards | |
| Product approvals | CE, UKCA, UL/cUL, RoHS |
| EMC | EN 61000-6-x / EN 55011 (industrial environment) |
| Safety standard | IEC/EN 61131 / 61800 / 60947 (product-specific) |
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Each PLX35-NB2 is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.
A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.
A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
