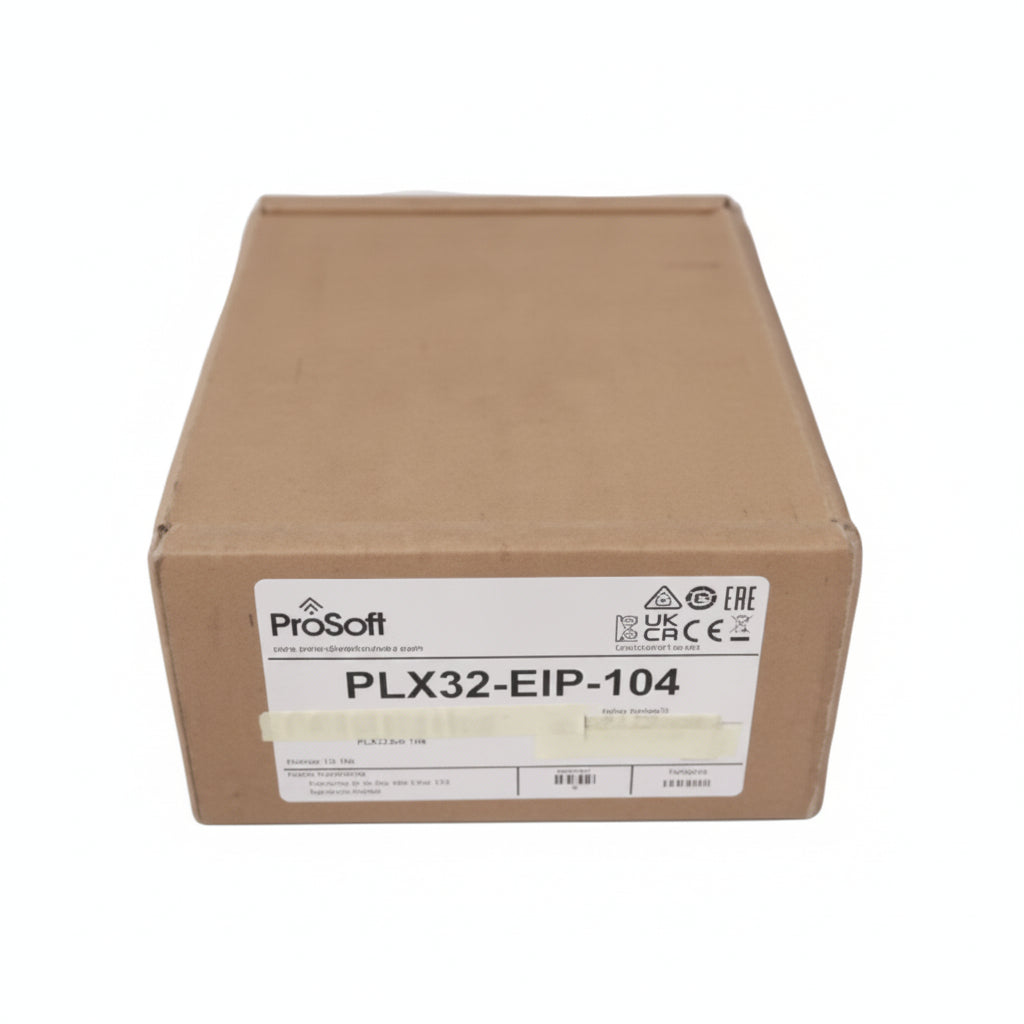

ProSoft PLX32-EIP-104 Gateway - additional view 2
ProSoft PLX32-EIP-104 Gateway - white background
ProSoft PLX32-EIP-104 Gateway - additional view 1
ProSoft PLX32-EIP-104 Gateway - additional view 2

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ProSoft Technology

ProSoft Technology PLX32-EIP-104 Gateway

SKU: PLX32-EIP-104
(0)
$1,366.66
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

The ProSoft PLX32-EIP-104 is a gateway for industrial automation and control systems. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Key Specifications
Number of Class 3 Server Connections 5
Supported Message Types PCCC and CIP
Number of Class 3 Client Connections Connected: 2Unconnected: 1
Number of Class 1 I/O Connections 8
I/O Connection Sizes 248/248
Minimum RPI Time 5mSec per connection
CIP Services Supported 0x4C:CIP Data Table Read 0x4D:CIP Data Table WriteCIP Generic
Command List Support for 100 commands (Class 3 MSG) per Client
Type Designation
Order code PLX32-EIP-104
Product family / base order code PLX32
Order code segment — model / options EIP
Version / revision suffix 104
Power Supply
Power Supply 24 VDC nominal 10 to 36 VDC allowedPositive, Negative, GND Terminals
Current Load 24 VDC nominal @ 300 mA10 to 36 VDC @ 610 mA maximum
Ports & Connections
Number of Class 3 Server Connections 5
Supported Message Types PCCC and CIP
Number of Class 3 Client Connections Connected: 2Unconnected: 1
Number of Class 1 I/O Connections 8
I/O Connection Sizes 248/248
CIP Services Supported 0x4C:CIP Data Table Read 0x4D:CIP Data Table WriteCIP Generic
Simultaneous Connections 3
Supported ASDU types Up to a maximum of 1000 of each of the following ASDU types are supported: M_SP_NA, M_DP_NA, M_ST_NA, M_ME_NA, M_ME_NB, M_ME_NC, M_IT_NA, C_SC_NA, C_DC_NA, C_RC_NA, C_SE_NA, C_SE_NB, C_SE_NC
Features & Protocols
Operating Mode IEC 60870-5-104 Server
Mechanical & Environmental
Operating Temperature -25°C to 70°C (-13°F to 158°F)
Storage Temperature -40°C to 80°C (-40°F to 176°F)
Humidity IEC 60068-30; 5% to 95%, with no condensation
Shock IEC 60068-2-27; 15G @ 11ms (Operational)IEC 60068-2-27; 30G @ 11ms (Non-Operational)
Vibration IEC 60068-2-6; 5G @ 10 to 150 Hz
Dimensions (H x W x D) 5.38 x 1.99 x 4.38 in13.67 x 5.05 x 11.13 cm
Compliance, Approvals & Standards
Product approvals CE, UKCA, UL/cUL, RoHS
EMC EN 61000-6-x / EN 55011 (industrial environment)
Safety standard IEC/EN 61131 / 61800 / 60947 (product-specific)

Compatibility & Cross-References

  • Cross-references: send your existing part number or application and our technical team confirms fitment, protocol and wiring before you order.

Applications

  • The ProSoft PLX32-EIP-104 is widely used to connect field I/O and serial devices to Ethernet and fieldbus control networks.
  • Typical uses include protocol linking, device-level data acquisition and SCADA/HMI integration.
  • It is deployed on conveyor lines, process skids and remote I/O stations where line topology reduces switching hardware.
  • Engineers also specify it for machine retrofits and as a network interface between legacy and modern controls.

Ordering, Delivery & Warranty

  • Availability: Worldwide shipping.
  • Delivery: Orders are processed within 2-4 business days after payment confirmation; worldwide delivery typically takes 5-8 business days, express service is available and shipping is free on orders over $500.
  • Condition & testing: Each unit is visually inspected and functionally checked before dispatch and packaged for protective international transit.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft part PLX32-EIP-104 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the PLX32-EIP-104 supplied in?

A: Each PLX32-EIP-104 is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the PLX32-EIP-104 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the PLX32-EIP-104?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.

PLX32-EIP-104 · Technical reference data · Independently supplied by SHLY-PLC

Standard International (tracked courier): delivered in 5–8 business days. In-stock items are processed within 2–4 business days. USD 25 flat rate on orders of $500 or less; free on orders over $500.

Express (DHL Express / FedEx International): upgraded expedited delivery in 2–4 business days. The Express surcharge is calculated at checkout based on destination and order weight.

Non-Stock / On-Order items ship on request: dispatch time is confirmed before your order — see our Shipping Policy. Remote-area and overweight surcharges, where applicable, are shown before checkout.

Every product is covered by a 12-month seller warranty provided by SHLY-PLC, effective from the date of delivery, against defects in materials and workmanship under normal use.

This warranty does not cover damage from misuse, improper installation, power surges, neglect, unauthorized repair, or normal wear and tear. See our Return Policy for warranty-claim instructions.
★★★★★

No reviews yet. Be the first to review this product!
