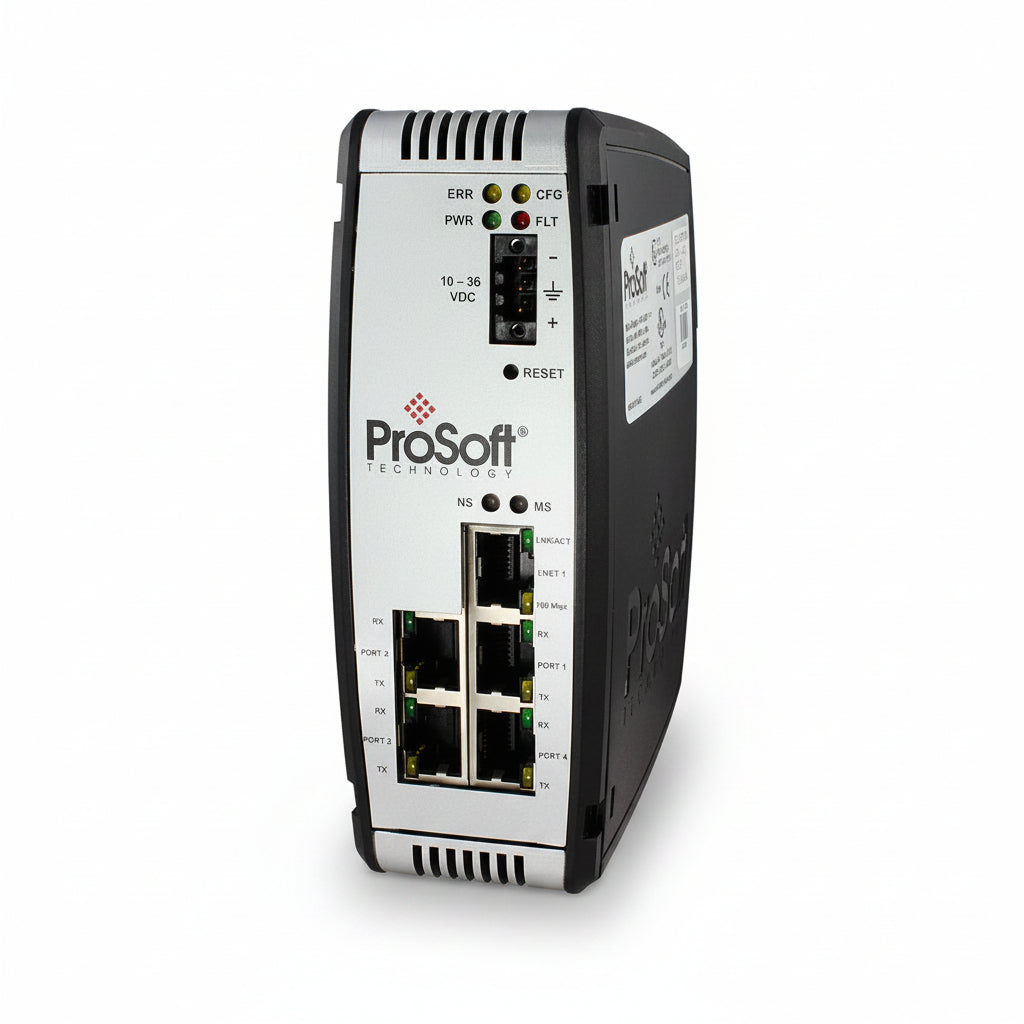

The ProSoft PLX31-EIP-MBS4 is a gateway for industrial automation and control systems. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Key Specifications | |
| Number of Class 3 Server Connections | 5 |
| Supported PLC Types | PLC2, PLC5, SLC, CLX, CMPLX, MICROLX |
| Supported Message Types | PCCC and CIP |
| Class 3 Client Connections | Connected: 2Unconnected: 1 |
| Number of Class 1 I/O Connections | 8 |
| I/O connection sizes | 248/248 |
| Max RPI time | 5 ms per connection |
| CIP Services Supported | 0x4C - CIP Data Table Read 0x4D - CIP Data Table WriteCIP Generic |
| Type Designation | |
| Order code | PLX31-EIP-MBS4 |
| Product family / base order code | PLX31 |
| Order code segment — model / options | EIP |
| Version / revision suffix | MBS4 |
| Power Supply | |
| Power Supply | 24 Vdc nominal 10Vdc to 36 Vdc allowedPositive, Negative, GND Terminals |
| Current Load | 24 Vdc nominal @ 300mA10 to 36 Vdc @ 610mA maximum |
| Ports & Connections | |
| Number of Class 3 Server Connections | 5 |
| Supported PLC Types | PLC2, PLC5, SLC, CLX, CMPLX, MICROLX |
| Supported Message Types | PCCC and CIP |
| Class 3 Client Connections | Connected: 2Unconnected: 1 |
| Number of Class 1 I/O Connections | 8 |
| I/O connection sizes | 248/248 |
| CIP Services Supported | 0x4C - CIP Data Table Read 0x4D - CIP Data Table WriteCIP Generic |
| Supported Modbus Function Codes | 1: Read Coil Status 2: Read Input Status 3: Read Holding Registers 4: Read Input Registers 5: Force (Write) Single Coil6: Preset (Write) Single Holding Register |
| Features & Protocols | |
| Supported Modbus Function Codes | 1: Read Coil Status 2: Read Input Status 3: Read Holding Registers 4: Read Input Registers 5: Force (Write) Single Coil6: Preset (Write) Single Holding Register |
| Mechanical & Environmental | |
| Operating Temperature | -25°C to 70°C (-13°F to 158°F ) |
| Storage Temperature | -40°C to 80°C (-40°F to 176°F ) |
| Relative Humidity | 5% to 95% RH with no condensation |
| Shock | IEC 60068-2-27; 15G @ 11ms, 3-Axis (Operational)IEC 60068-2-27; 30G @ 18ms, 3-Axis (Non-Operational) |
| Vibration | IEC 60068-2-6; 5G @ 10Hz to 150Hz |
| Dimensions(Height x Width x Depth) | Standard: 5.38 in x 1.99 in x 4.38 in(13.67 cm x 5.05 cm x 11.13 cm) |
| Compliance, Approvals & Standards | |
| Product approvals | CE, UKCA, UL/cUL, RoHS |
| EMC | EN 61000-6-x / EN 55011 (industrial environment) |
| Safety standard | IEC/EN 61131 / 61800 / 60947 (product-specific) |
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Each PLX31-EIP-MBS4 is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.
A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.
A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
