MVI69-PDPS ProSoft PROFIBUS DP Slave Communication Module for 1769 CompactLogix

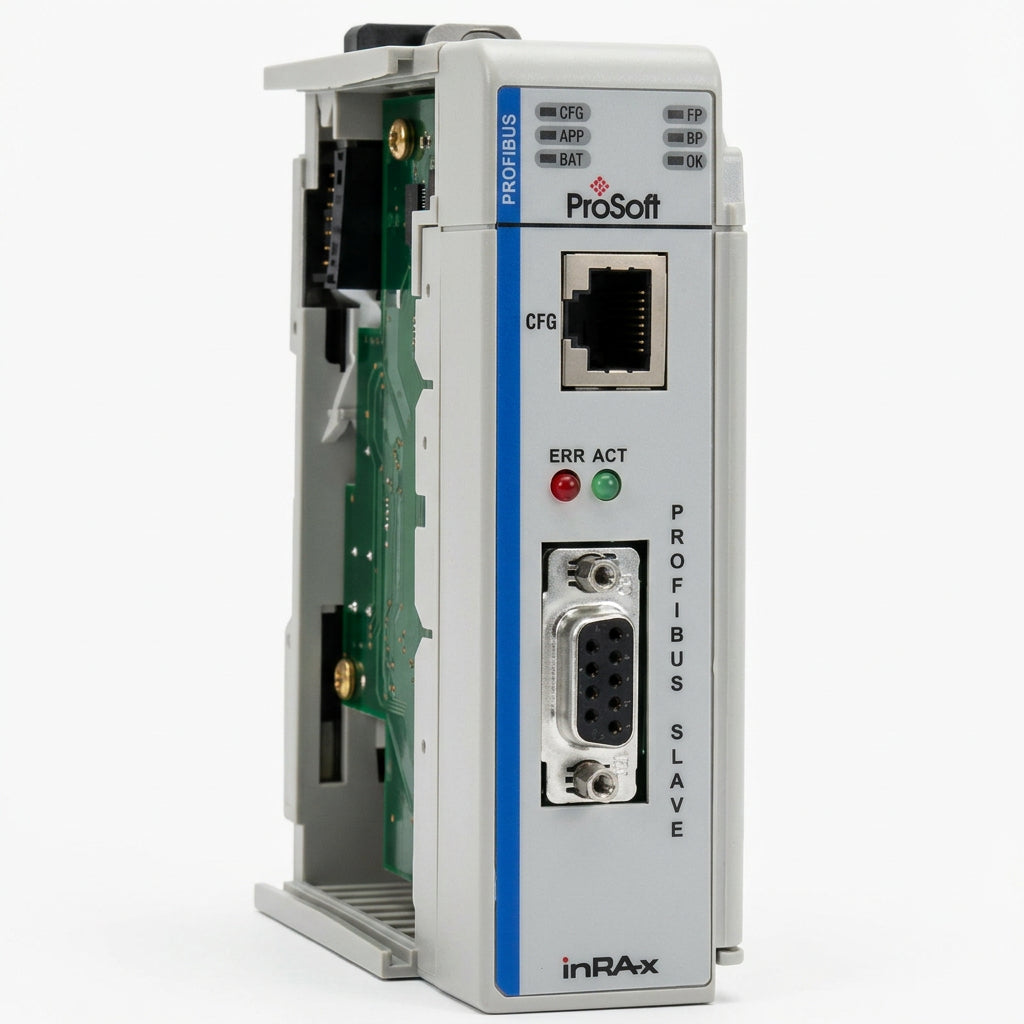

The ProSoft Technology MVI69-PDPS is a single-slot 1769 backplane PROFIBUS DP Slave module designed for Rockwell CompactLogix and MicroLogix controllers. It implements PROFIBUS DP V0 slave functionality, enabling CompactLogix systems to act as a PROFIBUS DP slave node and exchange cyclic I/O data with PROFIBUS DP master controllers. Technical data sourced from official ProSoft datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: MVI69-PDPS
  • Product Family: MVI69 Series for 1769 CompactLogix
  • Primary Function: PROFIBUS DP V0 Slave module for 1769 backplane
  • Backplane: Single slot 1769 CompactLogix / MicroLogix chassis mounting
  • PROFIBUS Port: RS485, baud rate 9.6 kbps up to 12 Mbps, auto baud detection
  • Cyclic I/O Data: Max 244 bytes input, 244 bytes output; combined total 400 bytes maximum
  • DP Functions: Sync, Freeze, configurable fail-safe behavior on communication loss
  • Configuration: RS232 CFG debug port, downloadable GSD file, sample ladder logic included
  • LED Status: Power, Module Status, Application, Serial, PROFIBUS activity & fault LEDs
  • Lifecycle: Discontinued OEM production, aftermarket spare part only
  • Typical Use: Make CompactLogix act as PROFIBUS DP slave for integration into existing PROFIBUS DP master networks, plant retrofits

Specifications

Official Datasheet Technical Parameters

Technical Specifications
Catalog Number MVI69-PDPS
Hardware Type 1769 Single-Slot PROFIBUS DP Slave Module
Backplane Power 800mA @ 5VDC, power supply distance rating 2
PROFIBUS Interface RS485, 9.6kbps ~12Mbps, auto baud
Node Address Range 0 ~ 125 (slave recommended 3-125)
Configuration Port RS232 CFG debug port (RJ45 to DB9 cable)
Environmental Ratings
Operating Temperature 0°C ~ +60°C (32°F ~ +140°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing

Compatibility & Cross-References

The MVI69-PDPS is legacy PROFIBUS DP slave module for Rockwell 1769 CompactLogix / MicroLogix rack. It appears as standard 1769 I/O module to the controller, data exchange handled via ladder logic. GSD file required for PROFIBUS DP master network configuration. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Integrate CompactLogix PLC into existing PROFIBUS DP master controlled field networks
  • Migration & retrofit projects for PROFIBUS based factory automation, packaging, material handling
  • Act as DP slave node to exchange cyclic I/O with Siemens and other PROFIBUS DP master PLCs
  • Legacy PROFIBUS automation system spare part replacement

Warranty

  • Availability: MVI69-PDPS discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part MVI69-PDPS is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is MVI69-PDPS?

A: MVI69-PDPS is ProSoft PROFIBUS DP V0 Slave communication module for Rockwell 1769 CompactLogix / MicroLogix backplane.

Q: What is the max cyclic I/O size?

A: Up to 244 bytes input, 244 bytes output, combined total limited to 400 bytes.

Q: Do I need GSD file?

A: Yes, GSD file must be imported into PROFIBUS DP master engineering tool to add this slave device into DP network.
