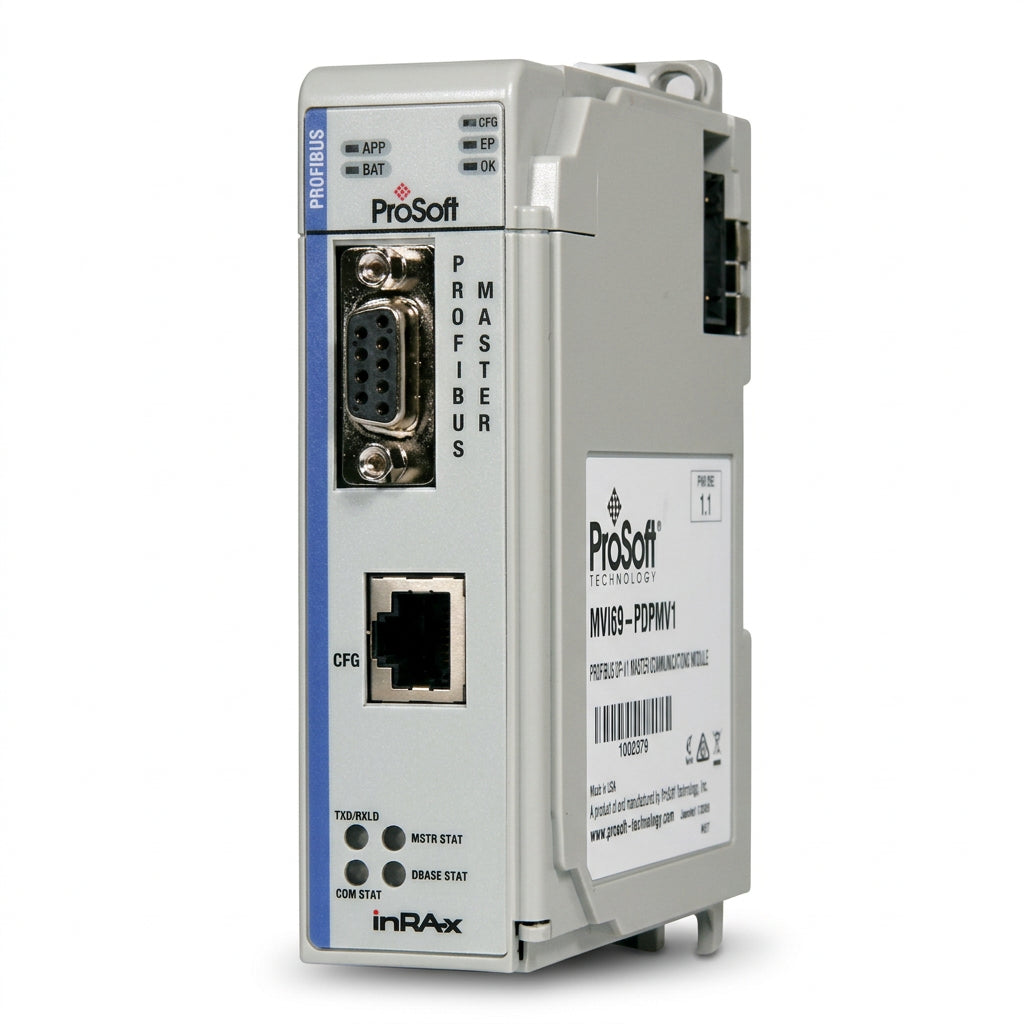

The ProSoft Technology MVI69-PDPMV1 is a single-slot 1769 backplane PROFIBUS DPV1 Master scanner module built for Rockwell CompactLogix and MicroLogix 1500 LRP controllers. It fully complies with IEC 61158, supporting PROFIBUS DP V0 cyclic I/O and DPV1 Class1/Class2 acyclic messaging for slave parameter access, diagnostics and asset management. It enables CompactLogix to control a complete PROFIBUS DP network of drives, remote I/O, sensors and valves. Technical data sourced from official ProSoft datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet Technical Parameters
| Technical Specifications | |
| Catalog Number | MVI69-PDPMV1 |
| Hardware Type | 1769 Single-Slot PROFIBUS DPV1 Master Scanner Module |
| Backplane Power | 800mA @ 5VDC, power supply distance rating 2 |
| PROFIBUS Interface | RS485, 9.6kbps ~12Mbps, auto baud detection |
| Supported Protocol | PROFIBUS DP V0 / DPV1 (IEC 61158) |
| Configuration Port | RJ45 RS232 CFG debug port, RJ45 to DB9 cable included |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C (32°F ~ +140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
The MVI69-PDPMV1 is legacy PROFIBUS DPV1 master scanner for Rockwell 1769 CompactLogix / MicroLogix 1500 LRP rack. It acts as a standard 1769 I/O module for the controller, using AOI ladder instructions to transfer tags between PLC and module database. The personality module stores the full PROFIBUS scan configuration to enable hot swap replacement without reconfiguring software. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: MVI69-PDPMV1 is ProSoft PROFIBUS DPV1 Master scanner communication module for Rockwell 1769 CompactLogix / MicroLogix 1500 LRP backplane.
A: MVI69-PDPMV1 is PROFIBUS DPV1 Master (scanner), controls DP slaves. MVI69-PDPS is DP V0 Slave, which joins existing PROFIBUS master network as a slave node.
A: It stores the full PROFIBUS scan list and module configuration. When replacing module on site, just transfer personality module to new unit without re-configuration.
