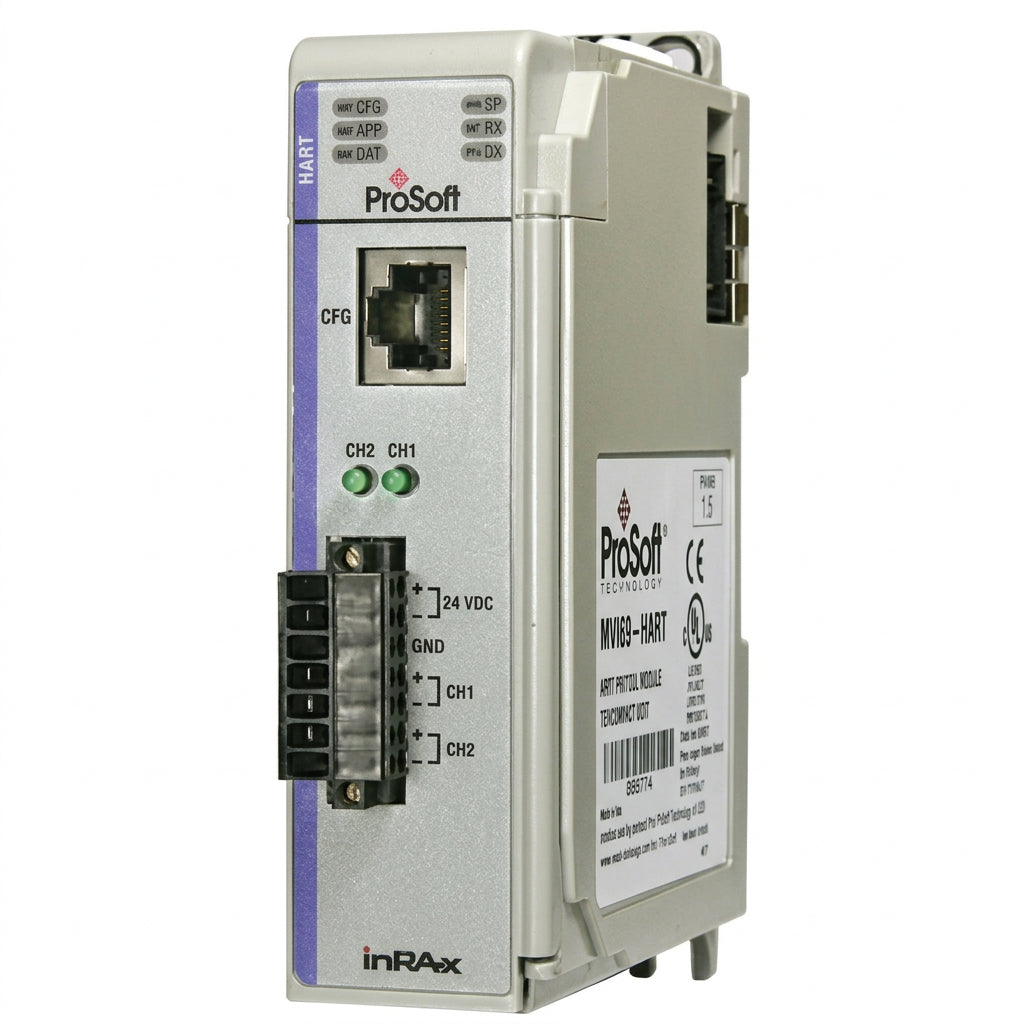

The ProSoft Technology MVI69-HART is a single-slot 1769 backplane HART multi-drop master communication module designed for Rockwell CompactLogix PAC and MicroLogix 1500 LRP controllers. It implements HART Bell 202 FSK protocol, superimposing digital data on standard 4-20mA analog signals, enabling CompactLogix to read process variables, device diagnostics, tag information and perform configuration for HART field transmitters. Technical data sourced directly from official ProSoft MVI69-HART datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet & User Manual Technical Parameters
| Technical Specifications | |
| Catalog Number | MVI69-HART |
| Hardware Type | 1769 Single-Slot HART Multi-drop Master Communication Module |
| Backplane Current Draw | 800mA @ 5.1 VDC |
| Power Supply Distance Rating | 2 |
| HART Physical Layer | Bell 202 FSK, 1200 baud, superimposed on 4-20mA analog loop |
| HART Protocol Revision | HART Version 5 |
| Configuration Debug Port | RJ45 RS232, supplied RJ45 to DB9M cable |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C (32°F ~ +140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
| Agency Certifications | |
| cULus | UL508, UL1604, Class I Div 2 Groups A,B,C,D T6 |
| ATEX | II 3 G Ex nA IIC T6 X |
| Compliance | CE, RoHS |
The MVI69-HART is legacy HART multi-drop master module for Rockwell 1769 CompactLogix / MicroLogix 1500 LRP rack. It appears as standard 1769 I/O module to PLC processor, uses AOI to map HART instrument data into controller tags. Not compatible with 1769-L23E-QBFC1B, 1769-L16x, 1769-L18x processors. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: MVI69-HART is ProSoft HART multi-drop master communication module for Rockwell 1769 CompactLogix / MicroLogix 1500 LRP backplane.
A: HART protocol Revision 5, Bell 202 FSK 1200 baud, works on standard 4-20mA analog loops.
A: 1769-L23E-QBFC1B, 1769-L16x and 1769-L18x controllers cannot work with MVI69-HART.
A: Yes, Class I Div 2 T6 and ATEX II 3G Ex nA IIC T6 X certified for non-incendive hazardous area installation.
