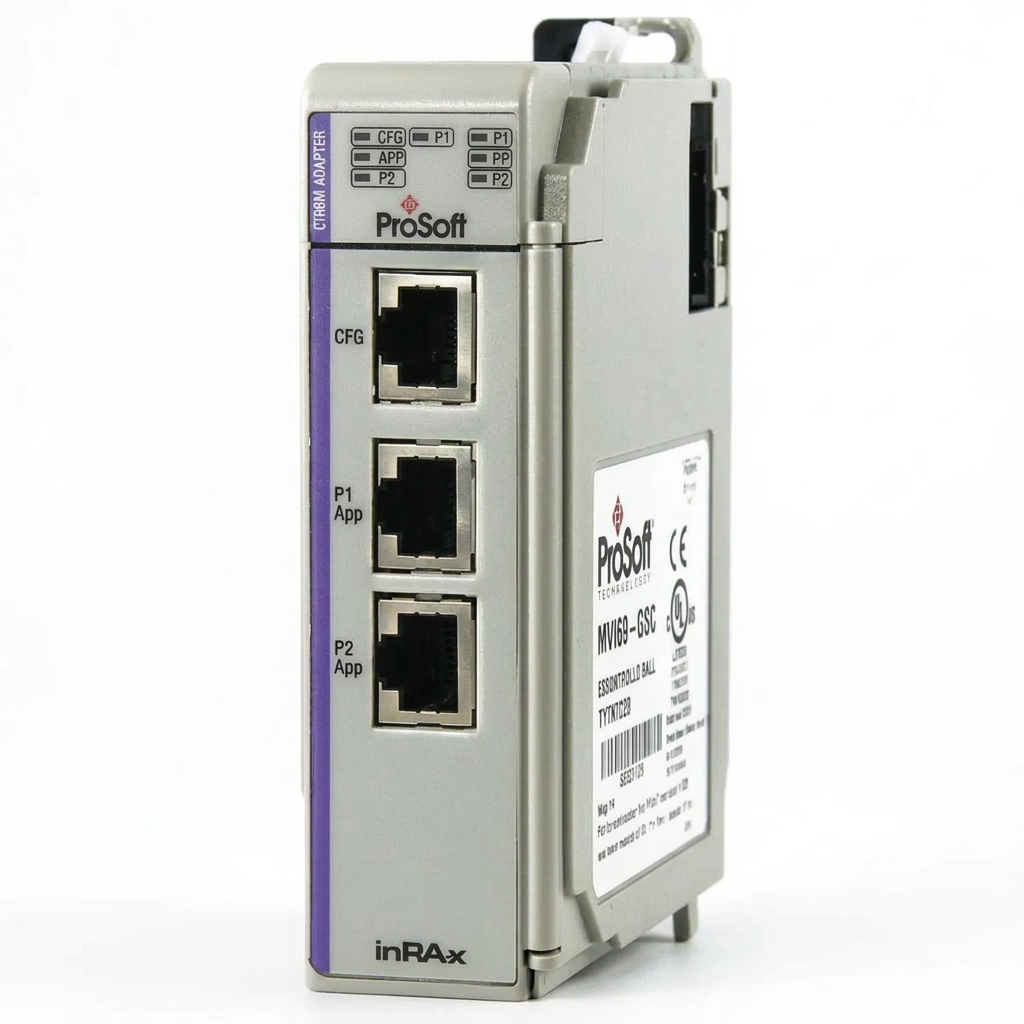

MVI69-GSC ProSoft Generic ASCII Serial Communication Module for 1769 CompactLogix

The ProSoft Technology MVI69-GSC is a single-slot 1769 backplane generic ASCII serial communication module for Rockwell CompactLogix PAC and MicroLogix 1500 LRP controllers. It provides two fully configurable serial ports for sending/receiving ASCII strings, integrating barcode scanners, serial printers, weighing indicators, serial instruments and custom ASCII devices into Logix controller systems. Technical data sourced directly from official ProSoft MVI69-GSC datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: MVI69-GSC
  • Product Family: MVI69 Series for 1769 CompactLogix
  • Primary Function: Generic ASCII Serial Communication Module, dual configurable serial ports
  • Backplane: Single slot 1769 CompactLogix / MicroLogix 1500 LRP chassis mounting (Excludes 1769-L23E-QBFC1B, 1769-L16x, 1769-L18x)
  • Application Ports P1 & P2: RS232 / RS422 / RS485 jumper-selectable, RJ45 connector, 500V optical isolation from backplane
  • CFG Debug Port: RJ45 RS232 configuration port, no hardware handshaking; RJ45 to DB9M cables included
  • Serial Parameters: Baud rate 110~115200 bps; data bits 5-8; stop bits 1/2; parity none/odd/even; RTS delay configurable
  • Message Control: Termination characters, message timeout, inter-character delay, packet size limit configurable
  • Configuration: Text configuration file download, ProSoft Configuration Builder, Add-On Instruction (AOI) & sample ladder logic included
  • LED Status: Power, Module Status (OK), Application (APP), Serial Port Activity & CFG Port Activity LEDs
  • Certifications: cULus UL508 / UL1604, Class I Div 2 Groups A,B,C,D T6; ATEX II 3G Ex nA IIC T6 X, CE RoHS compliant
  • Lifecycle: Discontinued OEM production, aftermarket spare part only
  • Typical Use: Connect CompactLogix to barcode readers, weighing scales, serial printers, lab instruments and custom ASCII serial devices

Specifications

Official Datasheet & User Manual Technical Parameters

Technical Specifications
Catalog Number MVI69-GSC
Hardware Type 1769 Single-Slot Generic ASCII Serial Communication Module
Backplane Current Draw 800mA @ 5.1 VDC
Power Supply Distance Rating 2
Application Serial Ports 2 ports, jumper selectable RS232 / RS422 / RS485, 500V optical isolation
Baud Rate Range 110 ~ 115200 bps
Data / Stop / Parity Data bits:5~8; Stop bits:1 or 2; Parity: None / Odd / Even
Environmental Ratings
Operating Temperature 0°C ~ +60°C (32°F ~ +140°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing
Agency Certifications
cULus UL508, UL1604, Class I Div 2 Groups A,B,C,D T6
ATEX II 3 G Ex nA IIC T6 X
Compliance CE, RoHS

Compatibility & Cross-References

The MVI69-GSC is legacy generic ASCII serial module for Rockwell 1769 CompactLogix / MicroLogix 1500 LRP rack. It is recognized as a standard 1769 I/O module by the PLC processor, AOI instructions map ASCII string data between module buffer and controller tags. Not compatible with 1769-L23E-QBFC1B, 1769-L16x, 1769-L18x CPUs. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Integrate serial ASCII devices into CompactLogix control system without consuming PLC front communication port
  • Barcode scanners, weight indicators, serial printers, test instruments, custom RS232/485 serial equipment
  • Bidirectional transmission and reception of variable-length ASCII strings with configurable framing rules
  • Factory automation, packaging machinery, material handling, legacy serial equipment retrofit and spare replacement

Warranty

  • Availability: MVI69-GSC discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part MVI69-GSC is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is MVI69-GSC?

A: MVI69-GSC is ProSoft dual-port generic ASCII serial communication module for Rockwell 1769 CompactLogix / MicroLogix 1500 LRP backplane.

Q: What serial interfaces are supported?

A> Two application ports, jumper selectable RS232 / RS422 / RS485; separate RS232 CFG debug port.

Q: What software configures this module?

A: ProSoft Configuration Builder for serial framing setup; RSLogix5000 / Studio5000 with supplied AOI and sample ladder logic.

Q: Which CPUs are incompatible?

A: 1769-L23E-QBFC1B, 1769-L16x and 1769-L18x controllers cannot be used with MVI69-GSC.
