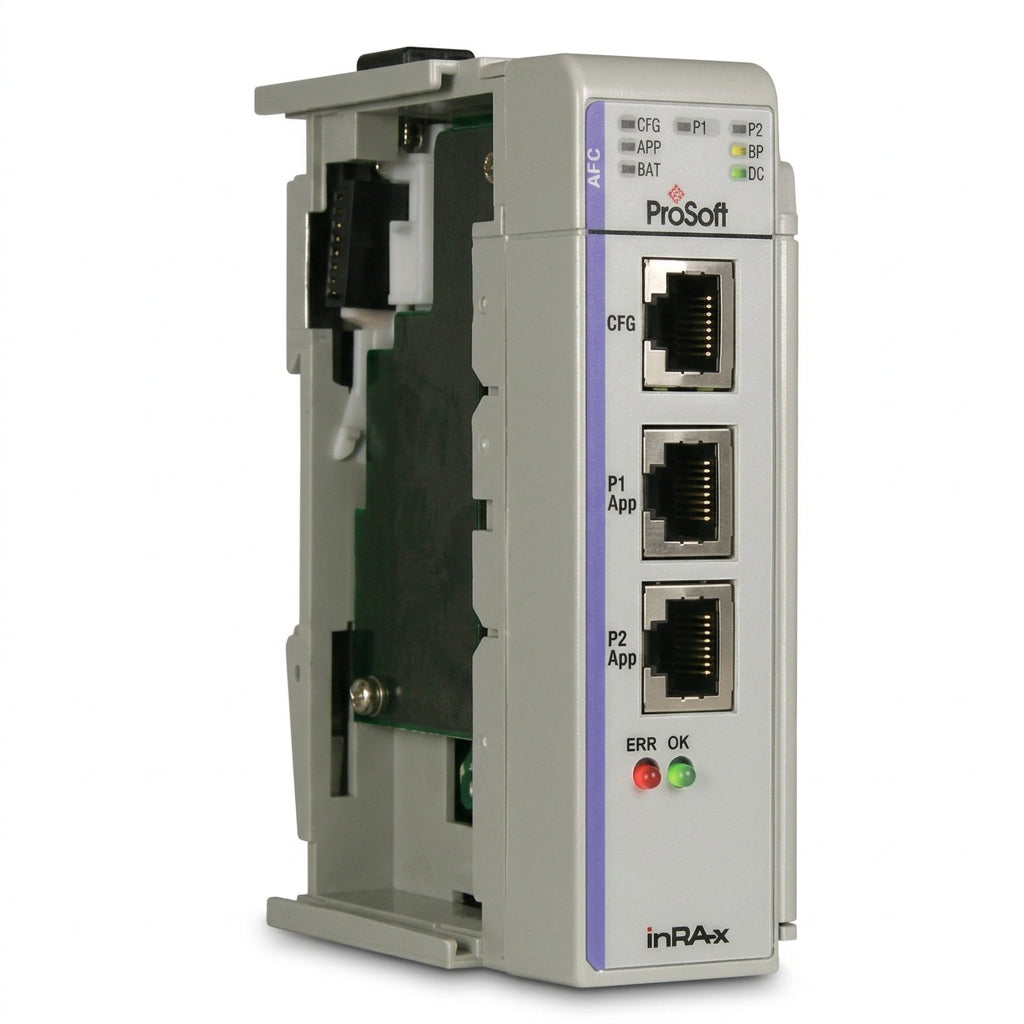

The ProSoft Technology MVI69-AFC is a single-slot 1769 backplane flow computer module for Rockwell CompactLogix PAC and MicroLogix 1500 LRP controllers. It performs custody-transfer grade gas and liquid flow calculations, supports Modbus TCP and serial Modbus master/slave communication, event logging and hourly/daily flow archives. Technical data sourced directly from official ProSoft MVI69-AFC datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet & User Manual Technical Parameters
| Technical Specifications | |
| Catalog Number | MVI69-AFC |
| Hardware Type | 1769 Single-Slot Gas & Liquid Flow Computer Module |
| Backplane Current Draw | 800mA @ 5.1 VDC |
| Power Supply Distance Rating | 2 |
| Ethernet Port | 10/100 Base-T RJ45, Modbus TCP Server |
| Serial Ports | 2 ports, jumper selectable RS232/RS422/RS485, Modbus master/slave configurable |
| Metering Feature | Custody transfer calculation, lockout jumper for metering parameter sealing |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C (32°F ~ +140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
| Agency Certifications | |
| Certifications | cULus, ATEX II 3G Ex nA IIC T6 X, DNV, CE, CB Safety, GOST-R, RoHS |
The MVI69-AFC is legacy flow computer module for Rockwell 1769 CompactLogix / MicroLogix 1500 LRP rack. It appears as standard 1769 I/O module to PLC processor, AOI instructions map flow data, archive records and alarms between module and CompactLogix controller tags. Not compatible with 1769-L23E-QBFC1B, 1769-L16x, 1769-L18x CPUs. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: MVI69-AFC is ProSoft gas and liquid flow computer module for Rockwell 1769 CompactLogix / MicroLogix1500 LRP backplane, designed for custody transfer metering.
A: 10/100 Ethernet Modbus TCP server, plus two configurable RS232/422/485 serial ports for Modbus master/slave.
A: Event alarms, hourly and daily flow archives, audit snapshots; data exportable to CSV and Flow-Cal CFX format.
A: 1769-L23E-QBFC1B, 1769-L16x and 1769-L18x controllers cannot be used with MVI69-AFC.
MVI69-AFC · Technical reference data · Independently supplied by SHLY-PLC
