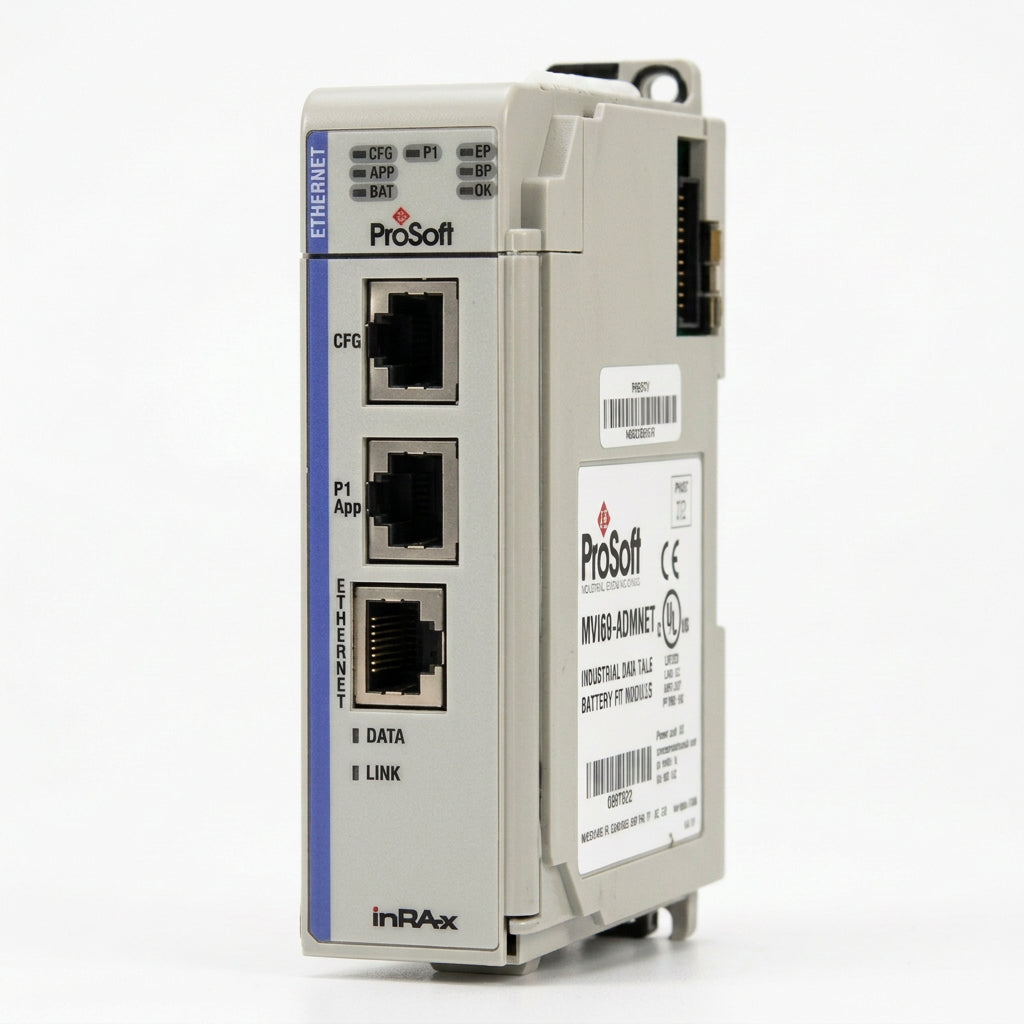

The ProSoft Technology MVI69-ADMNET is a single-slot programmable application development module with built-in Ethernet port for Rockwell CompactLogix PAC and MicroLogix 1500 LRP controllers. It enables custom C-language programming to implement proprietary protocols, custom data processing, protocol conversion and specialized industrial gateway functions. Technical data sourced directly from official ProSoft MVI69-ADMNET datasheet & developer guide. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet & Developer Guide Technical Parameters
| Technical Specifications | |
| Catalog Number | MVI69-ADMNET |
| Hardware Type | 1769 Single-Slot Programmable C Application Module with Ethernet |
| Backplane Current Draw | 800mA @ 5.1 VDC |
| Power Supply Distance Rating | 2 |
| Ethernet | 10/100 Base-T, RJ45, user-programmable TCP/UDP stack |
| Serial Ports | 2 ports, jumper selectable RS232/RS422/RS485, fully controlled by custom C code |
| Programming Language | ANSI C, compiled user application firmware |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C (32°F ~ +140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
| Agency Certifications | |
| cULus | UL508, UL1604, Class I Div 2 Groups A,B,C,D T6 |
| ATEX | II 3 G Ex nA IIC T6 X |
| Compliance | CE, RoHS |
The MVI69-ADMNET is legacy programmable application module for Rockwell 1769 CompactLogix / MicroLogix 1500 LRP rack. It appears as standard 1769 I/O module to PLC processor, AOI instructions handle data mapping between custom module application and CompactLogix controller tags. Not compatible with 1769-L23E-QBFC1B, 1769-L16x, 1769-L18x processors. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: MVI69-ADMNET is ProSoft programmable ANSI C application development module with Ethernet port for 1769 CompactLogix / MicroLogix1500 LRP, used to build custom protocol gateways.
A: One 10/100 Base-T RJ45 Ethernet port plus two configurable RS232/422/485 serial ports, fully controllable by user C code.
A: MVI69-ADMNET adds onboard Ethernet, while MVI69-ADM only has dual serial ports without built-in Ethernet.
A: 1769-L23E-QBFC1B, 1769-L16x and 1769-L18x controllers cannot be used with MVI69-ADMNET.
