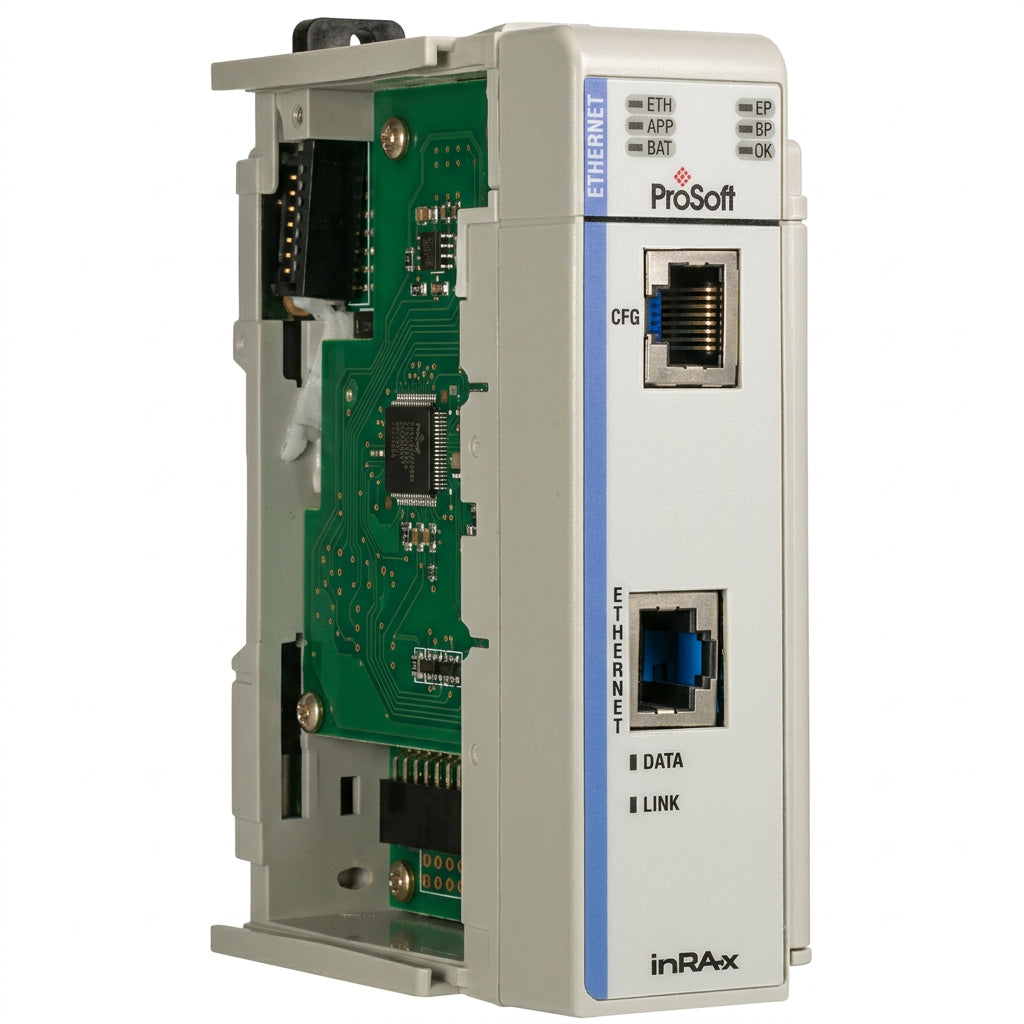

The ProSoft Technology MVI69-104S is a single-slot IEC 60870-5-104 Server communication module designed for Rockwell 1769 CompactLogix and MicroLogix 1500 LRP controllers. It enables PLC systems to communicate with IEC 104 client masters over Ethernet, widely used in power utility, substation automation and energy monitoring applications. Technical data sourced directly from official ProSoft MVI69-104S datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet & User Manual Technical Parameters
| Technical Specifications | |
| Catalog Number | MVI69-104S |
| Hardware Type | 1769 Single-Slot IEC 60870-5-104 Server Ethernet Module |
| Backplane Current Draw | 800mA @ 5.1 VDC |
| Power Supply Distance Rating | 2 |
| Ethernet | 10/100 Base-T, RJ45, TCP/IP, IEC 60870-5-104 Server |
| Protocol Role | IEC 104 Server (Slave), responds to IEC104 Client (Master) |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C (32°F ~ +140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
| Agency Certifications | |
| cULus | UL508, UL1604, Class I Div 2 Groups A,B,C,D T6 |
| ATEX | II 3 G Ex nA IIC T6 X |
| Compliance | CE, RoHS |
The MVI69-104S is legacy IEC104 server communication module for Rockwell 1769 CompactLogix / MicroLogix 1500 LRP rack. It appears as standard 1769 I/O module to PLC processor, AOI instructions handle data mapping between IEC104 point database and CompactLogix controller tags. Not compatible with 1769-L23E-QBFC1B, 1769-L16x, 1769-L18x processors. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: MVI69-104S is ProSoft IEC 60870-5-104 Server Ethernet communication module for 1769 CompactLogix / MicroLogix1500 LRP, used for power grid SCADA communication.
A: IEC 60870-5-104, working as Server (slave), connects to IEC104 Client / SCADA Master over Ethernet TCP/IP.
A: Power & utility sector, substation automation, electrical distribution monitoring, energy SCADA system.
A: 1769-L23E-QBFC1B, 1769-L16x and 1769-L18x controllers cannot be used with MVI69-104S.
