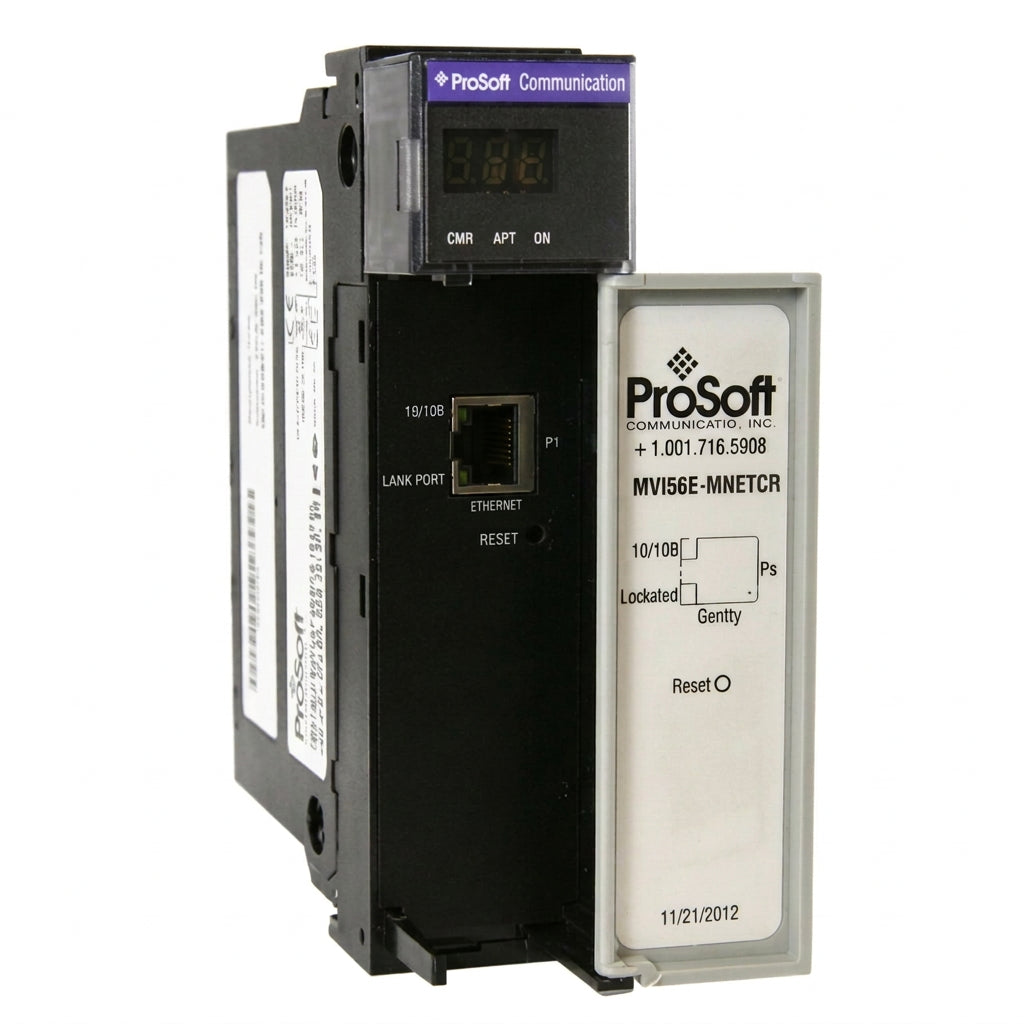

The ProSoft Technology MVI56E-MNETCR is single-slot Modbus TCP/IP multi-client enhanced communication module for Rockwell 1756 ControlLogix PAC. It features reduced data block design optimized for remote chassis installation, supports up to 30 Modbus TCP client connections to read/write multiple Modbus TCP server field instruments and controllers. Technical data sourced directly from official ProSoft MVI56E-MNETCR datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet & User Manual Technical Parameters
| Technical Specifications | |
| Catalog Number | MVI56E-MNETCR |
| Hardware Type | 1756 Single-Slot Modbus TCP Multi-Client Module, Reduced Data Block for Remote Chassis |
| Backplane Current Draw | 800mA @ 5.1 VDC, 3mA @24VDC |
| Ethernet | 10/100 Base-T, RJ45, auto crossover detection |
| Max Client Connections | 30 Modbus TCP Client connections |
| Register Mapping | Up to 5000 16-bit user registers |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C (32°F ~ +140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
| Shock / Vibration | 30g operational /50g non-operational; 5g vibration 10Hz~150Hz |
| Agency Certifications | |
| cULus | UL508, Class I Div 2 Groups A,B,C,D T5 |
| ATEX | II 3 G Ex nA nL IIC T5 X |
| Compliance | CE, RoHS |

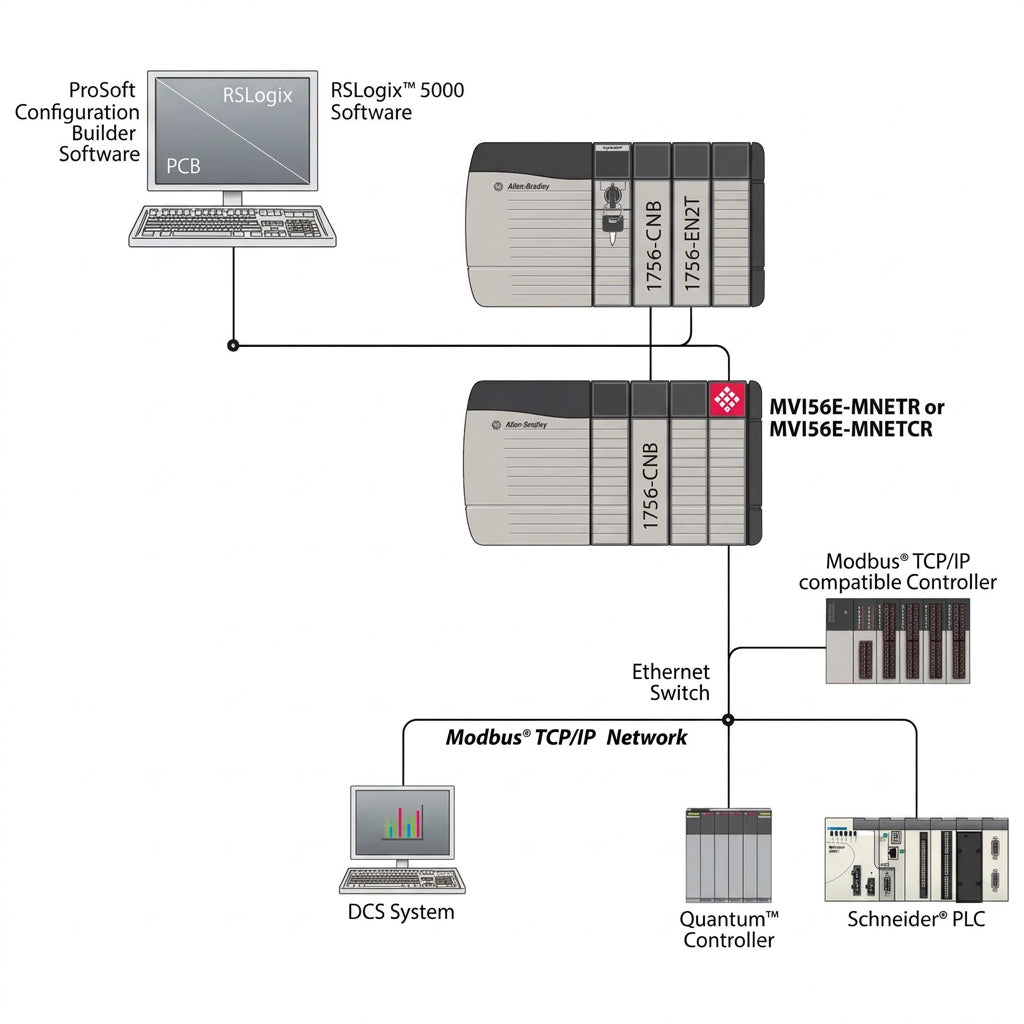

The MVI56E-MNETCR is legacy remote chassis optimized Modbus TCP multi-client module for Rockwell 1756 ControlLogix rack. It appears as standard 1756 I/O module to ControlLogix processor, AOI instructions handle data mapping between Modbus register database and controller tags. Reduced I/O data block minimizes backplane traffic for remote rack deployments. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: MVI56E-MNETCR is ProSoft Modbus TCP/IP multi-client communication module with reduced data block, designed for 1756 ControlLogix remote chassis installation.
A: MVI56E-MNETC uses full data block; MVI56E-MNETCR adopts reduced I/O data block, optimized for remote rack deployments to lower backplane load.
A: Up to 30 Modbus TCP client connections to communicate with multiple Modbus TCP server field devices simultaneously.
A: Removable CF card stores full module configuration, allows quick replacement in field by simply moving CF card to new module.
MVI56E-MNETCR · Technical reference data · Independently supplied by SHLY-PLC
