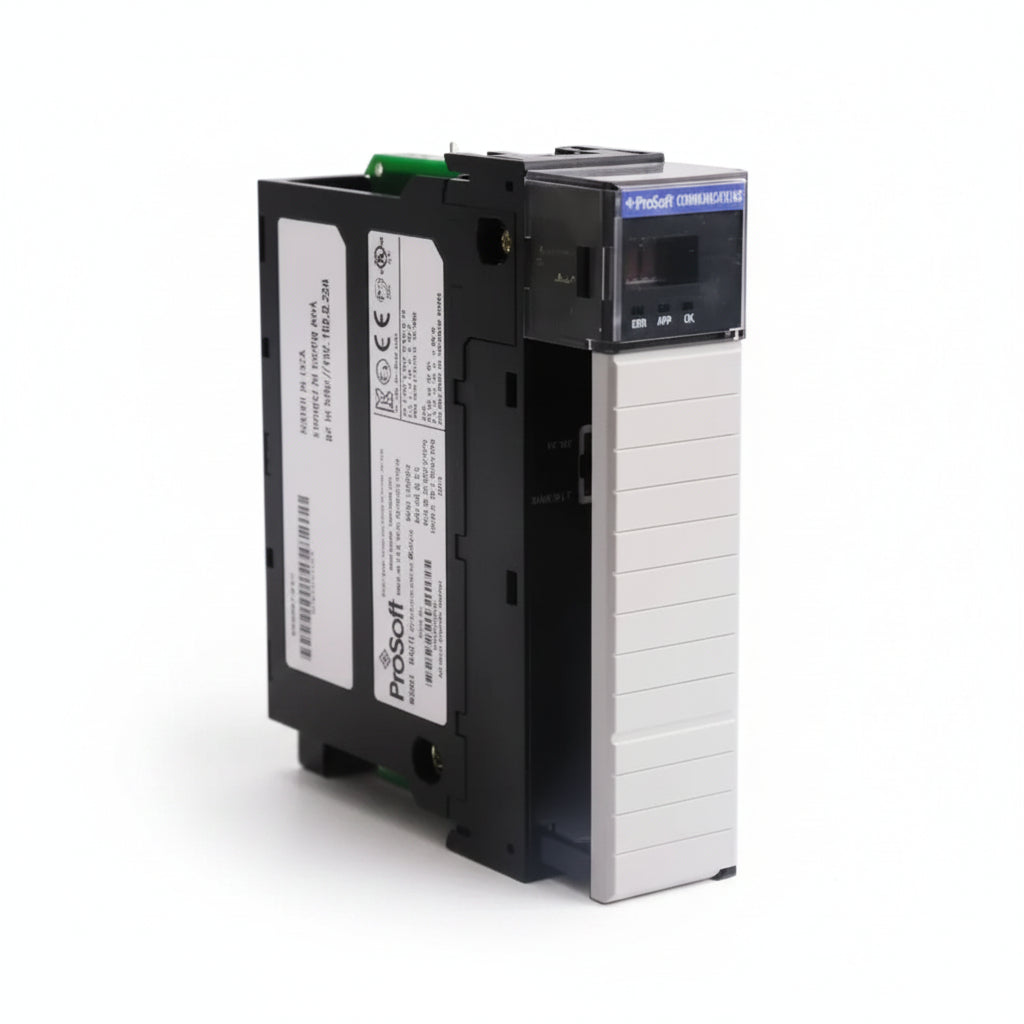

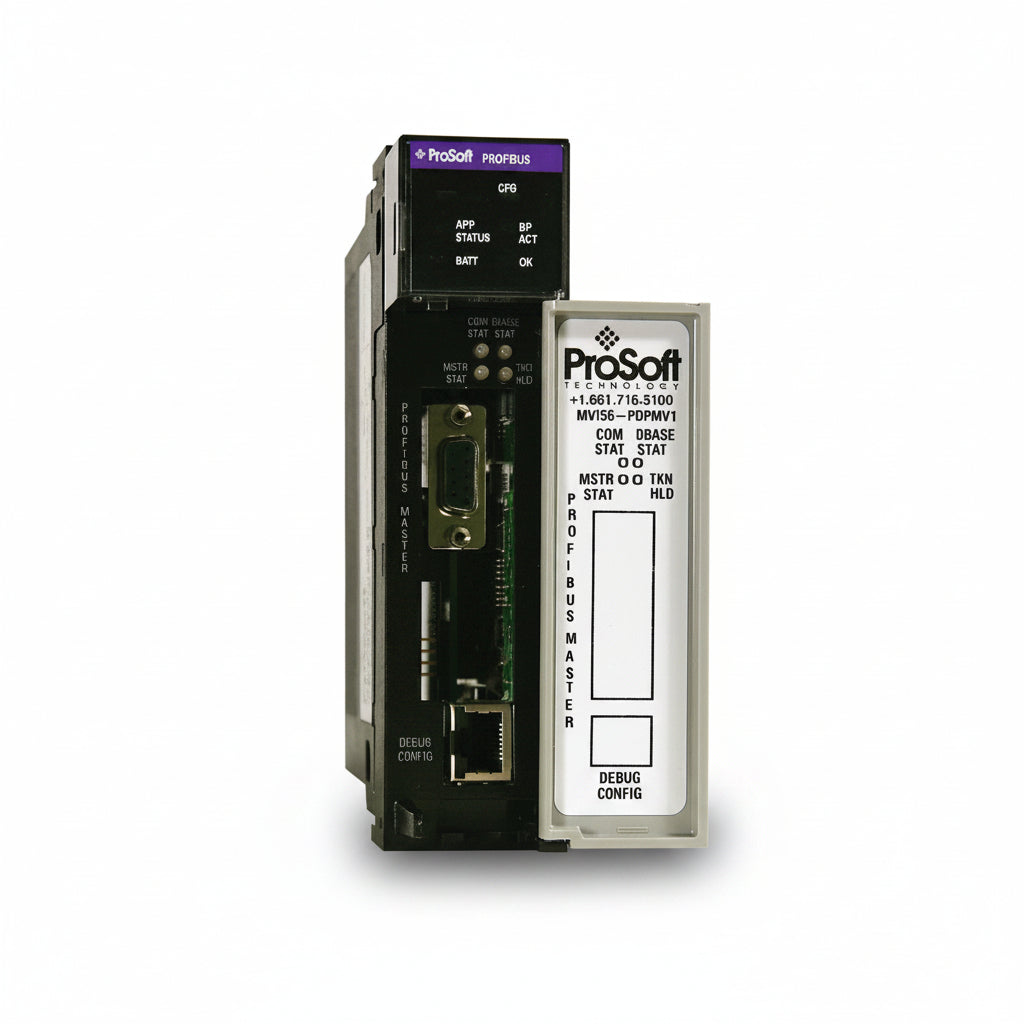

The ProSoft MVI56-PDPMV1 is a communication module for industrial automation and control systems. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Key Specifications | |
| Platform | Rockwell Automation ControlLogix® (1756 backplane) |
| Baud Rate | Up to 12 Mbps, auto-baud detection |
| Max Slaves | Up to 125 (with repeaters) |
| Backplane Current | 800 mA @ 5 VDC / 3 mA @ 24 VDC |
| Operating Temp | 0°C to 60°C |
| Storage Temp | -40°C to 85°C |
| I/O Data | 1536 bytes input / 1536 bytes output |
| PROFIBUS Port | DB-9F, optically isolated RS-485 |
| Type Designation | |
| Order code | MVI56-PDPMV1 |
| Product family / base order code | MVI56 |
| Version / revision suffix | PDPMV1 |
| General | |
| Platform | Rockwell Automation ControlLogix® (1756 backplane) |
| Slot Type | Single slot, local or remote rack |
| Module Type | Input/Output module, ladder logic data transfer |
| Sample Ladder | Add-on instruction included |
| PROFIBUS Master | |
| Protocol | PROFIBUS DPV0 / DPV1 Master (IEC 61158) |
| Baud Rate | Up to 12 Mbps, auto-baud detection |
| Max Slaves | Up to 125 (with repeaters) |
| I/O Data | 1536 bytes input / 1536 bytes output |
| DPV1 Services | Acyclic read/write, alarm handling, multicast/broadcast |
| Extended Diagnostics | Supported |
| PROFIdrive | Version 3.1 parameter read/write |
| Commands | Sync, Freeze |
| Ports & Interfaces | |
| PROFIBUS Port | DB-9F, optically isolated RS-485, on-board DC-DC converter |
| PROFIBUS LEDs | Ready, Run, Error, Token |
| Configuration Port | RJ45 (DB-9M with cable), RS-232 only |
| Ethernet Routing | CIPConnect® via 1756-ENBT / 1756-EN2T |

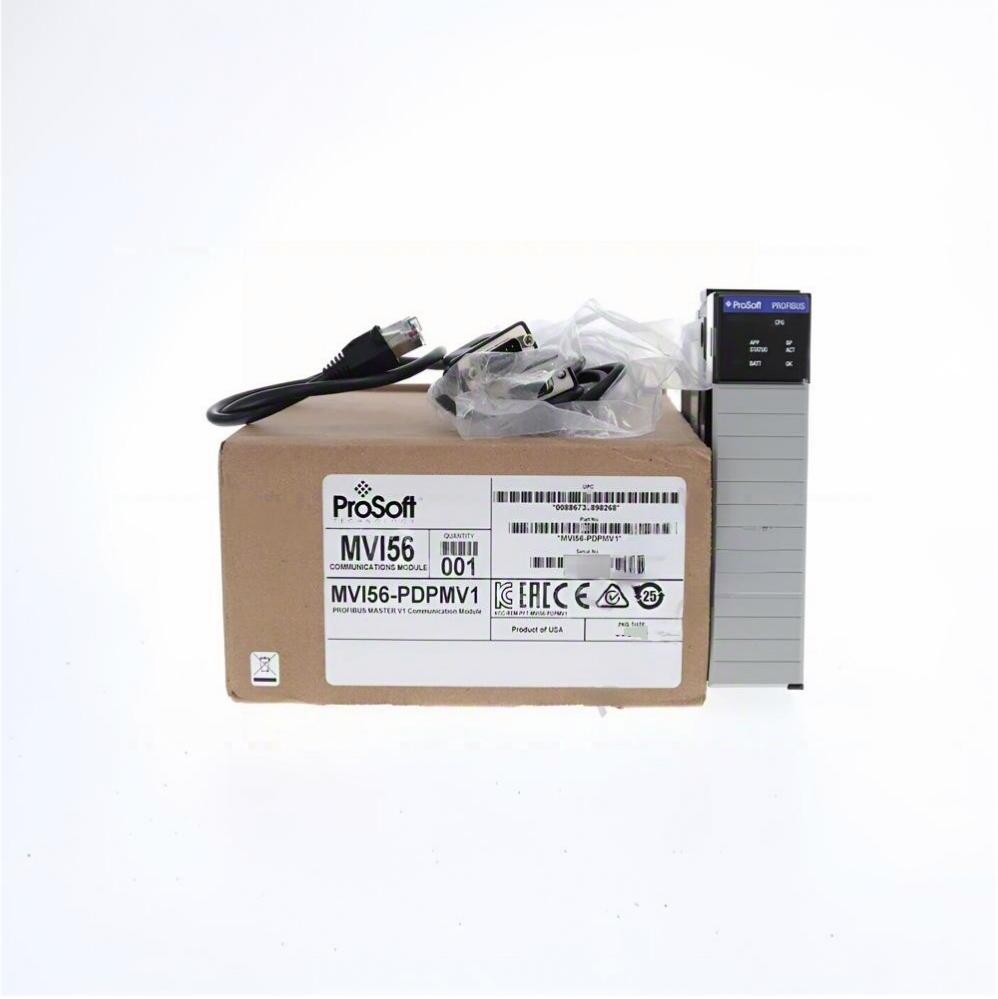

| Shipped Cables | RJ45 to DB-9M for each port; 6-foot RS-232 config cable |
| Power Supply | |
| Backplane Current Load | 800 mA @ 5 VDC |
| Backplane Current Load | 3 mA @ 24 VDC |
| Mechanical & Environmental | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Shock | 30 g operational / 50 g non-operational |
| Vibration | 5 g from 10 Hz to 150 Hz |
| Relative Humidity | 5% to 95% (no condensation) |
| LED Indicators | Module Status, Backplane Transfer, Application Status, Serial Activity/Error |
| Software & Configuration | |
| Configuration Software | ProSoft Configuration Builder (PCB), drag-and-drop Busview |
| FDT/DTM | PROFIBUS comDTM included (PSW-CDTM-PDPM) |
| GSD File | Project-unique GSD import library |
| Online Diagnostics | Slave diagnostics, process data monitoring, DPV1 acyclic data |
| Auto Features | Auto bus parameter calculation, automatic project documentation |
| Compliance, Approvals & Standards | |
| Product approvals | CE, UKCA, UL/cUL, RoHS |
| EMC | EN 61000-6-x / EN 55011 (industrial environment) |
| Safety standard | IEC/EN 61131 / 61800 / 60947 (product-specific) |
