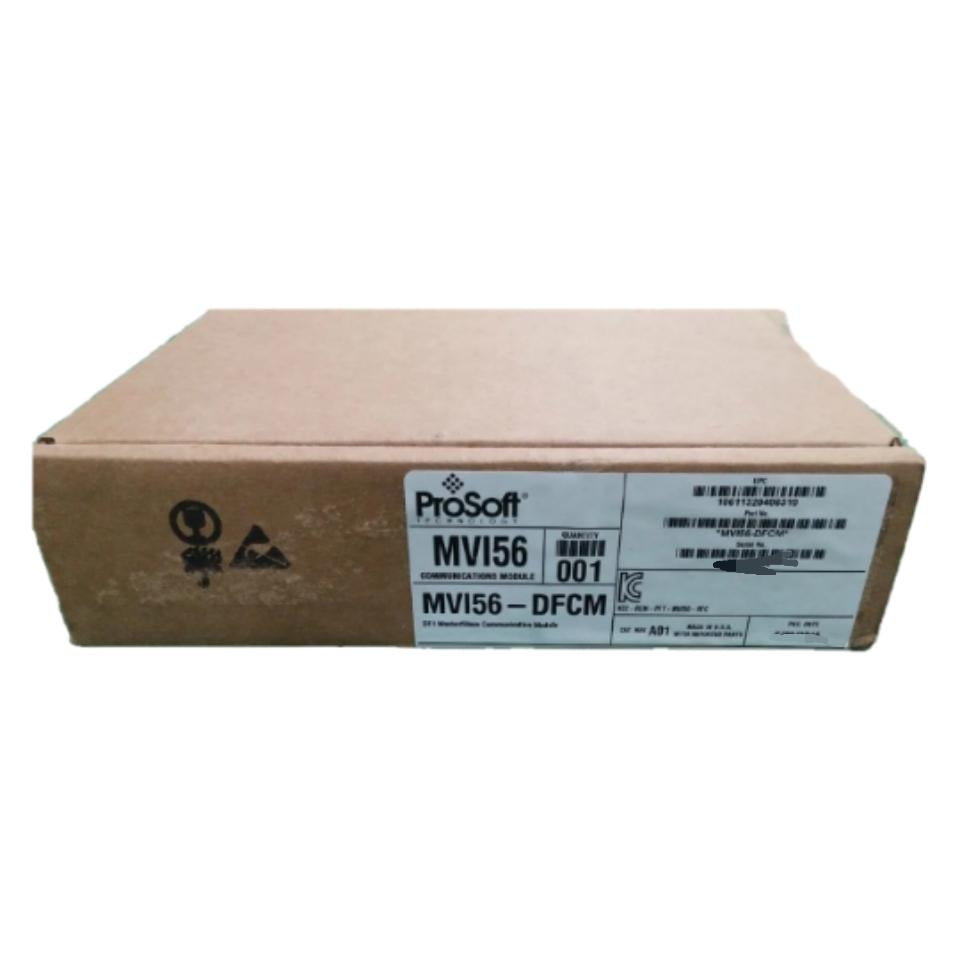

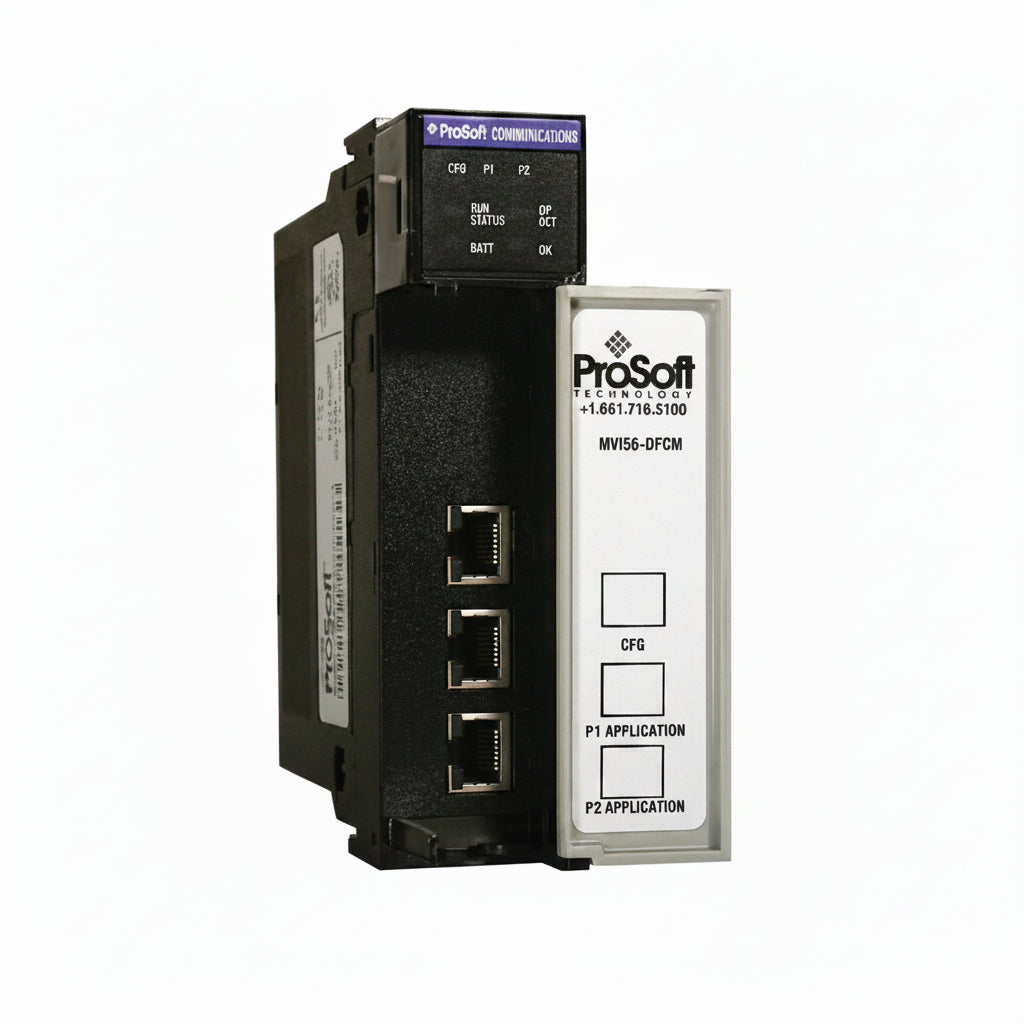

ProSoft Technology MVI56-DFCM Communication Module

SKU: MVI56-DFCM
(0)
$1,758.00
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

The ProSoft MVI56-DFCM is a communication module for industrial automation and control systems. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Key Specifications
EtherNet/IP Description
Connector RJ45
Conductors CAT5 STP/UTP
ARP Connections Max 20
TCP Connections Max 20
CIP Connections Max 10
Duplex Mode Full / Half / Auto-Negotiate
Auto MDIX Yes
Type Designation
Order code MVI56-DFCM
Product family / base order code MVI56
Version / revision suffix DFCM
Power Supply
Power Requirements Input: 10 to 28 VDC,(70 mA @ 24 VDC / 130 mA @ 10 VDC)
Power Consumption 1.7 W
Power Connector 3-way terminal
Ports & Connections
EtherNet/IP Description
ARP Connections Max 20
TCP Connections Max 20
CIP Connections Max 10
Slave Mode Message Support PLC-5 Typed Read, PLC-5 Typed Write, SLC Typed Read, SLC Typed Write, PLC-2 Unprotected Read, PLC-2 Unprotected Write, PLC-2 Unprotected Bit Write
Scheduled Tag Mode Message Support (Master) PLC-5 Typed Read, PLC-5 Typed Write, SLC Typed Read, SLC Typed Write
Earth Connection Yes, terminal based
Features & Protocols
Duplex Mode Full / Half / Auto-Negotiate
Protocol DF1 Full Duplex, DF1 Half Duplex, DF1 Radio Modem
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Bridge Mode Mapping Max 20 routes; Max 8 controllers
Slave Mode Mapping Max 20 routes
Slave Mode Message Support PLC-5 Typed Read, PLC-5 Typed Write, SLC Typed Read, SLC Typed Write, PLC-2 Unprotected Read, PLC-2 Unprotected Write, PLC-2 Unprotected Bit Write
Scheduled Tag Mode Message Support (Master) PLC-5 Typed Read, PLC-5 Typed Write, SLC Typed Read, SLC Typed Write
Mechanical & Environmental
Enclosure Plastic
Enclosure Rating IP20, NEMA/UL Open Type
Dimensions (H x W x D) 101.0 x 22.5 x 120.0 mm
Temperature -20°C to 70°C
Compliance, Approvals & Standards
Product approvals CE, UKCA, UL/cUL, RoHS
EMC EN 61000-6-x / EN 55011 (industrial environment)
Safety standard IEC/EN 61131 / 61800 / 60947 (product-specific)

Compatibility & Cross-References

  • EtherNet/IP: Description
  • Connector: RJ45
  • Power Connector: 3-way terminal
  • Protocol: DF1 Full Duplex, DF1 Half Duplex, DF1 Radio Modem
  • Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
  • Cross-references: send your existing part number or application and our technical team confirms fitment, protocol and wiring before you order.

Applications

  • The ProSoft MVI56-DFCM is widely used to connect field I/O and serial devices to Ethernet and fieldbus control networks.
  • Typical uses include protocol linking, device-level data acquisition and SCADA/HMI integration.
  • It is deployed on conveyor lines, process skids and remote I/O stations where line topology reduces switching hardware.
  • Engineers also specify it for machine retrofits and as a network interface between legacy and modern controls.

Ordering, Delivery & Warranty

  • Availability: Worldwide shipping.
  • Delivery: Orders are processed within 2-4 business days after payment confirmation; worldwide delivery typically takes 5-8 business days, express service is available and shipping is free on orders over $500.
  • Condition & testing: Each unit is visually inspected and functionally checked before dispatch and packaged for protective international transit.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft part MVI56-DFCM is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the MVI56-DFCM supplied in?

A: Each MVI56-DFCM is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the MVI56-DFCM ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the MVI56-DFCM?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
